Aluminum Oil Pan Sump 4.22 quarts (4.0L) for VW 1.8 2.0 8V 16V

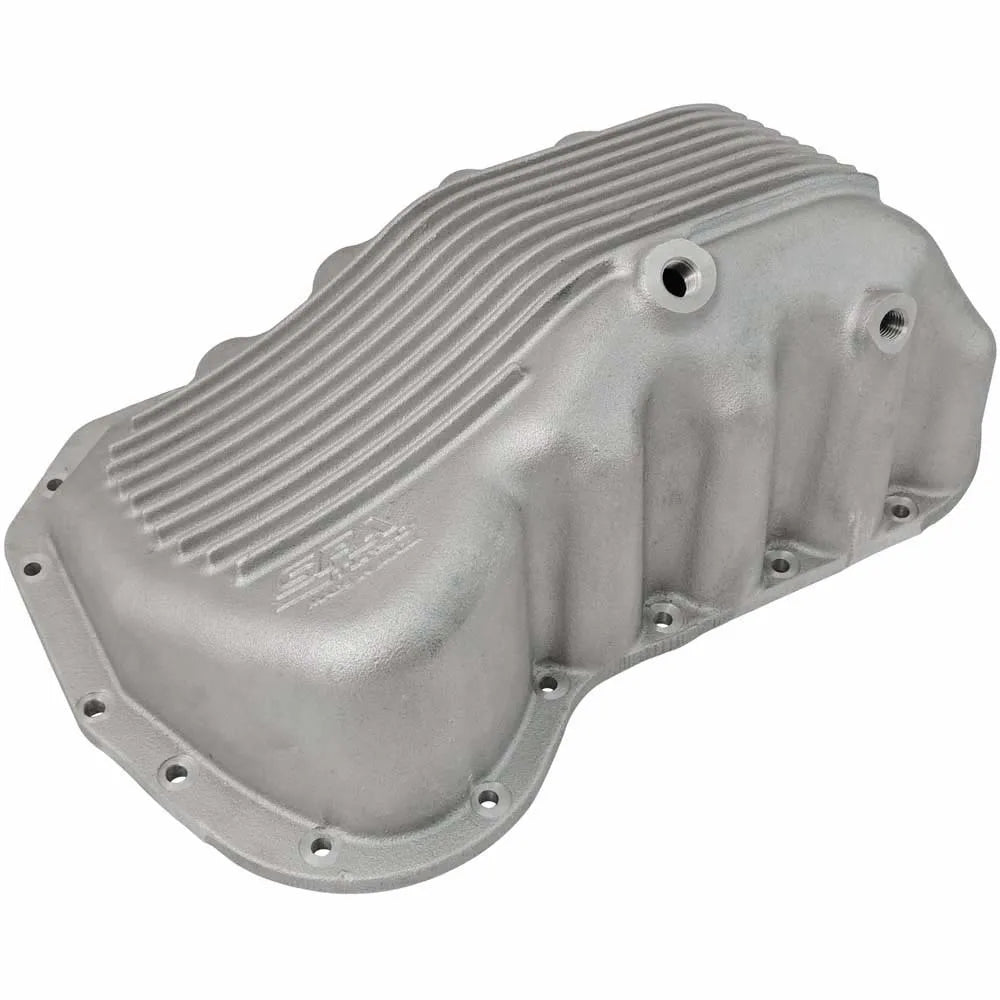

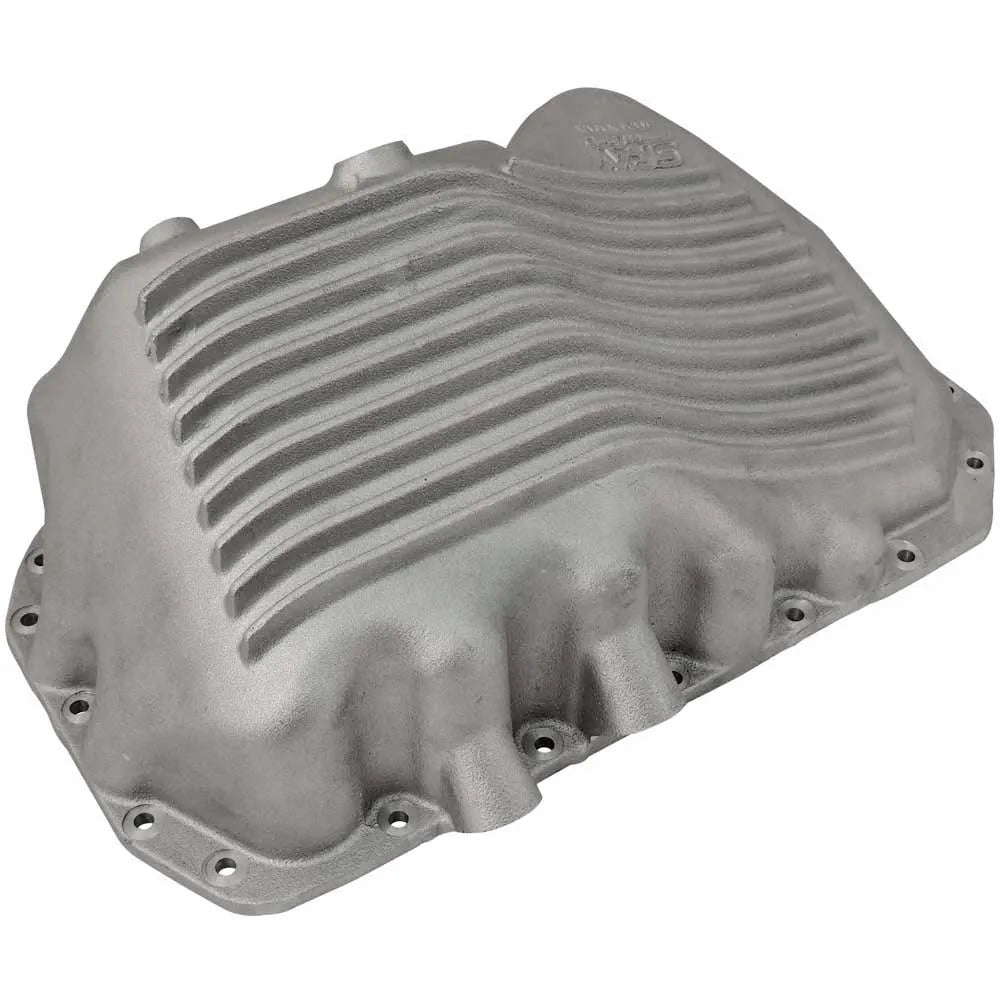

Always with evolution of high performance in mind, SPA Performance brings to the market the aluminum oil pan for VW 8V and 16V longitudinal engines. Made in cast aluminum, which eliminates the need for welding, it ensures strength and lightness, as well as perfect heat exchange due to its design, that features fins to dissipate heat.

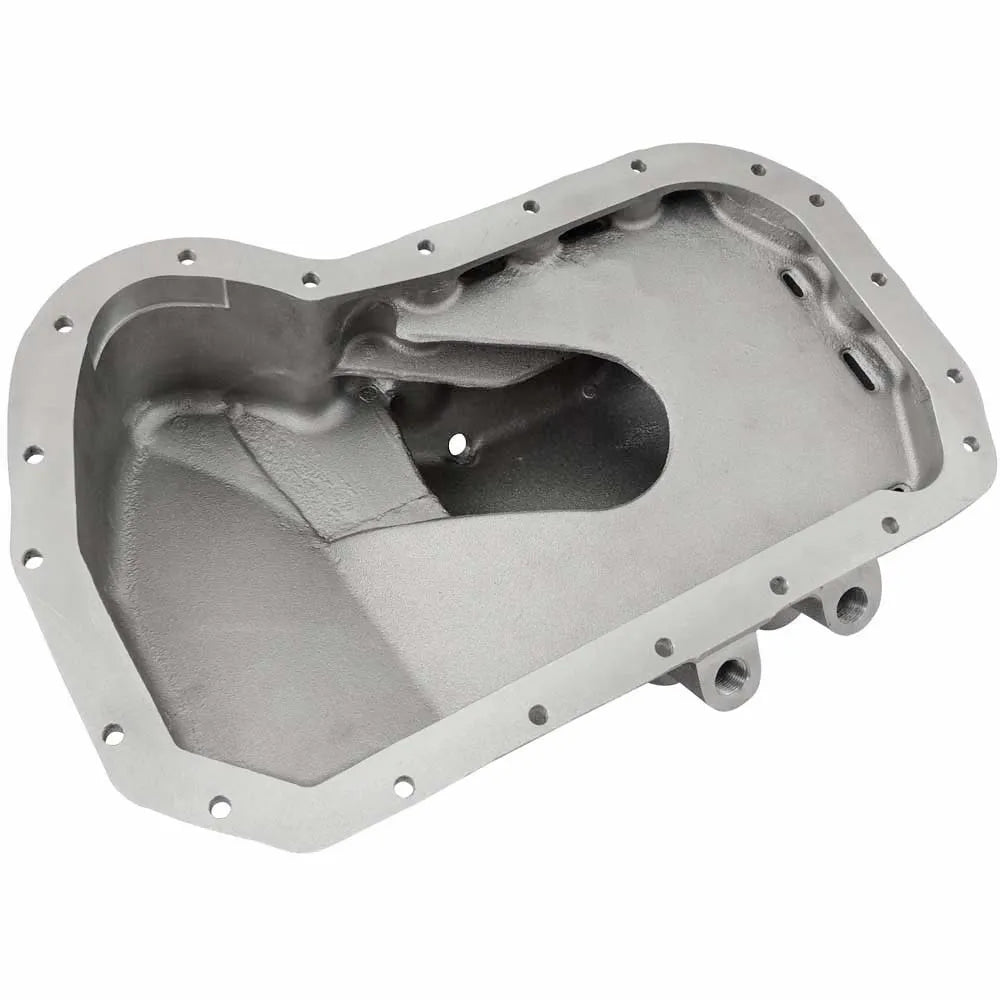

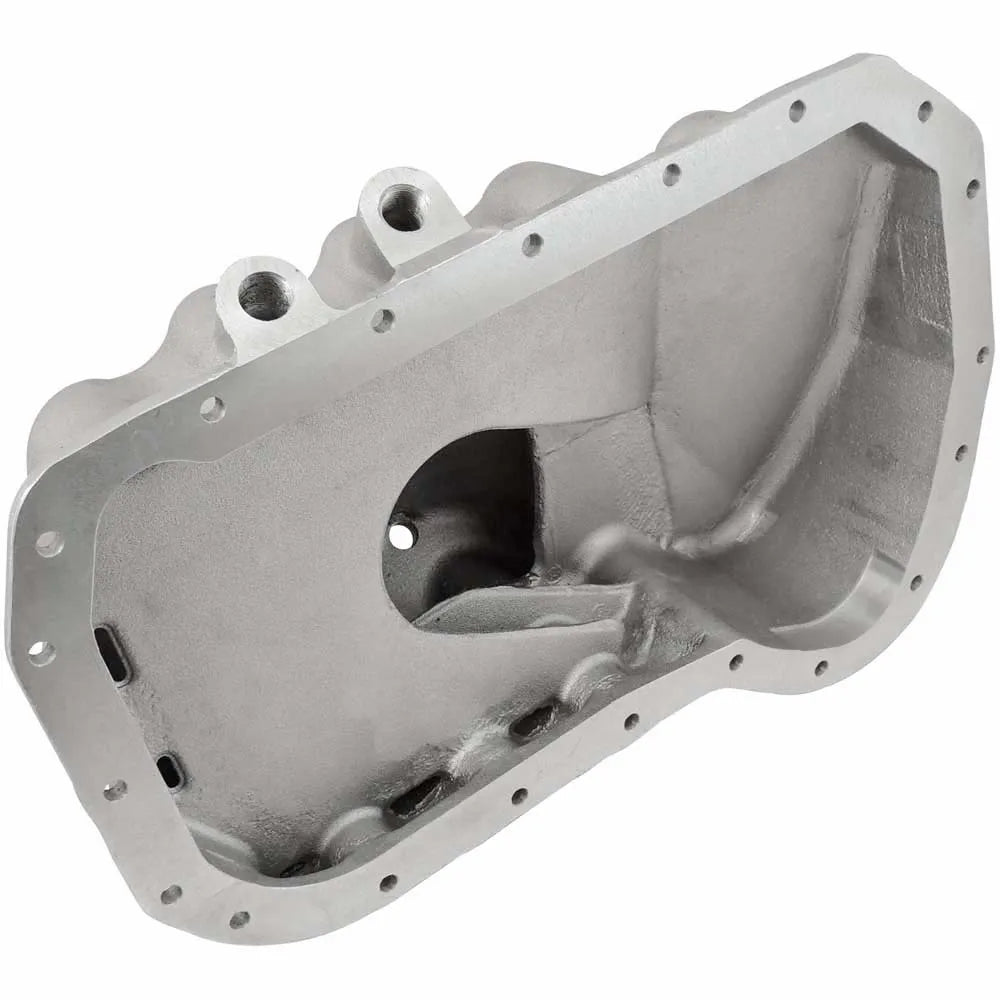

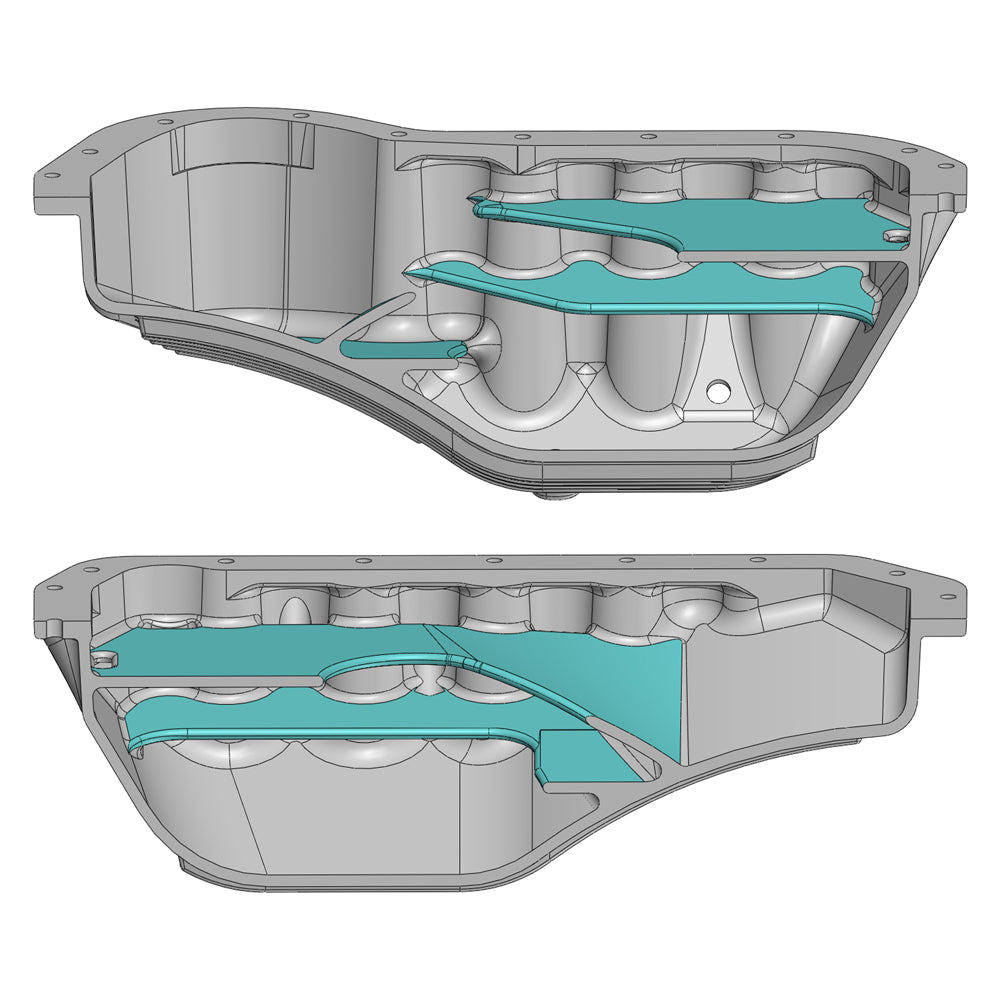

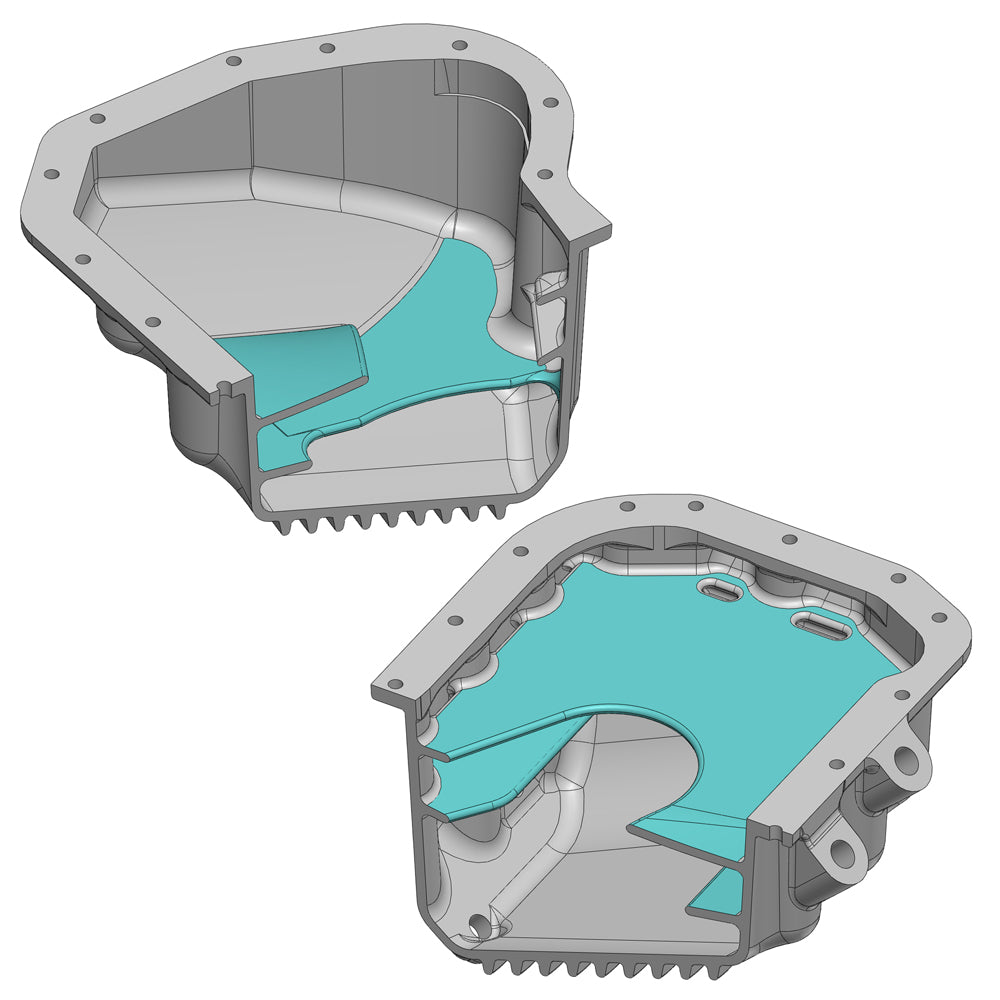

With a capacity of 4 liters (500ml more than the stock) and internal deflectors that ensure the correct direction of the lubricant to the oil pump pickup, even during accelerations, braking, and turns.

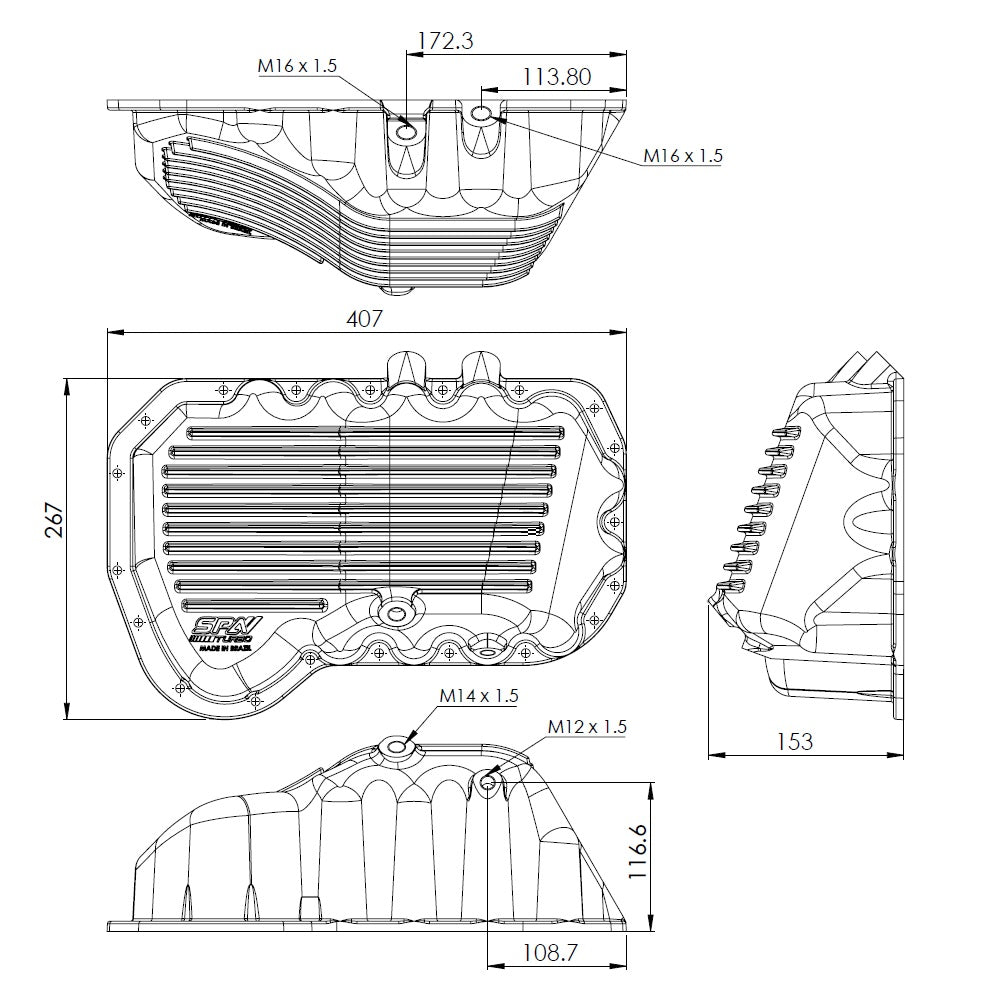

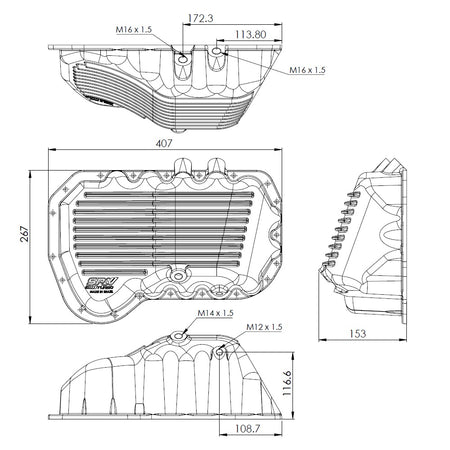

The SPA Turbo oil pan also features two locations for oil return installation (M16x1.5), allowing you to choose the best option according to your application. It also features a M12x1.5 thread for temperature sensor and the standard M14x1.5 thread for the draining plug.
Application: VW 8V and 16V longitudinal engines (1.6 / 1.8 and 2.0L)
Material: Cast Aluminum
Capacity: 4.22 quarts / 4 liters (500ml more than the original model)

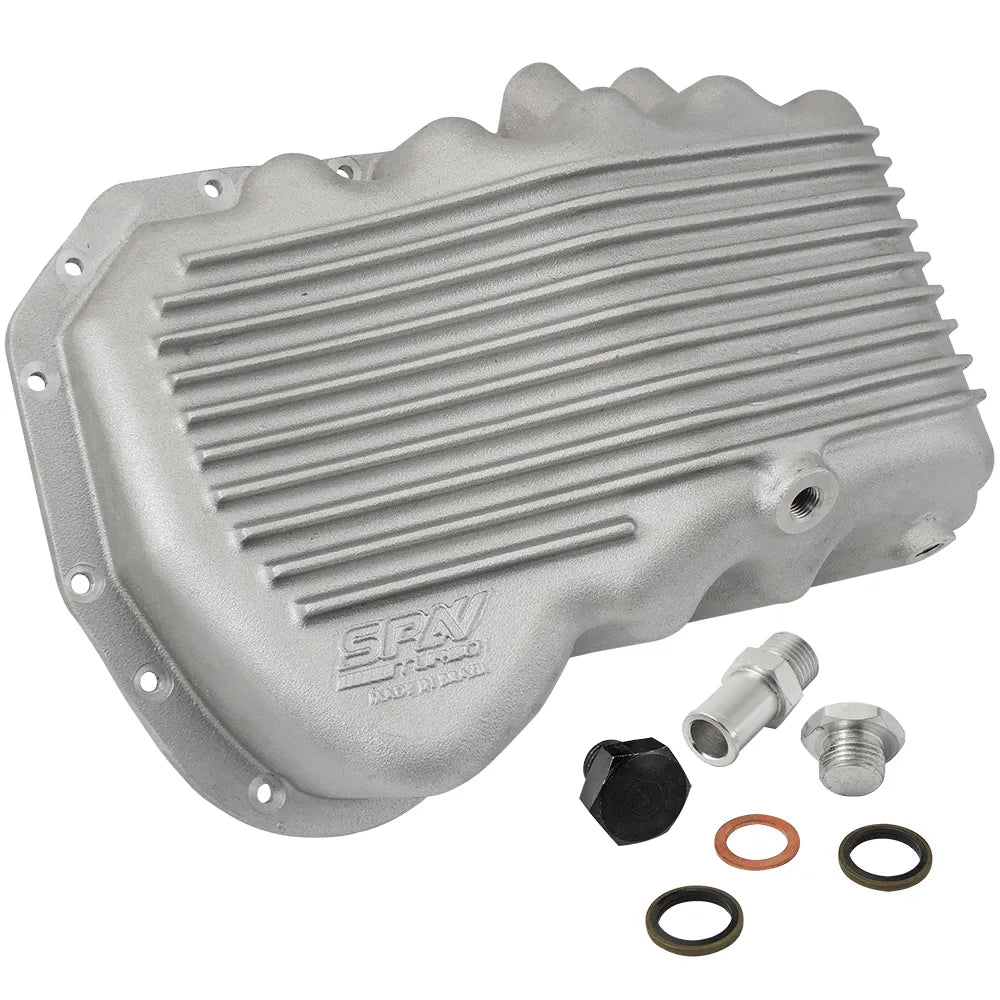

Oil return: 2x M16x1.5 thread locations (includes 1 fitting for 5/8 hose and 1 plug)
Temperature sensor: 1x M12x1.5 thread (includes plug - sensor not included)
Drain plug: stock M14x1.5 thread (plug not included).
To use with standard long pickup on longitudinal engines.
