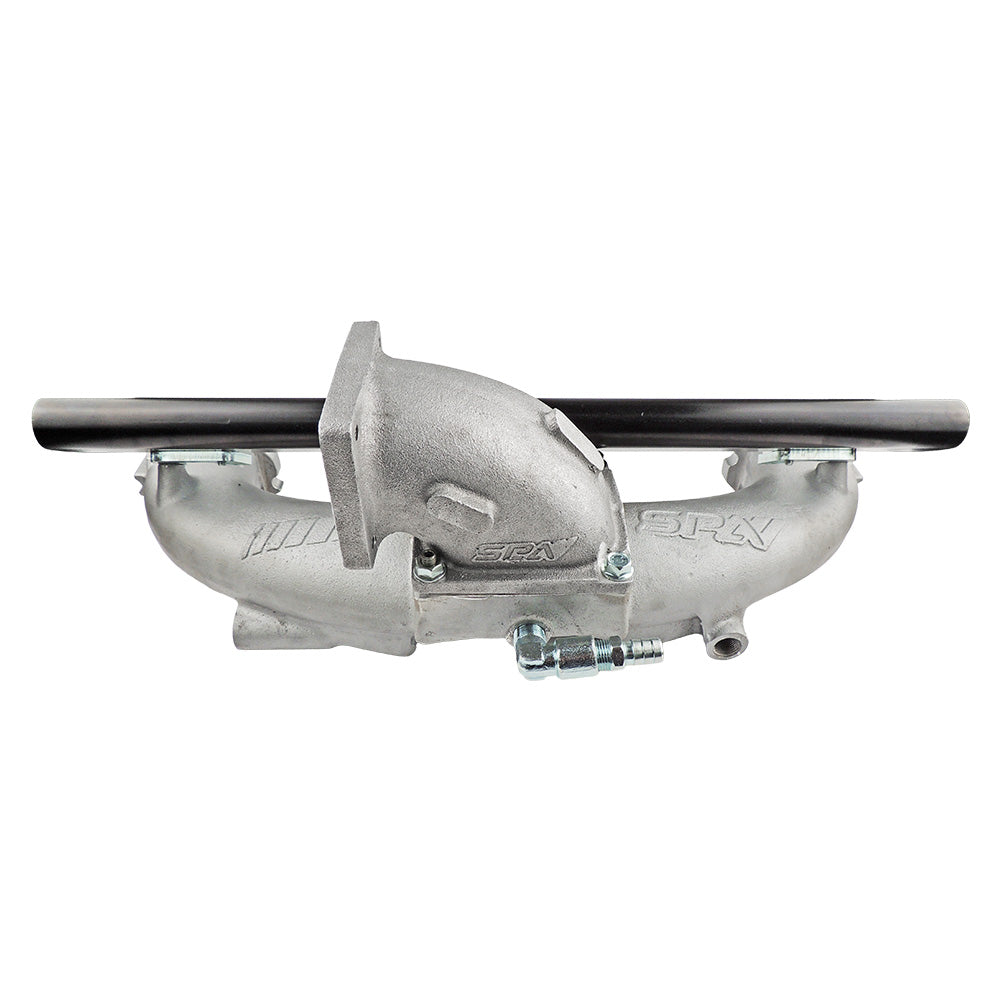

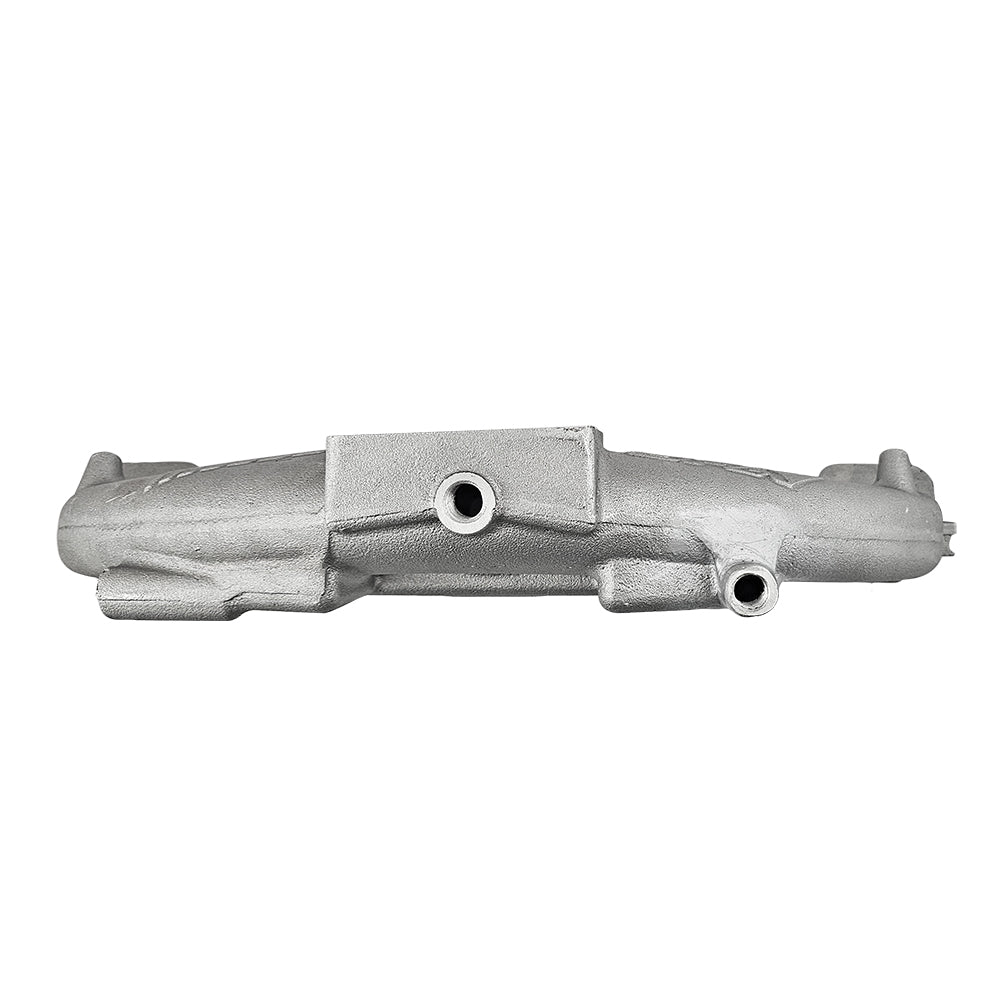

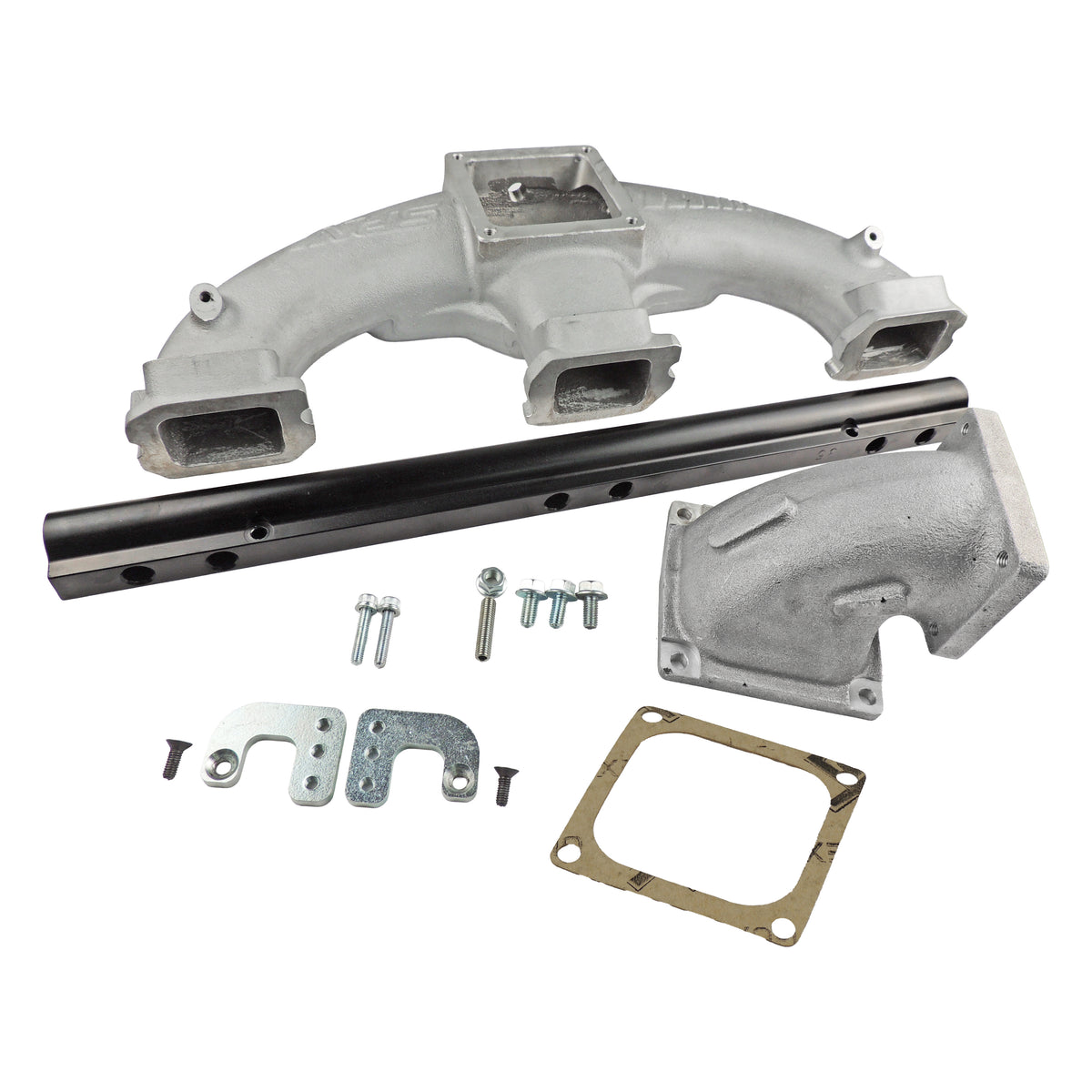

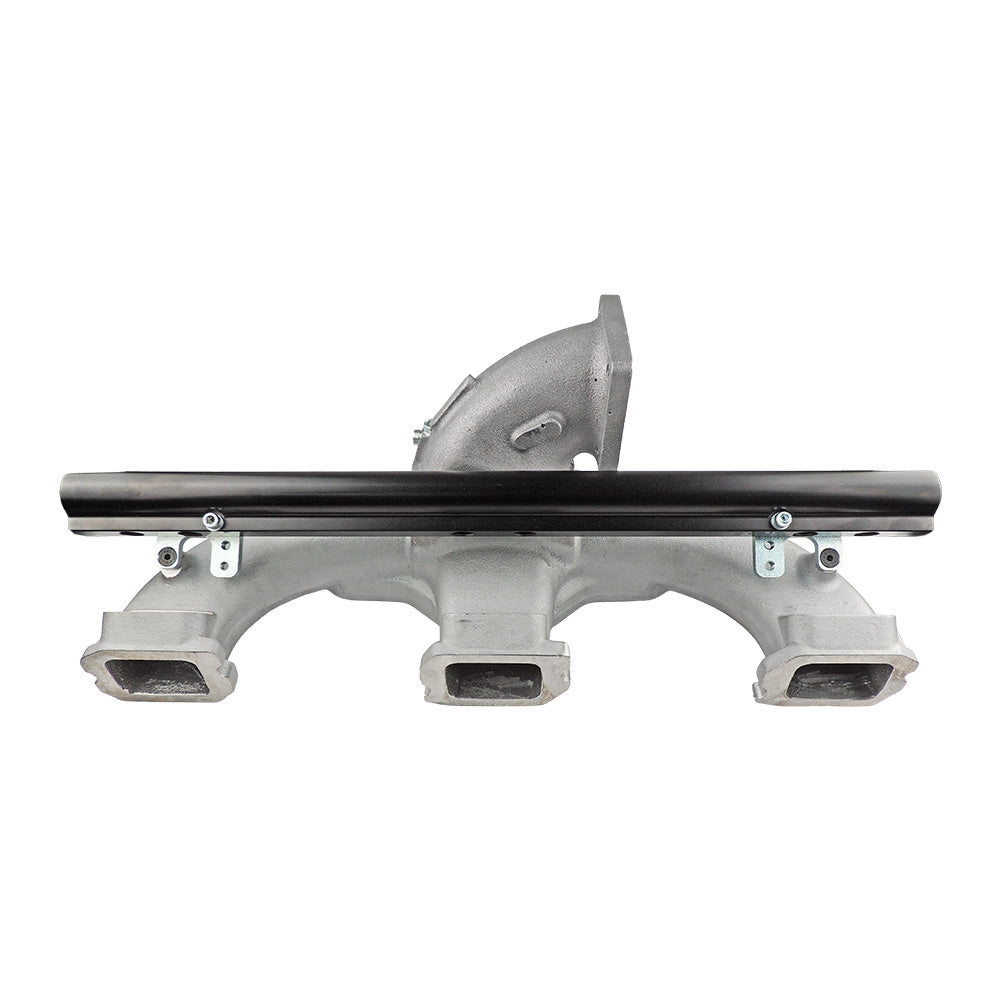

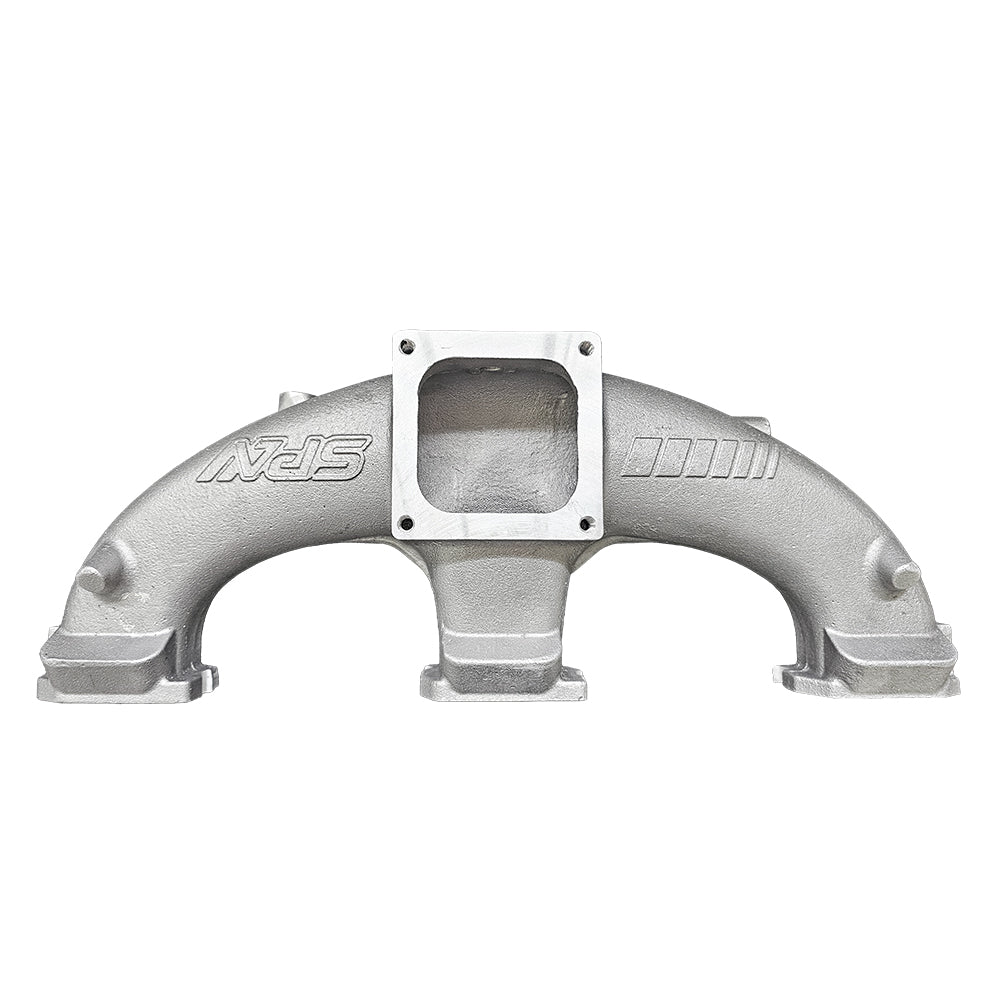

CHEVY II 194 / 230 / 250 / 292 L6 INLINE SIX INTAKE MANIFOLD FOR FUEL INJECTION - PRE SALE
Pre-Sale
Take advantage of this great opportunity and buy this product at an unbeatable price! This item will be available for delivery approximately 10/30/2025.

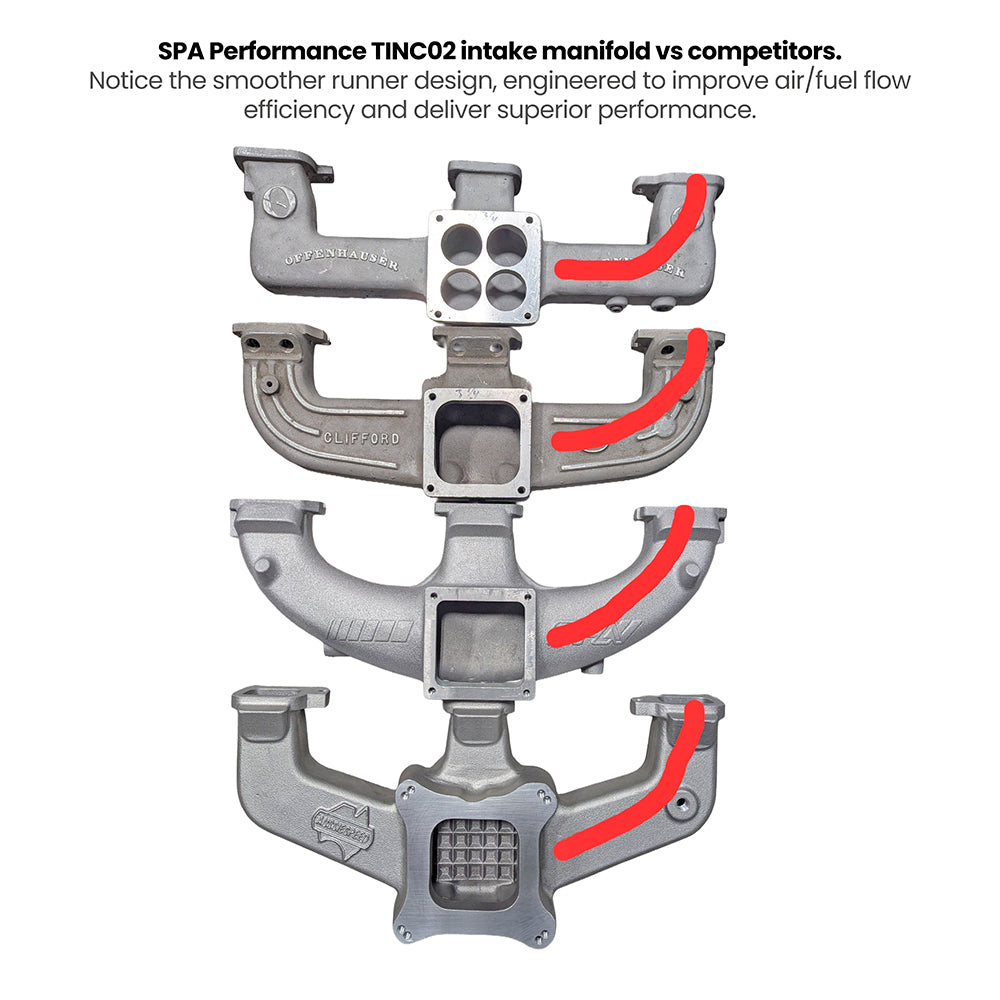

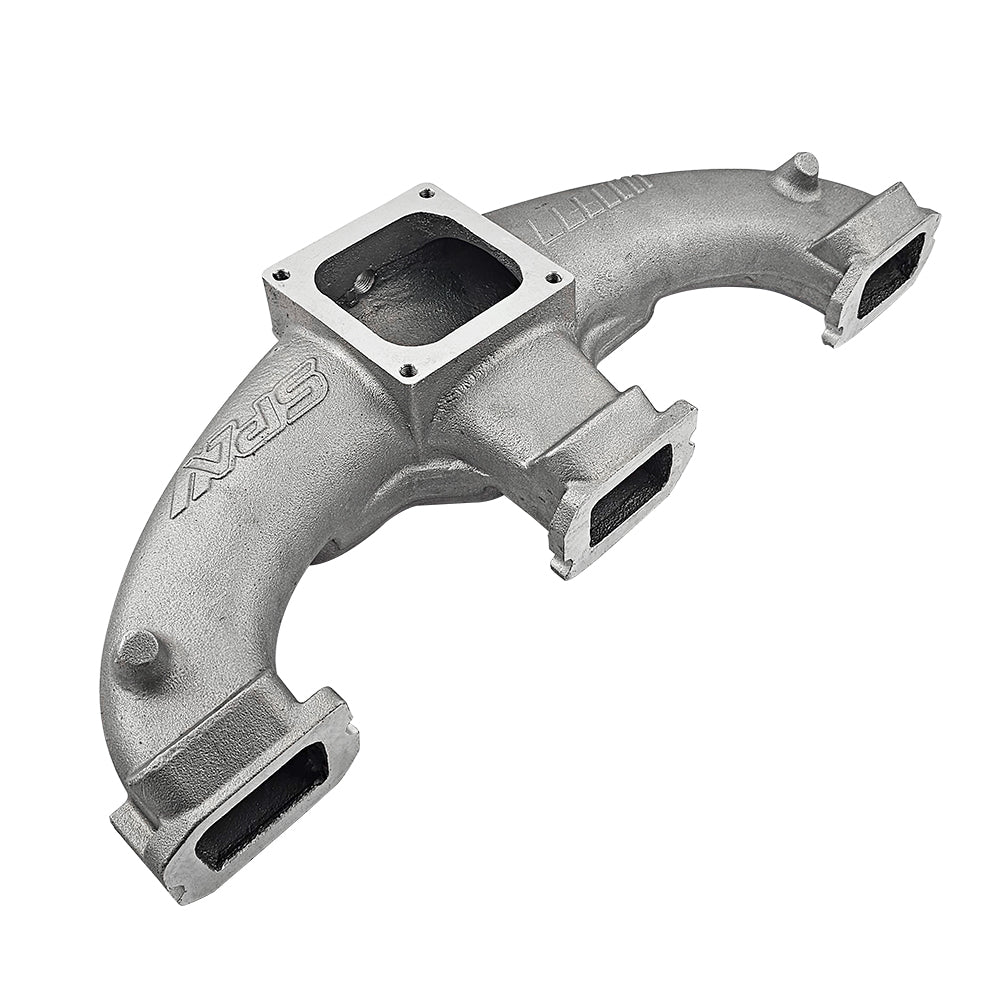

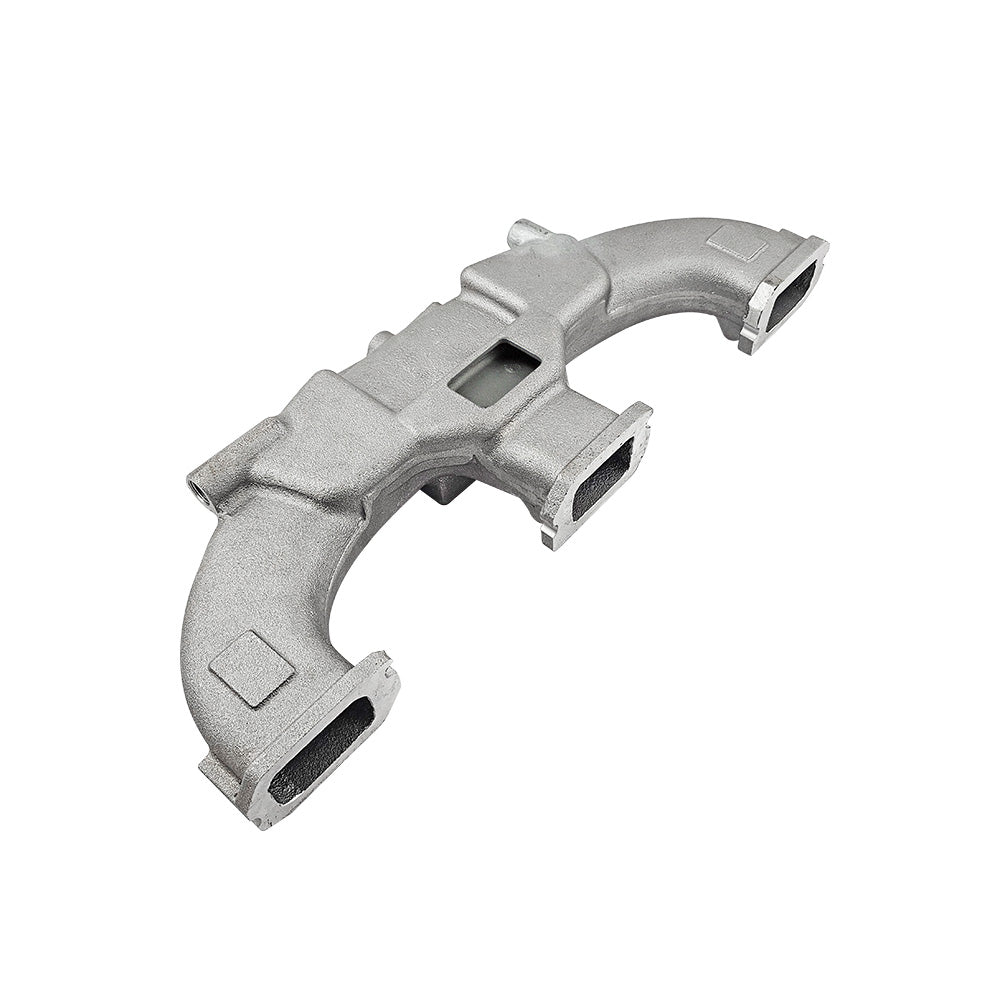

The intake manifold for the Chevy 250/292 engine from SPA Performance was developed by our engineering department with the aim of providing the highest airflow and versatility on the market. It is compatible with both Holley four-barrel and Weber carburetors (needs adapter flange*).This intake manifold was designed to work perfectly with SPA Performance turbo manifolds, PN TMC02 and TMC05. For other applications, Check your exhaust manifold and clamps, trimming on the marked area may be necessary. For other applications, Check your exhaust manifold and clamps, trimming on the marked area may be necessary
Application: ‚ 194 (3.2Ci) / 230 (3.8Ci) / 250CI (4.1L) / 292Ci (4.8Ci) inline six engines
Number of injectors: 6

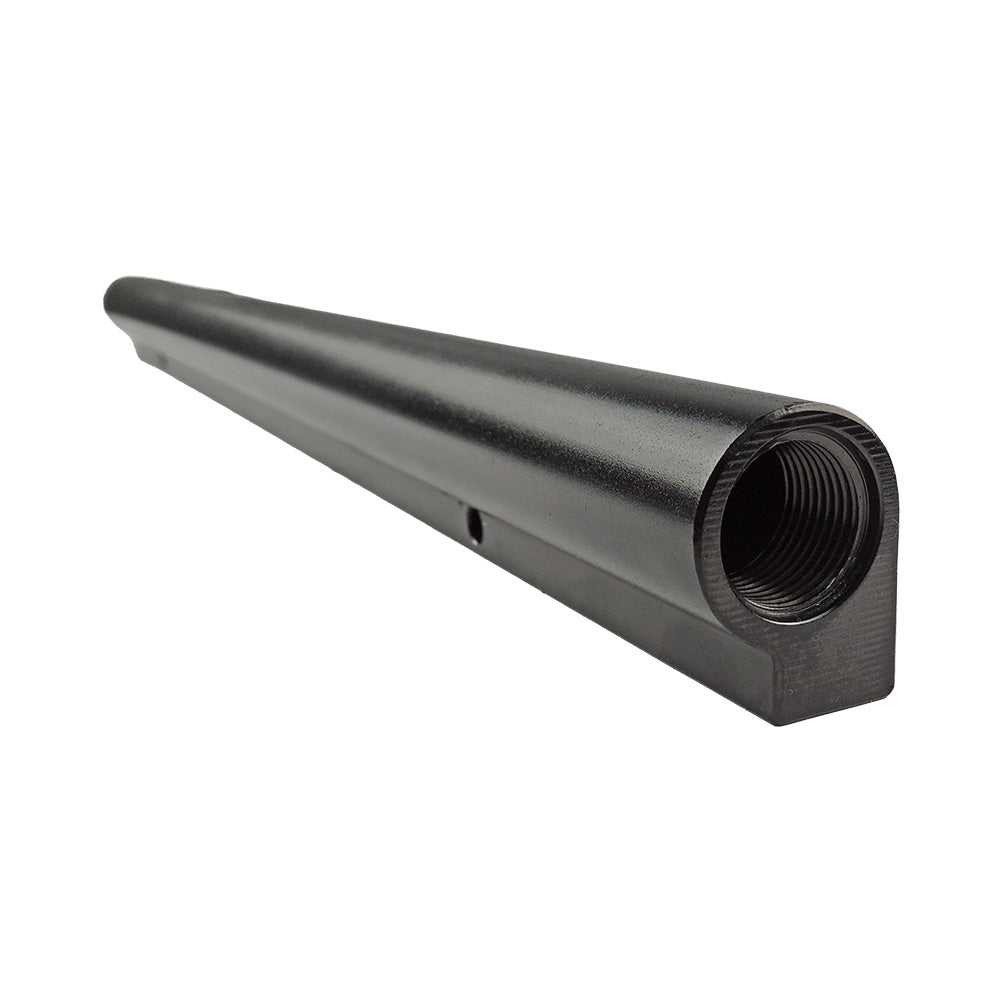

Fuel rail: anodized aluminum, high-volume design, -10AN fittings. Internal volume is 97% larger than SPA Performance standard fuel rails.
Fuel rail‚ inlet/outlet: -10AN
Injectors compatible: Bosch style, 14mm o-ring, compact / standard / long
Throttle body: GM LS style, 90mm (allows modification up to 102mm), 70 x 104mm bolt pattern
Throttle Body Position (TBI): toward front
Maximum working capacity: 10bar (145psi)
Material: cast aluminum
