SPA PERFORMANCE

Chevy II 194 / 230 / 250 inline 6 T4 turbo manifold + 6" x .927 / 152.4mm x 23.56mm SUPER A CONNECTING ROD SET HEAD STUD SET FREE: HEAD STUD SET

Out of stock
No reviews
Usually ships within 24 hours
$1,154.90
Product details
  • Vendor SPA PERFORMANCE
  • SKU CMBTMCT4L470149

Do you have questions about this product?

Ask an expert!

Description Shipping information Reviews

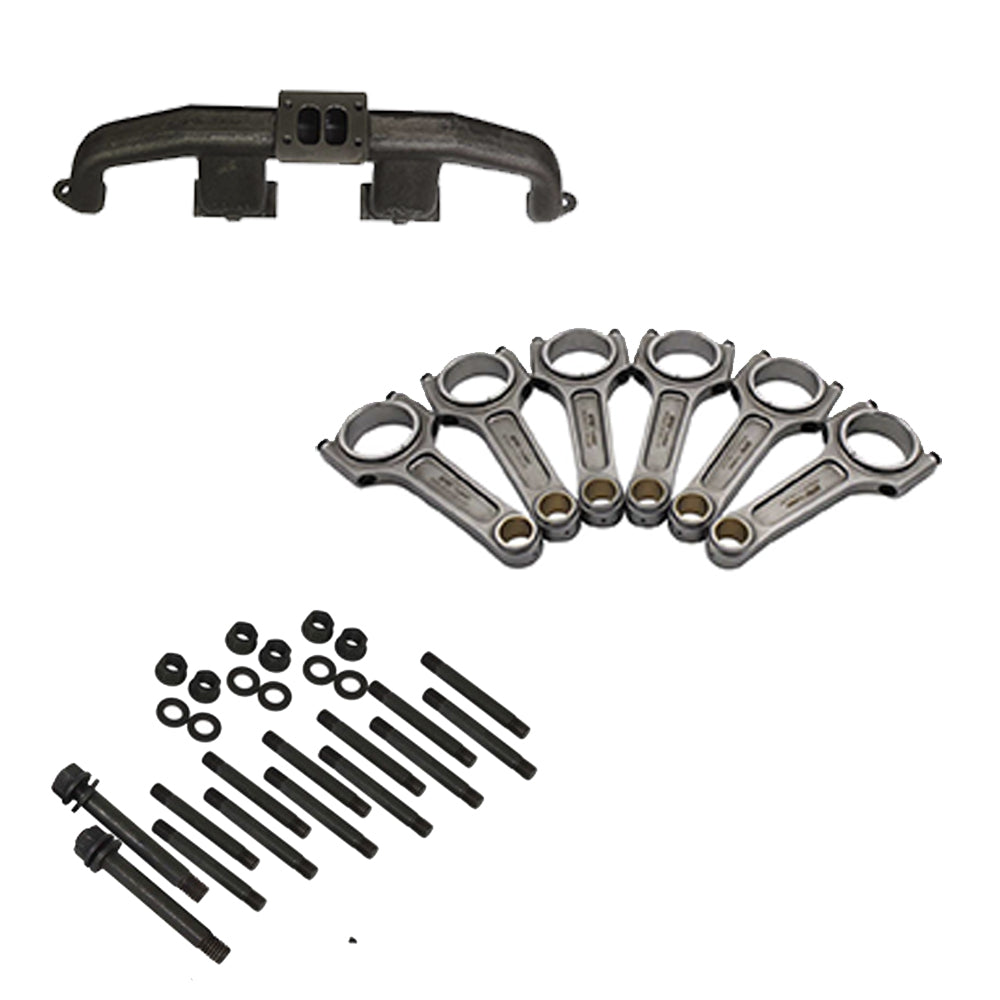

CHEVY II 250 INLINE 6 T4 TURBO MANIFOLD

  • IMPROVED Flow and reduced Weight compared to TMC02 style, also a new high-flow WG port is available, equal flow from all cylinders for a better boost control on high flow engines.
  • WANT MORE?? ok we have a special price for it too!
  • WANT 400 reliable EASY horsepower and gobs of torque?
  • The TMC05T4 manifold is an ASTM A536-584 nodular iron cast manifold, available in T4 divided turbocharger Flange; the manifold requires a custom WG mount (not included)
  • The application is Chevy 194 / 230 / 250 CU IN ENGINES.
  • Weight: 20lbs (9kg).
  • Turbo flange threads: M10x1.5
    Wastegate flange (if applicable) threads: M8x1.25

CHEVY II 250 / 292 INLINE SIX 6" 152.4MM X 23.56MM SUPER A CONNECTING ROD SET

  • A Beam profile.
  • Center to center distance: 152.4mm (6")
  • Big end size: 53.98mm (2.125")
  • Small end size: 23,56mm (0.927")
  • Tightening torque: 9 kgfm (65 lbft)
  • 4340 forged steel.
  • For up to 1200 HP engines.
  • 770g (27.16 oz) each rod with bolts
  • Set with 6 pieces.
  • SPA 7/16" bolt.
  • Bronze bushing.
  • Shot peened.
  • Retail Packaging

CHEVY II 250 / 292 INLINE SIX HEAD STUD SET

Chevy cylinder head stud set for Chevy II 250 / 292 inline Six Head Stud Set.
The set contains 14 Studs 106mm, 14 washers and 14 point nuts,
The studs are for 1/2" threads, please confirm with your OEM bolts before purchase.
Maximum Torque - 72 ft/lb


"All SPA Turbo's cylinder head stud sets includes 1 pack of CMD's anti scoring lube #3.

Designed for extreme pressure applications, it's perfect for cylinder head studs assembly, as it stands pressure values of 40,000 to 50,000 psi, which helps to reduce thread friction and ensure that the torque applied is used to properly stretch the bolts."
