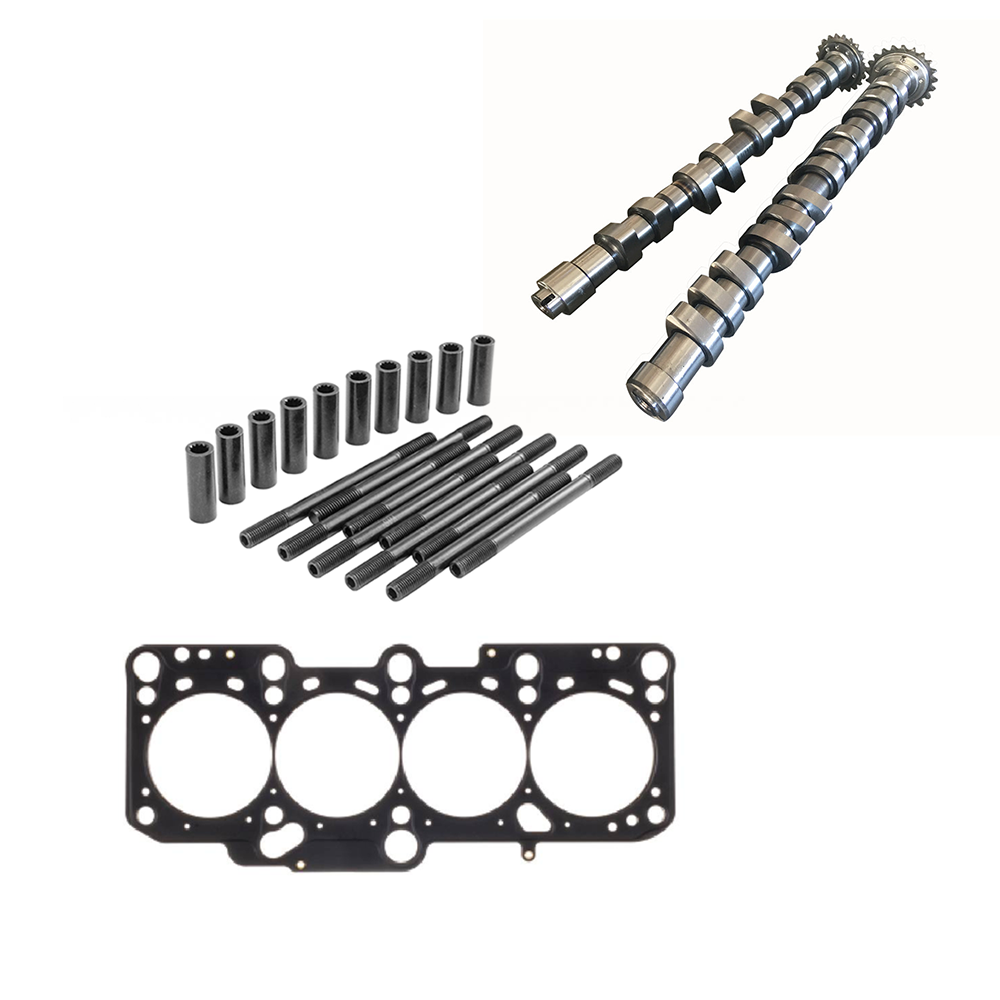

Cometic VW 1.8L 20V 1.68mm decompression MLS head gasket + FORGED HEAD STUDS - SET OF 10 UNITS + 252 / 260 High Performance Camshaft set

Out of stock
No reviews
Usually ships within 24 hours
$669.90
Product details
  • Vendor SPA PERFORMANCE
  • SKU CMBHGHSCS

Do you have questions about this product?

Ask an expert!

Description Shipping information Reviews

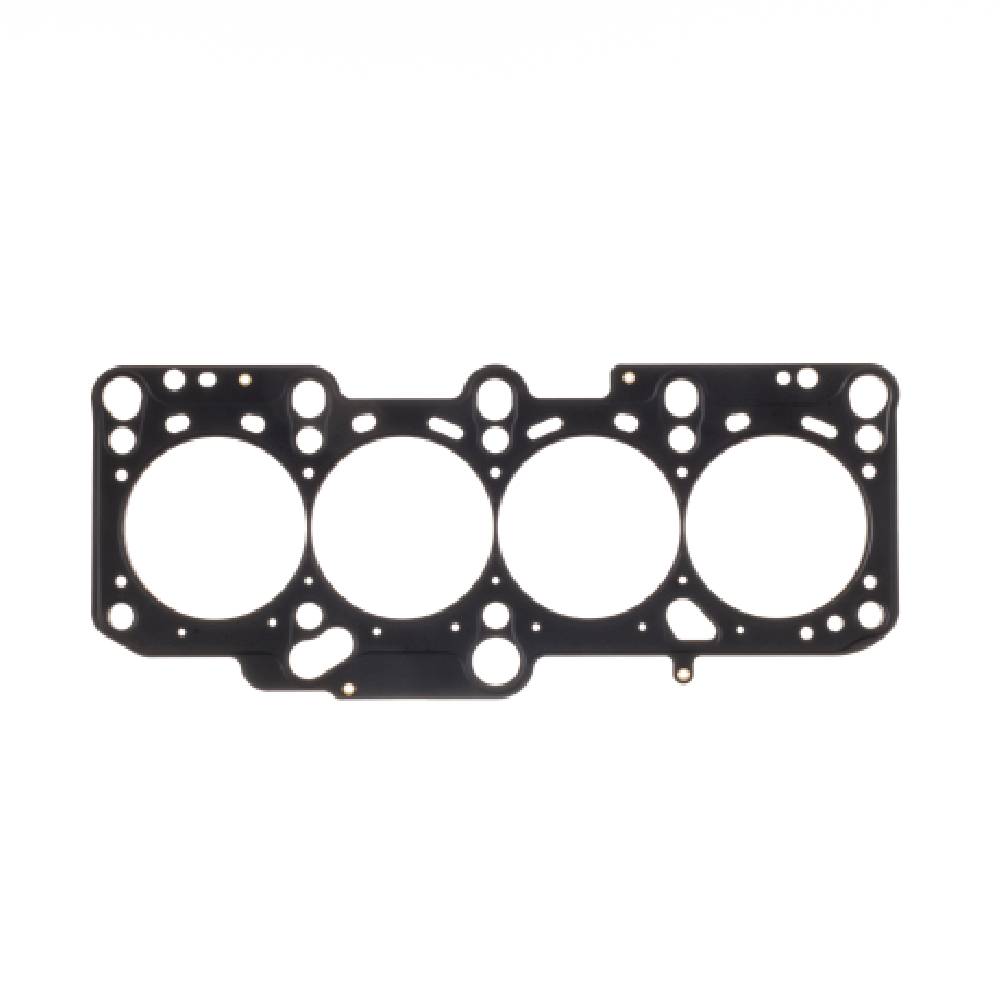

Cometic VW 1.8L 20V 1.68mm decompression MLS head gasket

  • NEW Compression reduction VW 1.8L 20v.
  • Special cylinder head gasket for turbo conversion on the 1.8L 20V.
  • With this special‚ Turbo multilayer metal cylinder head gasket.
  • The compression reduction is already integrated in the seal.
  • (Ground and coated).
  • Will accept pistons up to 85.00mm overbored sized, can be used with smaller bores with no problem too.
  • Total thickness: 1.68mm (0.066")
  • Comparable with engines:
  • (z.B. AGU, AJH, APH, APP, AQJ,AQX, ARX, ARY, ARZ, AUG, AUQ, AUM, AVC, ADR, AWC, AWD, AWW, AYP, BBU, BEK, BFV, BE, BJX, BVP, VER, AEB, AJL, APH, APU, AVJ, AWT, BEX, BFB‚ AMK, AMU, APX, APY, BAM)
  • Comparable with gaskets:
  • VW: 058103383K
  • VW:‚ 058103383M
  • VW:‚ 06A103338F
  • VW:‚ 06B103383B
  • Elring:‚ 366.670

PART NO Cometic: C4559-066

‚

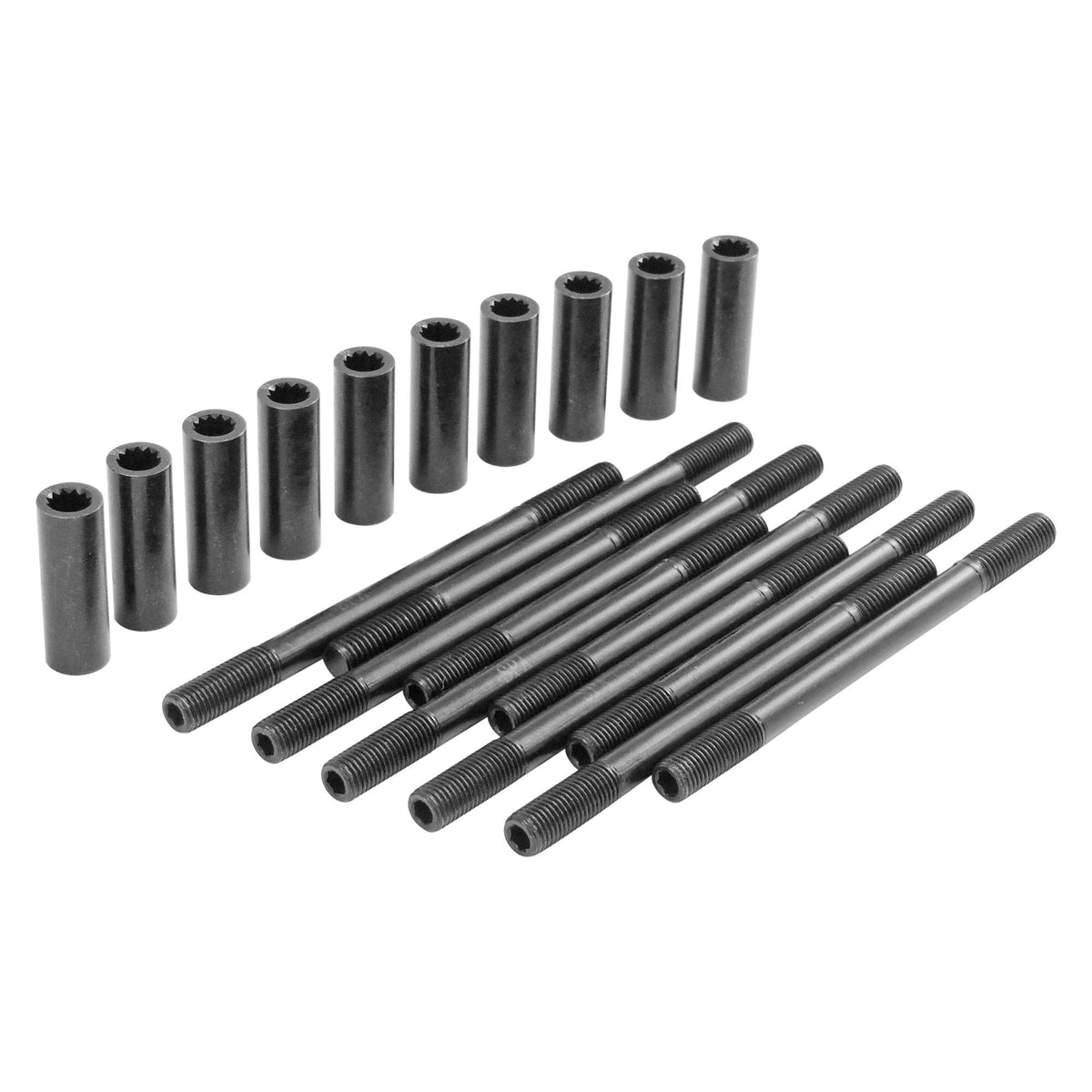

FORGED HEAD STUDS VW/AUDI 1.8 20V 137MM - SET OF 10 UNITS - (EXPRIS27)

  • VW/Audi cylinder head stud set for 1.8 20V Transverse Engines Head Stud Set.

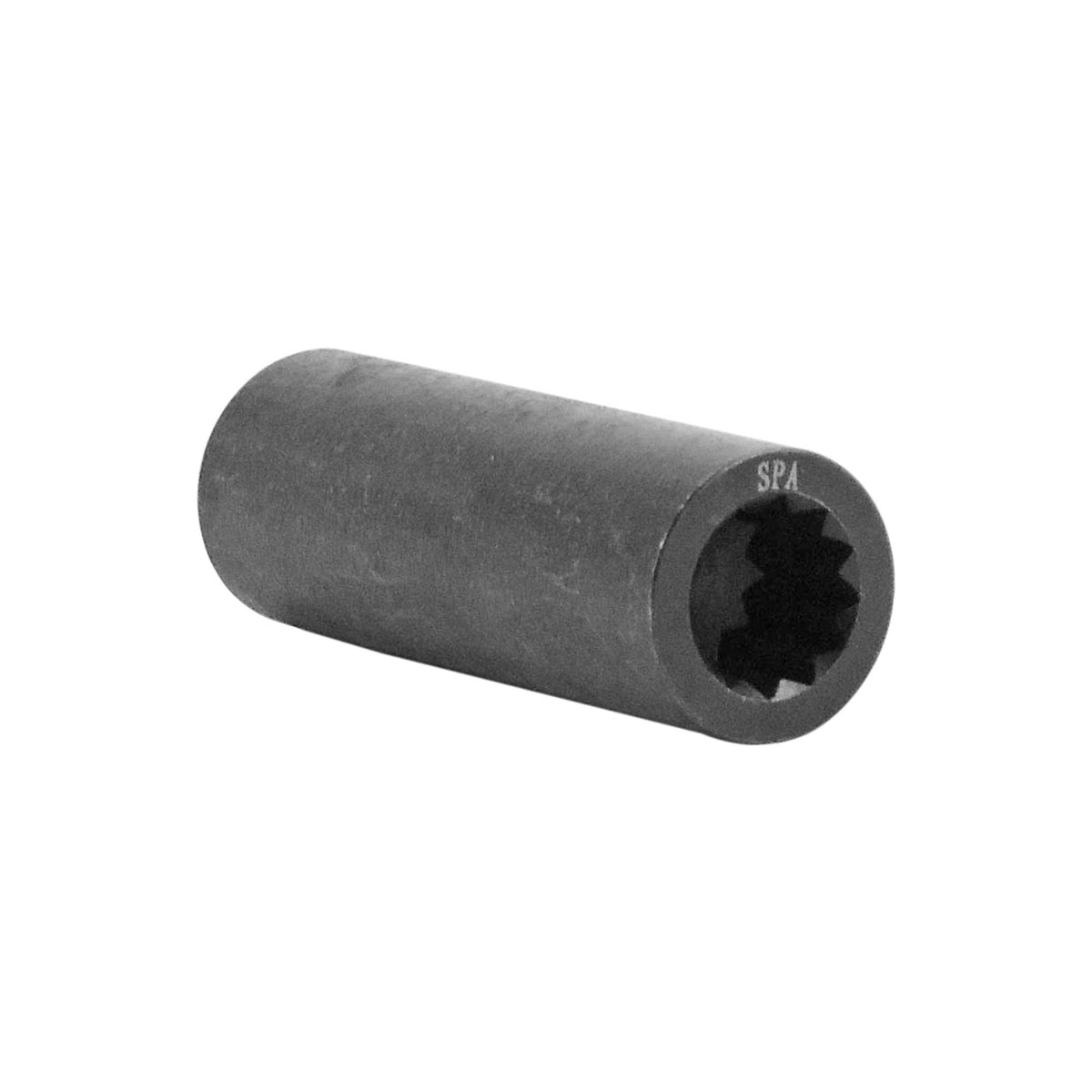

    The set contains 10 Studs 137mm /‚ 10 special nuts
    The studs are for M10 x 1.5 threads, please confirm with your OEM bolts before purchase.
  • Maximum Torque - 72 ft/lb

¢â‚¬Å“All SPA Turbo's cylinder head stud sets includes 1 pack of CMD's anti scoring lube #3.

Designed for extreme pressure applications, it¢â‚¬s perfect for cylinder head studs assembly, as it stands pressure values of 40,000 to 50,000 psi, which helps to reduce thread friction and ensure that the torque applied is used to properly stretch the bolts.¢â‚¬

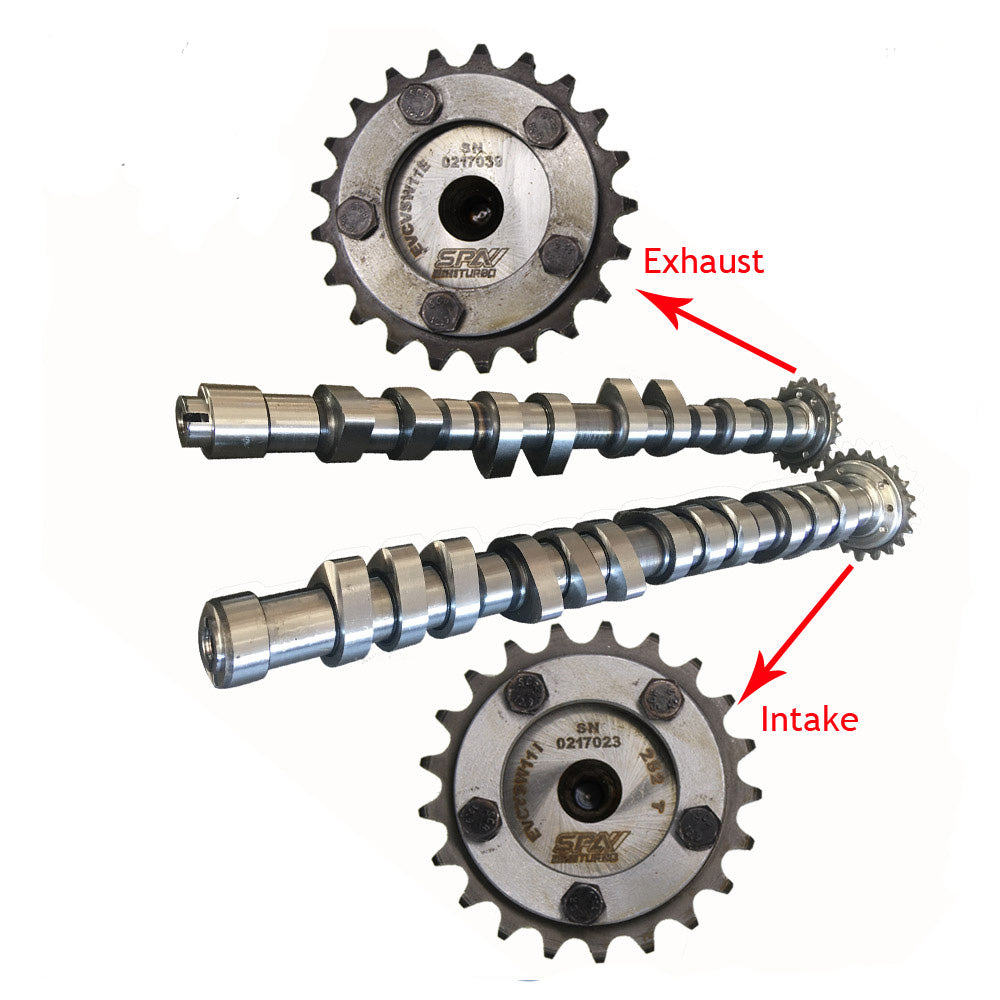

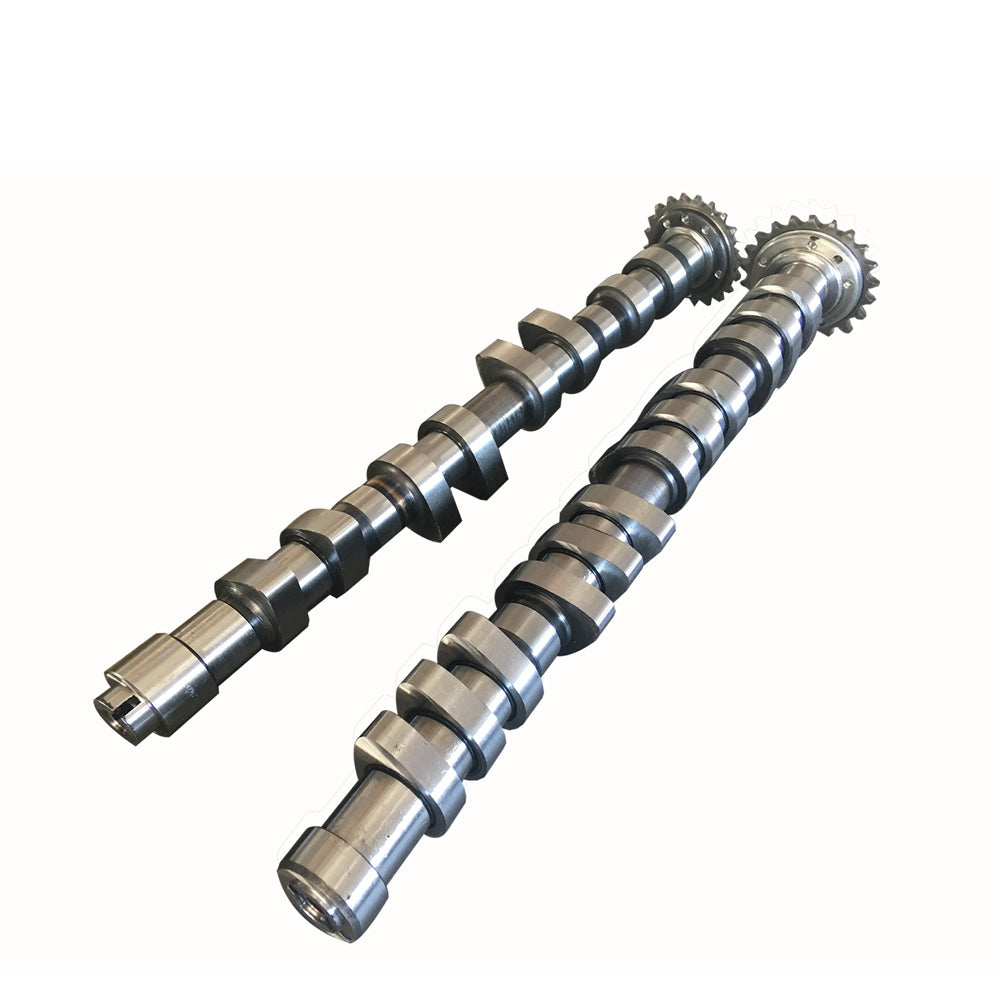

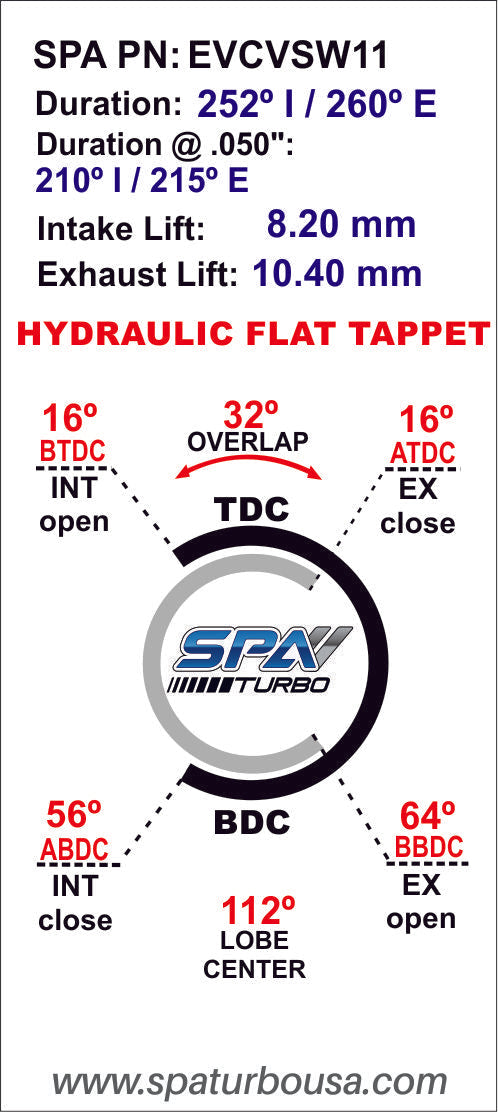

252 / 260 High Performance Camshaft set

‚


  • These SPA Turbo Cams for your VW are one of the best overall performance upgrades you can do.
  • Not a peaky or hard to live with pair, this matched camshaft set increases performance throughout the available rev range and is a popular application for the street performance or dual street track uses cars.
  • Intake 252‚°/Exhaust 260‚°

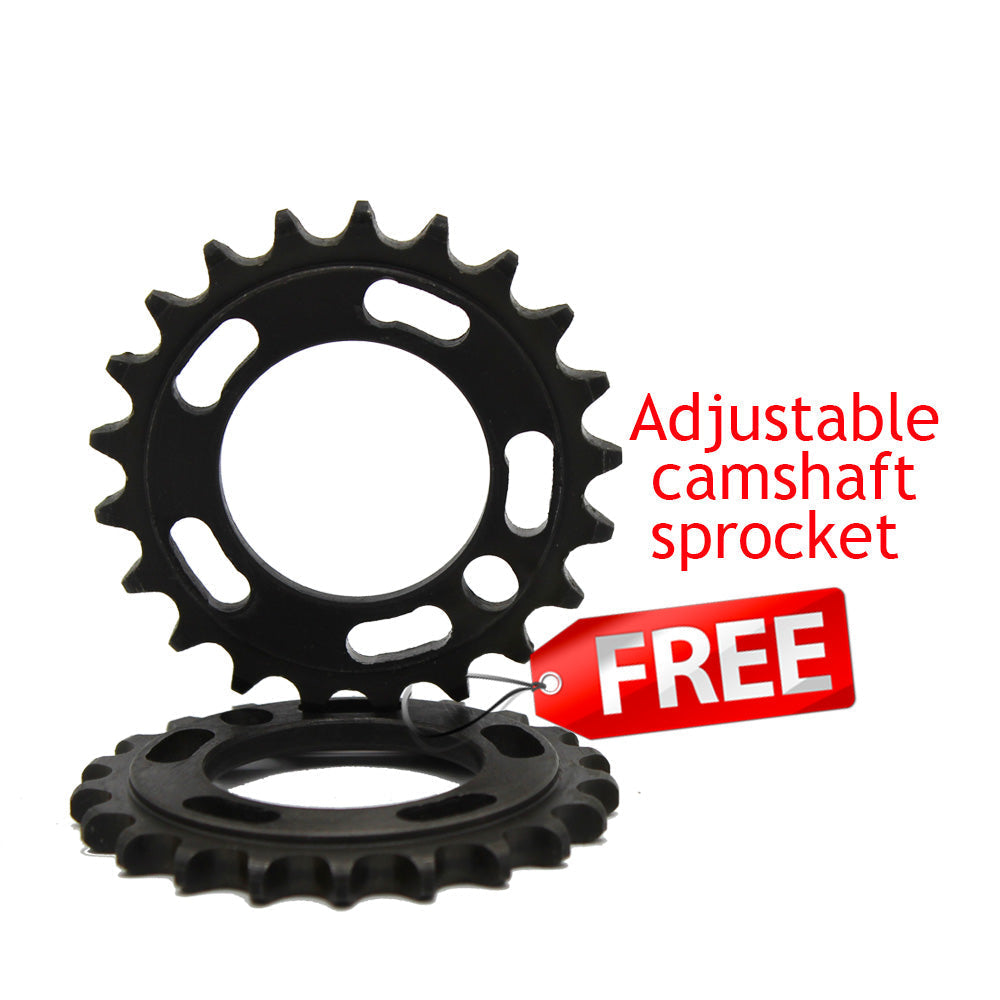

  • Includes Adjustable cam sprocket/s
  • This is a popular combination, designed to run with OEM lifters followers and springs

‚

  • Fits VW 1.8T 20V applications
  • More torque and Horsepower!
  • Intake 252‚°, cam lift 8,2, valve lift at TDC 0,8 - for TURBO, for hydr. lifters
  • Exhaust 260‚°, cam lift 10,4, valve lift at TDC 0,7, for hydr. lifters
  • Attention: we strongly recommend‚ the assembly with NEW hydraulic lifters, otherwise camshafts can be damaged.
  • ( Mfg / Vehicle (model) / Year / Engine )
Audi A4 CVT 2001.5-up 1.8T
Audi A4 FWD 2001-up 1.8T
Audi A4 Quattro 1997-1999.5 1.8T
Audi A4 Quattro 2000 1.8T
Audi A4 Quattro 2001-up 1.8T
Audi TT 2000-2004 1.8T 180HP
Audi TT Quattro 2000-2004 1.8T 180HP
Audi TT Quattro 2000-2004 1.8T 225HP
Golf/GTI IV 2001-up 1.8T
Golf/GTI IV 2000 1.8T
Jetta IV 2000 1.8T
Jetta IV 2001-up 1.8T
New Beetle 2000 1.8T
New Beetle 2001-up 1.8T
Passat B5 1998-2000 1.8T
Passat B5 2001-up 1.8T
Passat B5.5 2001.5-up 1.8T‚
  • Tech Tips:
  • Professional installation is a must with this cam set

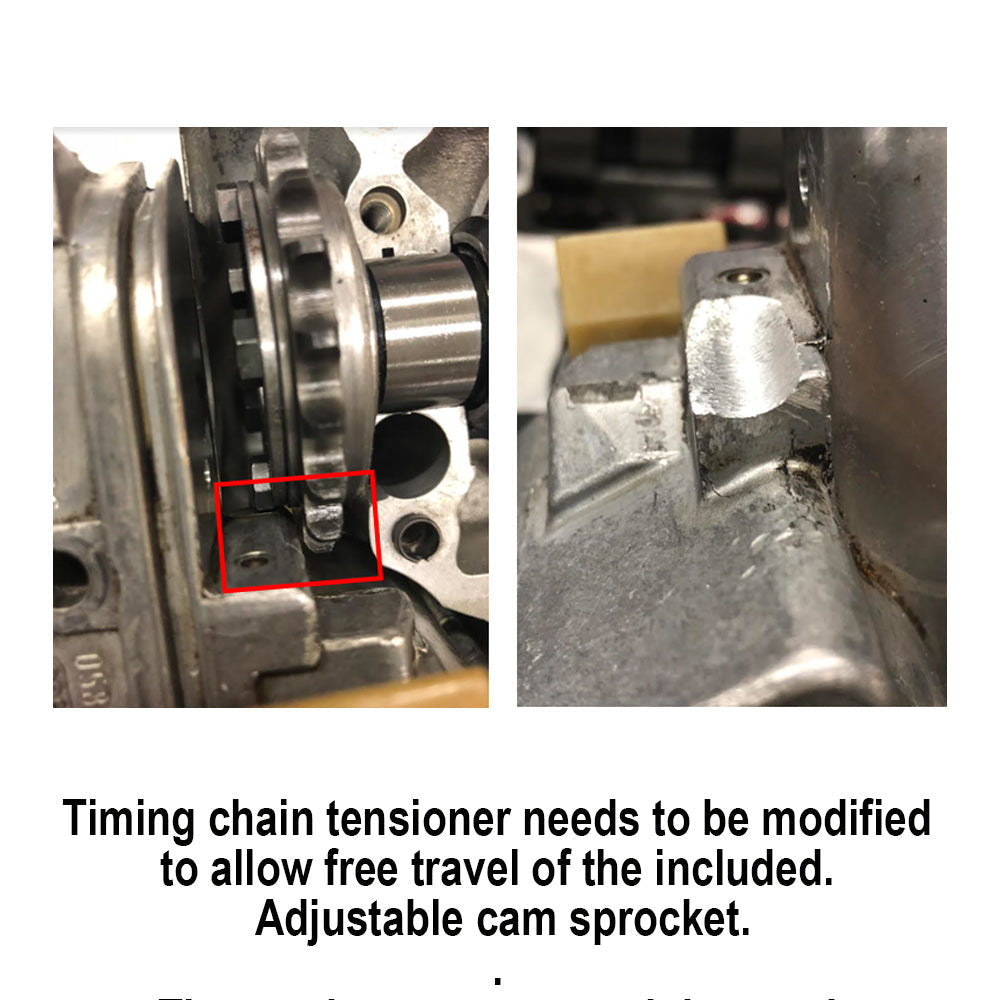

  • Timing chain tensioner needs to be modified to allow free travel of the included Adjustable cam sprocket.
  • Install it with a new set of lifters

  • Made of 1045 quenched steel
    Billet machined
    52-58 HRC

All SPA Performance¢â‚¬s camshafts includes CMD anti scoring lube #3

Designed for extreme pressure applications, it¢â‚¬s perfect for camshafts break in procedures, as it withstands pressure values of 40,000 to 50,000 psi, thus avoiding scoring on the high pressure cams - followers interface.
