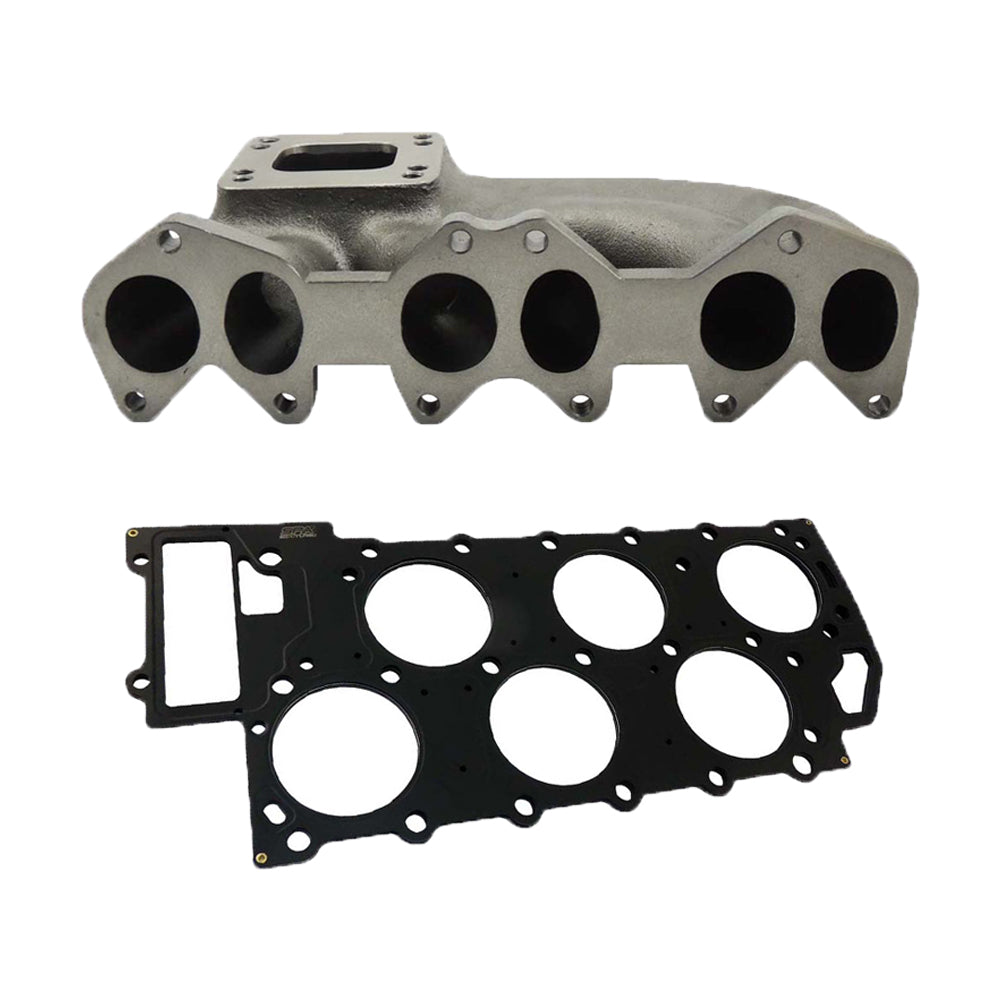

VW VR6 12v Turbo manifold T3/T4 + 0.141" 3.60mm Decompression MLS Head Gasket

• TMW03 will fit RHD and LHD cars, it accepts 2 bolt wastegate valves.
• The Turbo Manifold can accommodate either a T3 or a T4 Turbo Flange
• We provide a SRI for this engine, TIN2800.
• Our SDEE01 cast 2.5" downpipe matches perfectly with this manifold.
• SPA Turbo exhaust manifolds are precision CNC machined from high quality ASTM 536 60-40-18 cast iron.
• These are ductile spheroidal (aka Nodular iron) castings, where the graphite components are spheroidal in shape and essentially free of other forms of graphite.
• Specifically designed for pressurized components and high operating temperatures.
• In other words, the ideal material for turbo exhaust manifolds; - also used for high quality cylinder liners.
• Manufactured exclusively by SPA Turbo and not available anywhere else.
• In addition, SPA Turbo offers custom machining services and we welcome proprietary product development orders.
• We would like to think that we offer outstanding customer service, but recognize there's always room for improvement. We appreciate your input and questions.
• Turbo flange threads: M10x1.5
  Wastegate flange (if applicable) threads: M8x1.25

0.141" 3.60mm Decompression MLS Head Gasket

• NEW Compression reduction VW VR6
• Special cylinder head gasket for turbo conversion on the VR6
• With this special VR6 Turbo multilayer metal cylinder head gasket
• The compression reduction is already integrated in the seal.
• (Ground and coated)
• Total thickness: 3.60mm
• Will accept pistons up to 83.80mm overbored sized, can be used with smaller bores with no problem too.
• Compression ratio NEW: 8.5: 1
• Manufacturer: SPA TURBO
• Engine Code: AAA, ABV, AES
• Attention: only for VR6 with turbo or compressor with performance increase!
• You save yourself the purchase of 2 cylinder head gaskets and an intermediate plate!
• Metal seals are characterized by a very long service life!
• Comparable with OE numbers Comparable to manufacturer numbers

SPA Turbo has one of the widest selections of turbo manifolds in the world, including hard to find applications. From log style to top mount equal runners manifolds, we make them and keep them in stock. We have been providing quality performance components since 1990.
