HIGH FLOW INTAKE MANIFOLD OPEL / VAUXHALL / CHEVY EURO ASTRA ZAFIRA VXR GSi VX220 Z20LEH Z20LET Z20LER

For Chevrolet Euro enthusiasts, SPA Performance introduces the new intake manifold for the 2.0 16V engine (Z20LEx). Designed by SPA Performance engineering department and validated on the dynamometer, this manifold, cast in aluminum, ensures improved response, particularly at medium and high RPMs. Completely bolt on, it maintains all original connections and positions.

Application: OPEL / VAUXHALL / CHEVY EURO ASTRA ZAFIRA VXR GSi VX220 (Z20LEH / Z20LET / Z20LER)
Number of injectors: 4
Fuel rail: stock (not included)
Fuel rail inlet/outlet: stock
Throttle body: stock
Throttle Body Position (TBI): stock
Maximum working capacity: 10bar (145psi)
Internal volume: 3.25L
Material: cast aluminum

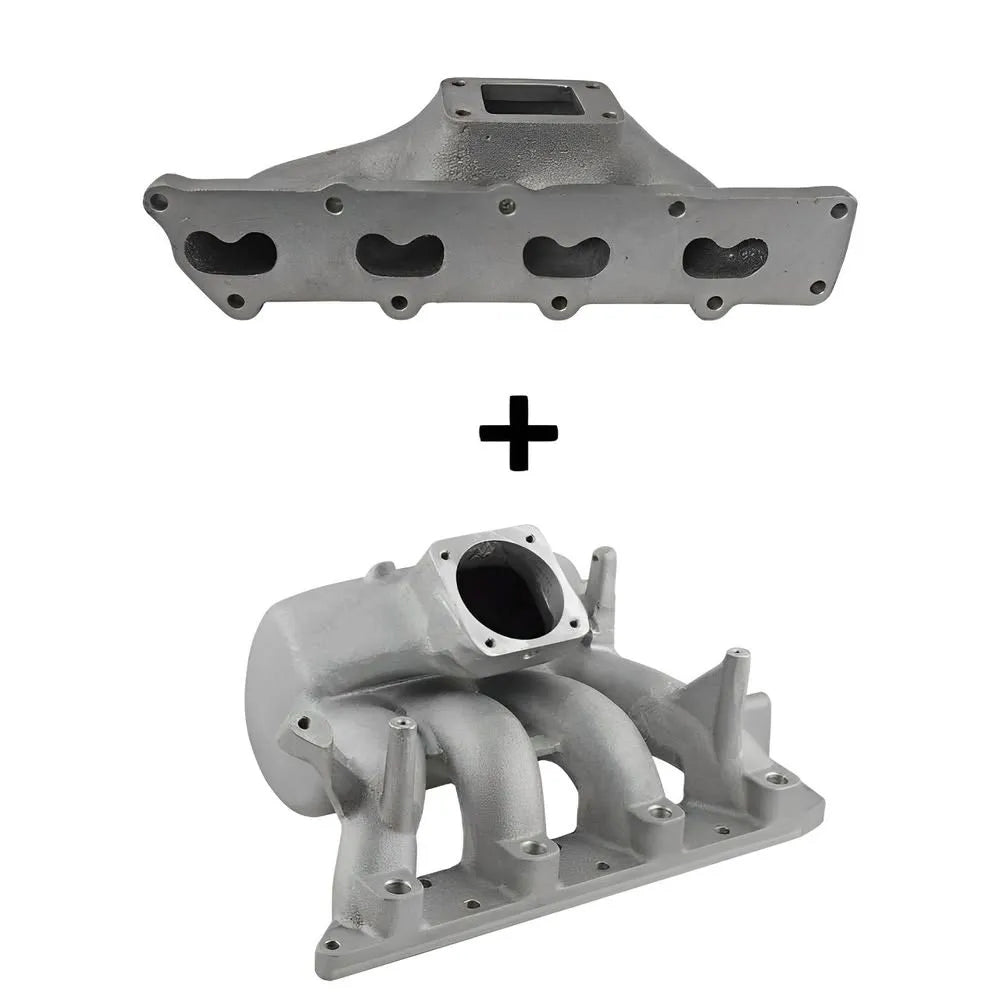

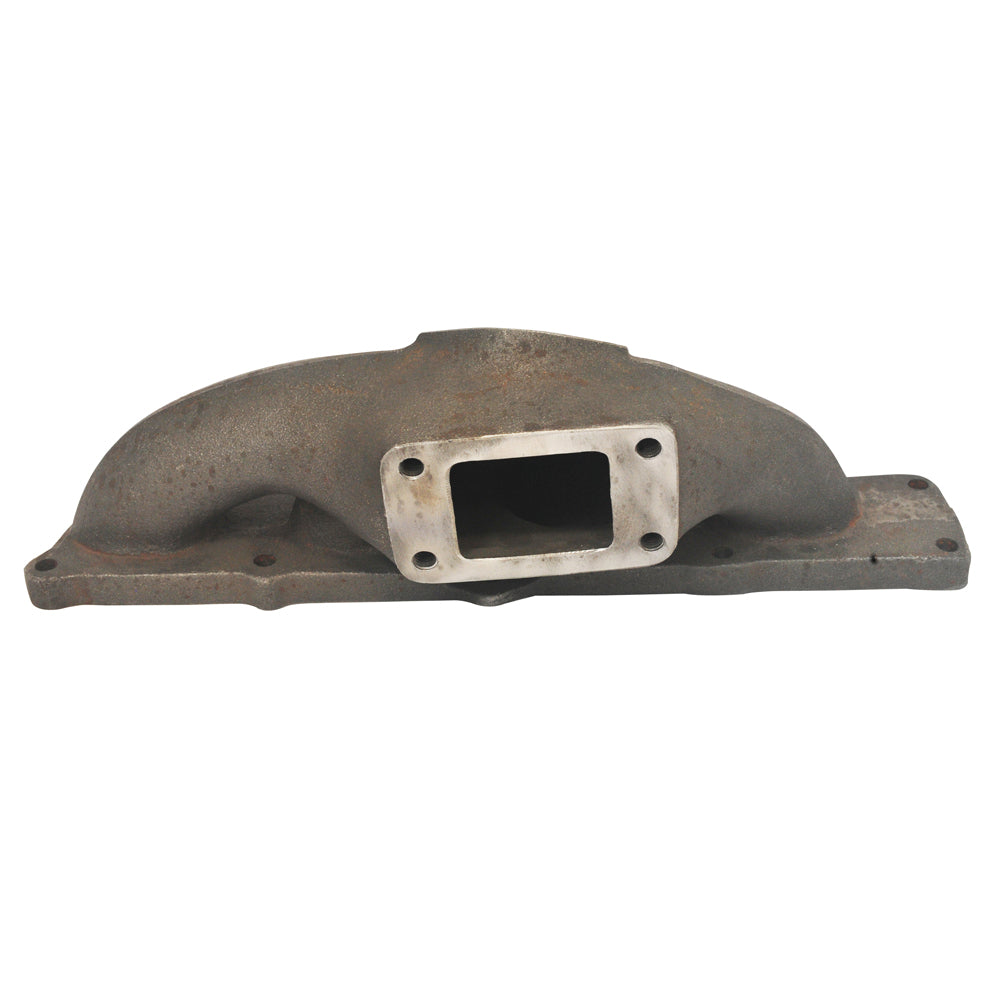

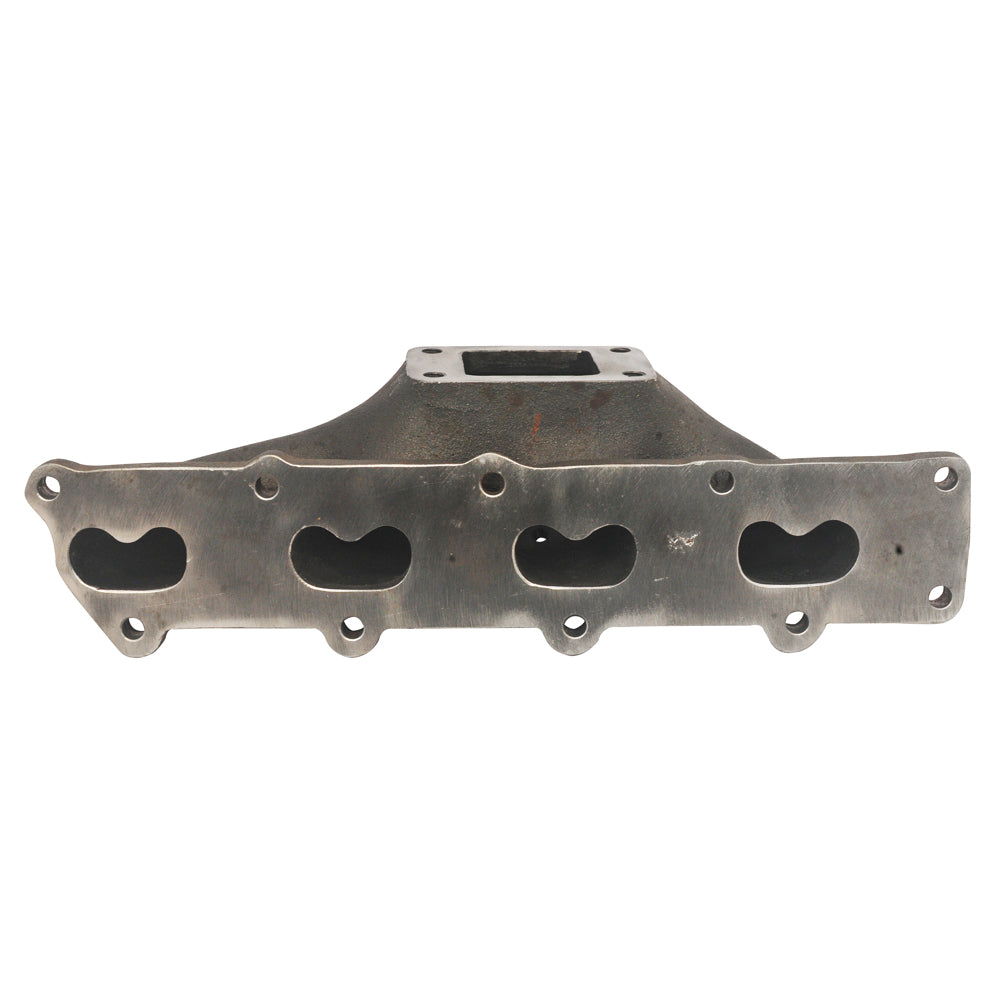

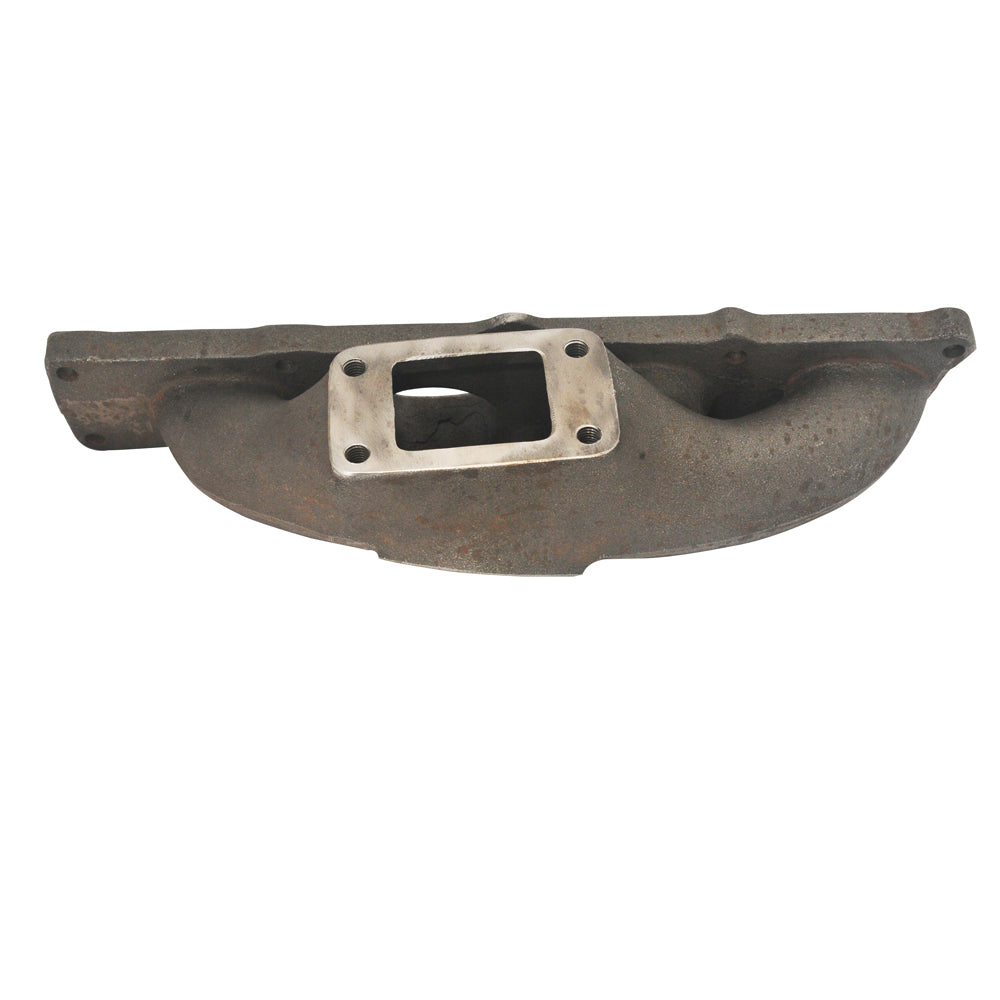

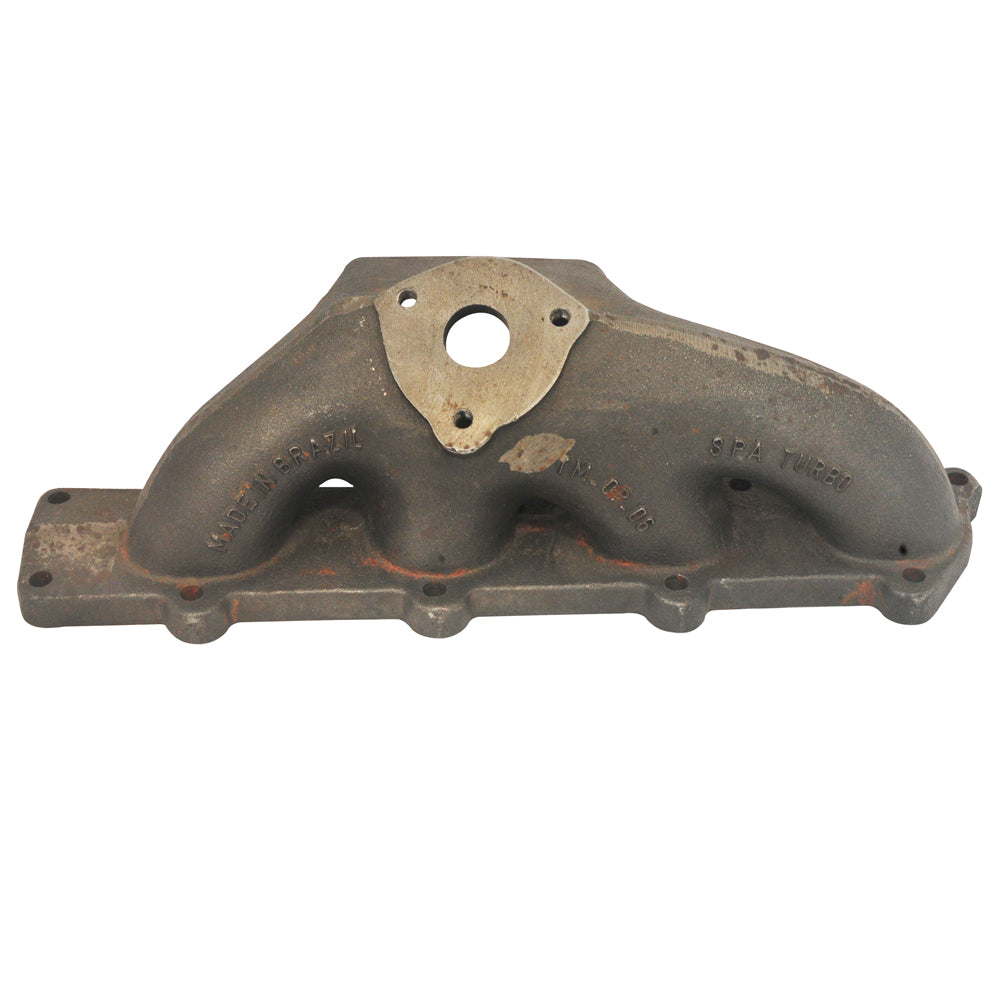

Chevy Euro X20XEV Z20LEX / C18XE T3 turbo manifold

• SPA Turbo has one of the widest selections of turbo manifolds in the world, including hard to find applications. From log style to top mount equal runners manifolds, we stock them. We have been providing quality performance components since 1990.
• The TMOP06 manifold is a GGG40 cast manifold, with a T3 turbocharger Flange; manifold accepts SPA fitting wastegates.
• GGG40 is a ductile, nodular iron grade of German (DIN) standard, which is equal to ASTM A536 60-40-18.
• Manifold will fit Pontiac Grand Am, and Chevy cavalier, Suzuki Foranze / Reno / Optra.
• Turbo flange threads: M10x1.5
  Wastegate flange (if applicable) threads: M8x1.25
