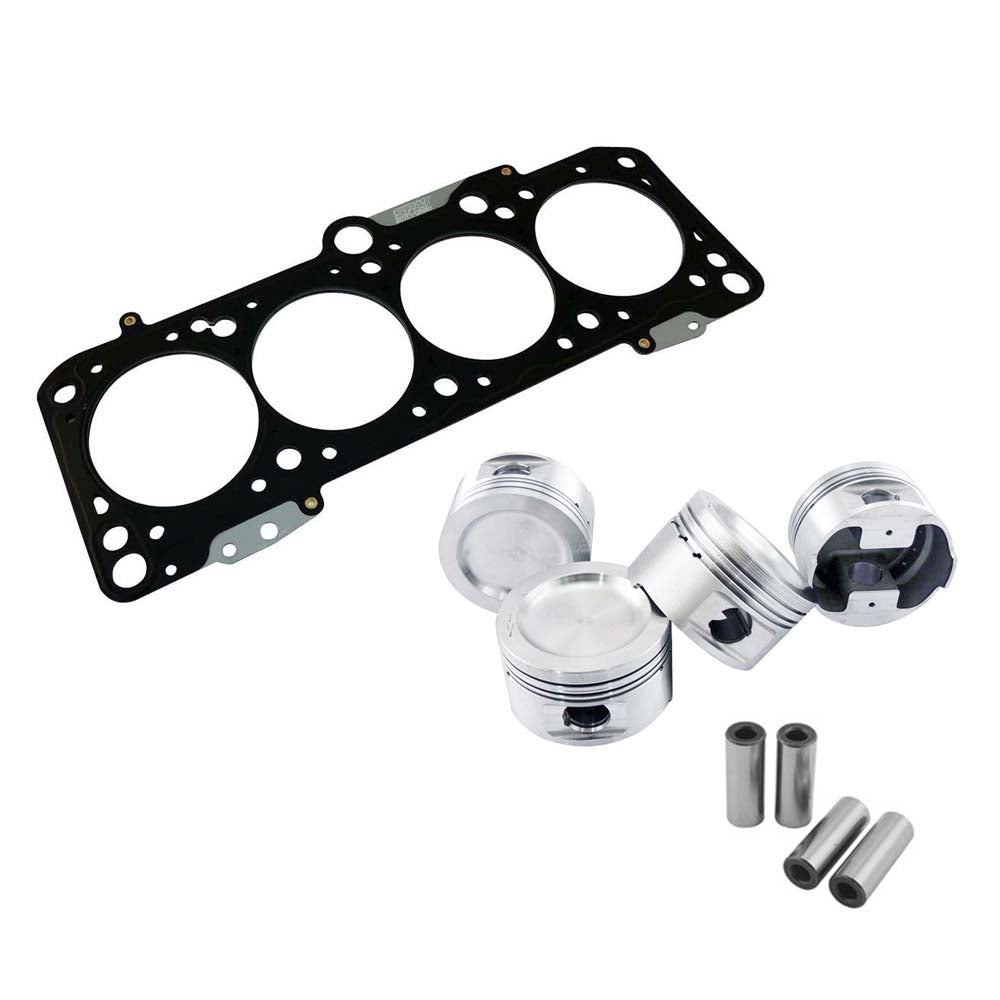

VW 8v/16v ABA ABF MLS decompression Head Gasket Spacer - 1.5mm + Forged piston set 83.5mm 1.8L 8V VW 1.8 8V

Code: CMBEVJ02186017

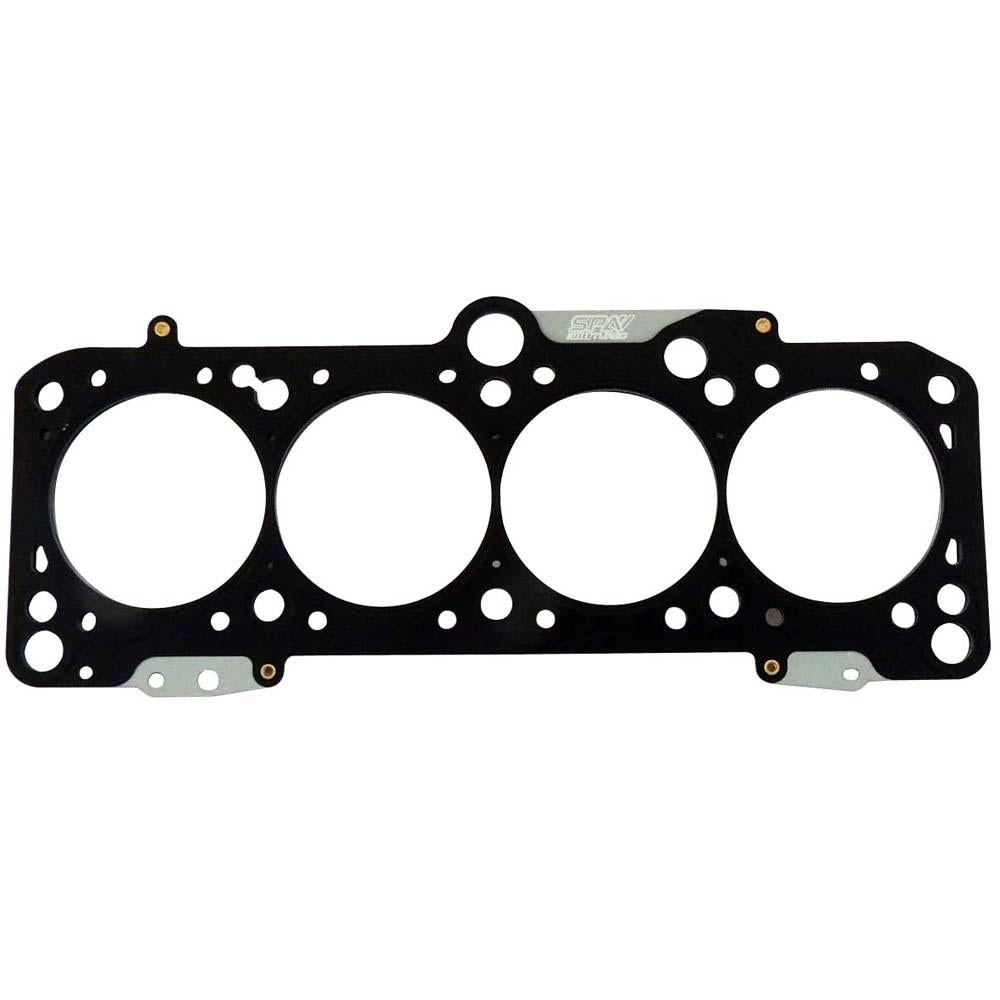

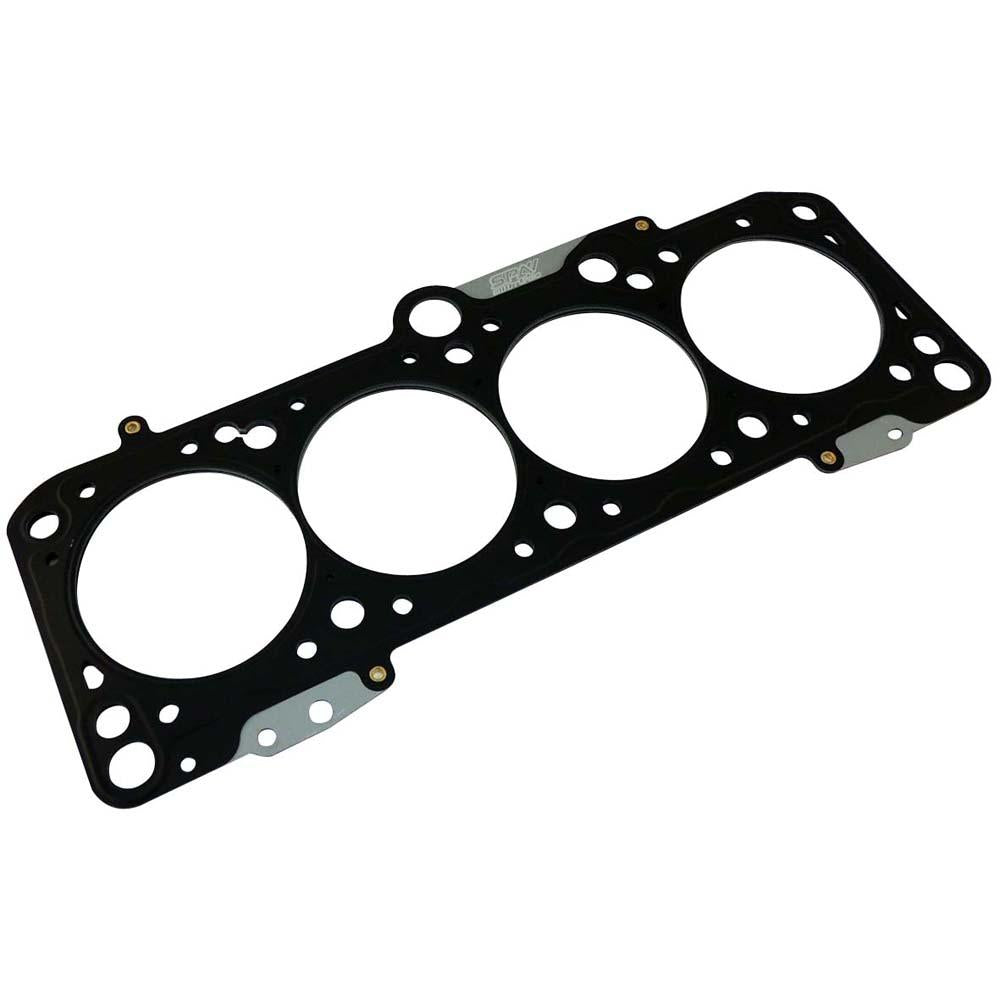

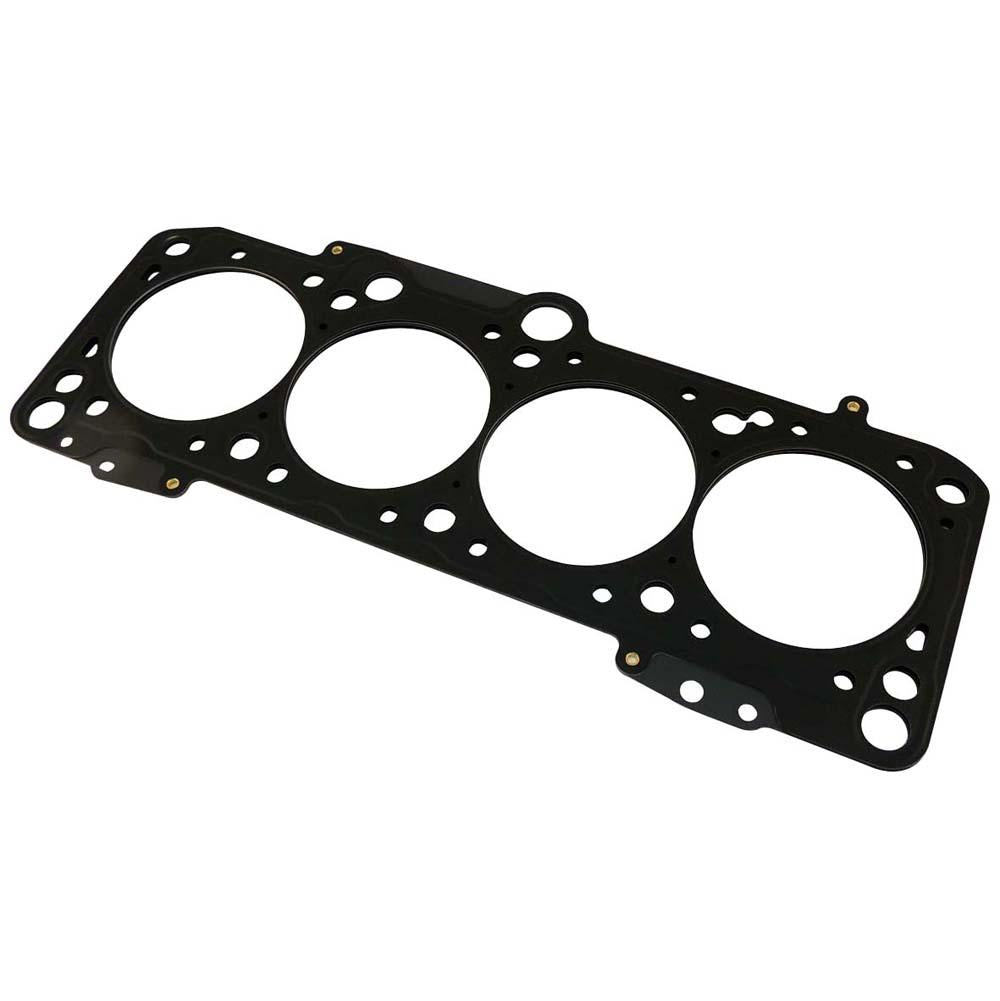

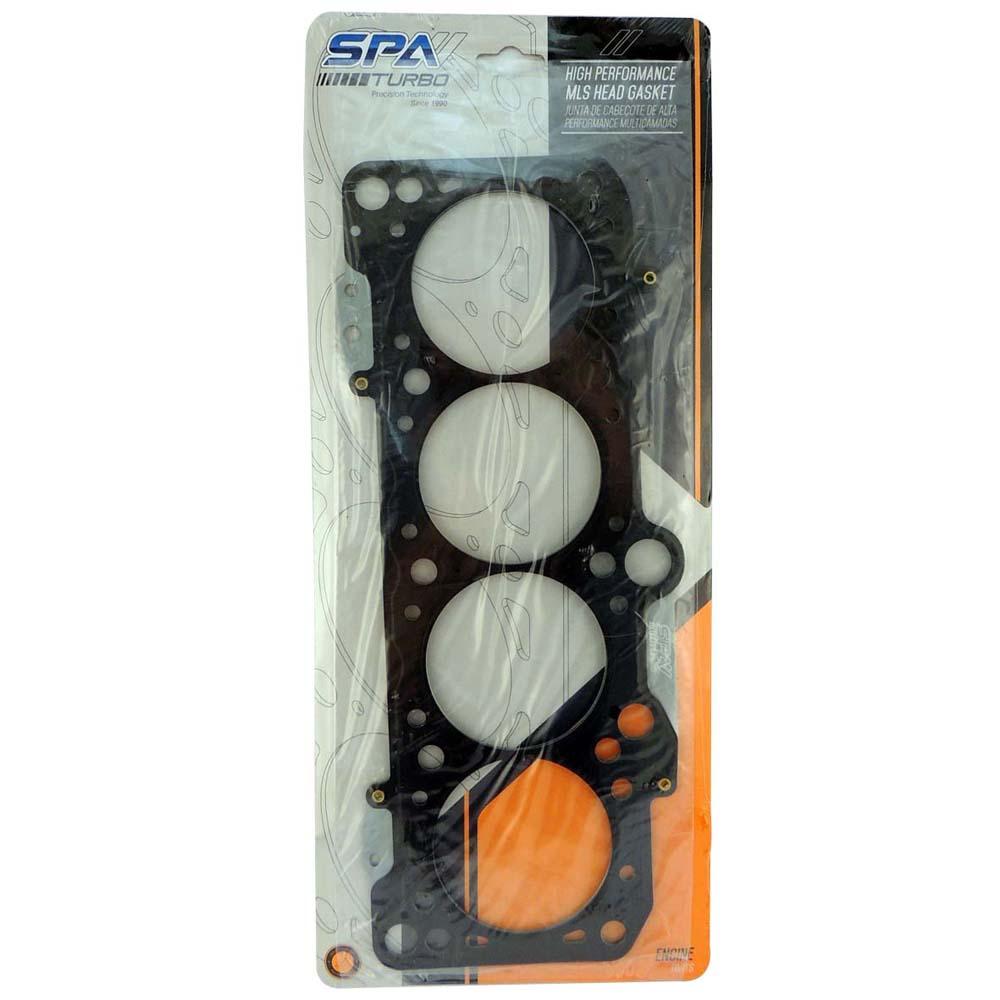

VW 8v/16v ABA ABF MLS decompression Head Gasket Spacer - 1.5mm
  • Special cylinder head gasket for turbo conversion
  • With this special Turbo multilayer metal cylinder head gasket
  • The compression reduction is already integrated in the seal.
  • (Ground and coated)
  • Will accept pistons up to 84.00mm overbored sized, can be used with smaller bores with no problem too.
  • Compression ratio NEW will depend on the engine used
  • Manufacturer: SPA TURBO
  • Engine Code: All 2 liters   Blocks of VW 8V and 16V (some small modifications may be necessary in some cases)
  • 9A, 6A, ACE, 2E, ADY, ACX ABF, AGG, AKR, ABA, ABBOT, ADW, AAD, AAE, CAST OFF, 3A, SD.
  • Similar to OE numbers/Comparable numbers of manufacturers
VW: 048103383B
VW: 053103383
VW: 053103383A
VW: 053103383B
VW: 53103383
ELWIS ROYAL: 0056010
PAYEN : BT810
MEGA CAR: 101030383048B
CORTECO: 414604P
ELRING: 915.590
ELRING: 915.599
FEBI BILSTEIN: 15558
GLAZIER: 50151
GOETZE: 30-027257-20
REINZ: 61-28290-00
SPESSO: 21194/7620
SWAG: 32 91 5558
REINZ: 61-29305-00
  • Available in 0.5mm; 0.9mm; 2.0mm, 2.5mm and 3.4mm thickness
  • We're the  VW Turbo experts!

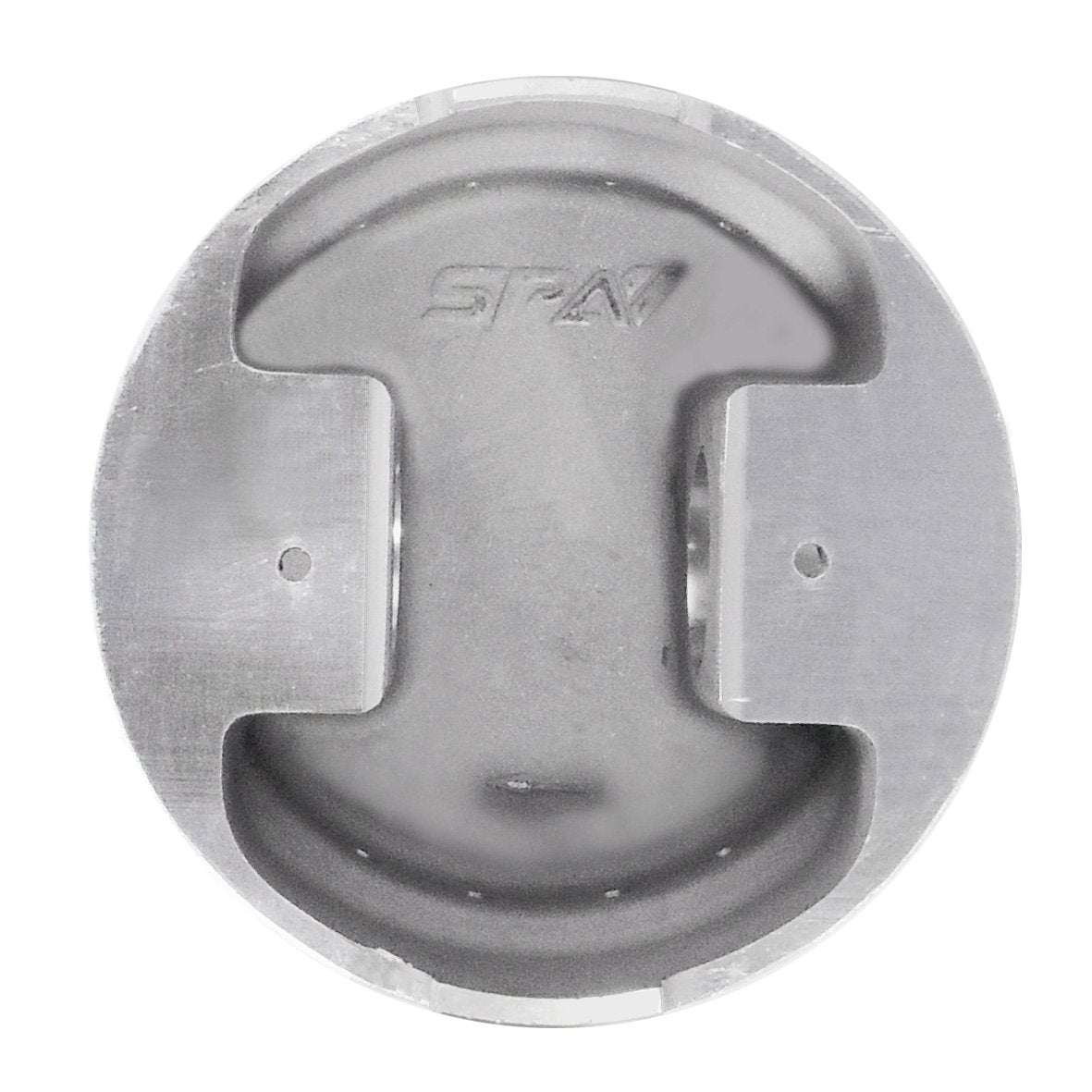

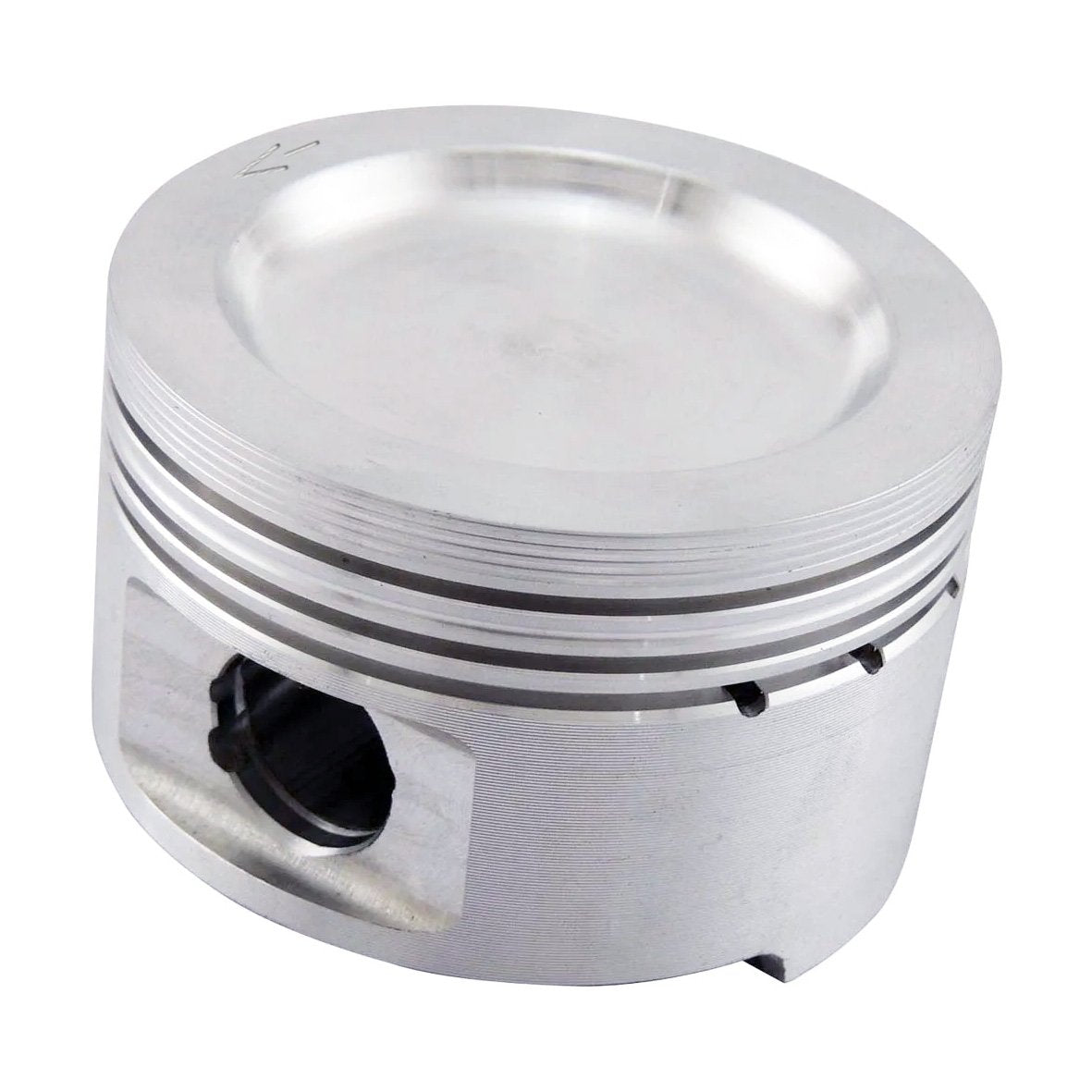

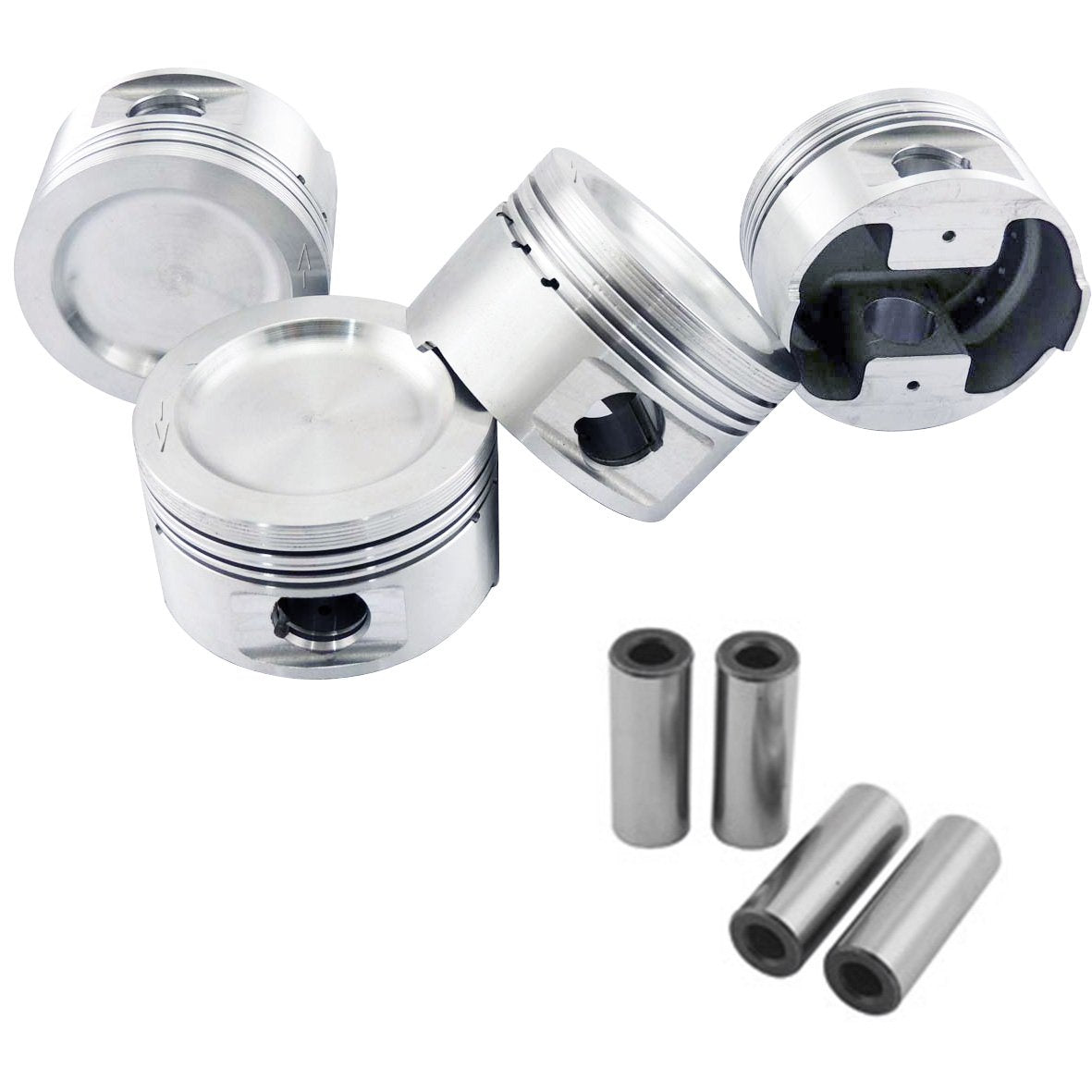

Forged piston set 83.5mm 1.8L 8V VW 1.8 8V



For VW 827 1.8 8V engines

Nominal bore diameter: 83.5mm (increase engine displacement to 1892cc)

Recommended bore to piston to bore clearance: 0.08mm (For nitrous or extreme applications, consult your builder)

Piston ring grooves: 1.5 mm / 1.5 mm / 2.0mm

Compression height: 32.40mm.

Dish volume: 17.3cc

Compression ratio: 8.7:1

Pin offset: 1.10mm.

Material: Forged aluminum 4032 T6.

Average piston weight (unit, without pin): 319g (11.25 oz).

Rated for 1000hp.

Innovative high performance piston skirt design that provides:

1. Smaller piston to bore clearance

2. Less noise

3. Better ring seal

4. Higher power

5. Durability

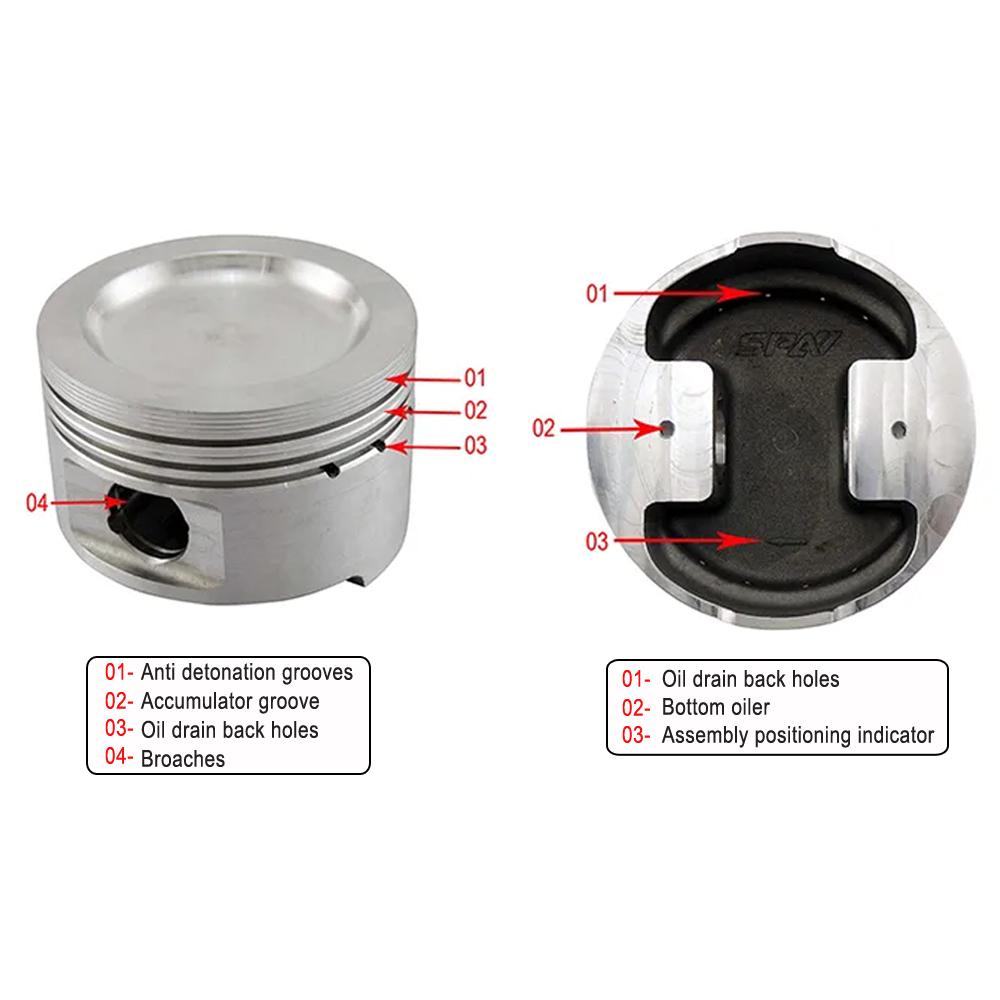

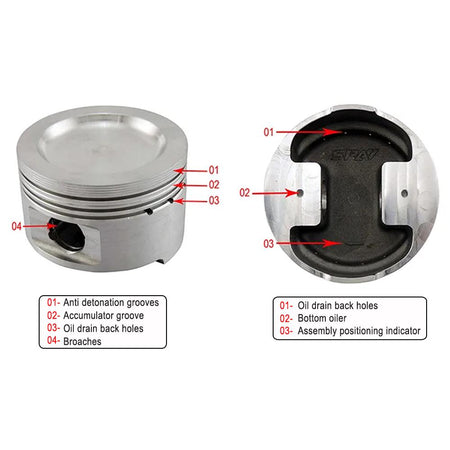

Features:

Anti detonation grooves: protect the top ring by disrupting detonation waves and reduce piston-cylinder contact in high temperatures and engine RPM conditions.

Accumulator groove: accumulates residual combustion gasses reducing top ring flutter and improving seal.

Pin oil lubrication by broaches and oiler to reduce friction and increase durability.


Super A Piston Pin for VW827 (63.45mm) – 4pcs set

For VW 827 engines (Super A pistons)

Dimensions: 63.45mm x 20mm (length x O.D.)

Average unit weight: 116g (4.09 oz)

Rated for 1.000hp

Made from special steel alloys that combines optimal mass with high resistance.



VW 8v/16v ABA ABF MLS decompression Head Gasket Spacer - 1.5mm
  • Special cylinder head gasket for turbo conversion
  • With this special Turbo multilayer metal cylinder head gasket
  • The compression reduction is already integrated in the seal.
  • (Ground and coated)
  • Will accept pistons up to 84.00mm overbored sized, can be used with smaller bores with no problem too.
  • Compression ratio NEW will depend on the engine used
  • Manufacturer: SPA TURBO
  • Engine Code: All 2 liters   Blocks of VW 8V and 16V (some small modifications may be necessary in some cases)
  • 9A, 6A, ACE, 2E, ADY, ACX ABF, AGG, AKR, ABA, ABBOT, ADW, AAD, AAE, CAST OFF, 3A, SD.
  • Similar to OE numbers/Comparable numbers of manufacturers
VW: 048103383B VW: 053103383 VW: 053103383A VW: 053103383B VW: 53103383             ELWIS ROYAL: 0056010 PAYEN : BT810 MEGA CAR: 101030383048B CORTECO: 414604P ELRING: 915.590 ELRING: 915.599 FEBI BILSTEIN: 15558 GLAZIER: 50151 GOETZE: 30-027257-20 REINZ: 61-28290-00 SPESSO: 21194/7620 SWAG: 32 91 5558 REINZ: 61-29305-00
  • Available in 0.5mm; 0.9mm; 2.0mm, 2.5mm and 3.4mm thickness
  • We're the  VW Turbo experts!



Forged piston set 83.5mm 1.8L 8V VW 1.8 8V



For VW 827 1.8 8V engines
Nominal bore diameter: 83.5mm (increase engine displacement to 1892cc)

Recommended bore to piston to bore clearance: 0.08mm (For nitrous or extreme applications, consult your builder)

Piston ring grooves: 1.5 mm / 1.5 mm / 2.0mm

Compression height: 32.40mm.

Dish volume: 17.3cc

Compression ratio: 8.7:1

Pin offset: 1.10mm.

Material: Forged aluminum 4032 T6.

Average piston weight (unit, without pin): 319g (11.25 oz).

Rated for 1000hp.

Innovative high performance piston skirt design that provides:

1. Smaller piston to bore clearance

2. Less noise

3. Better ring seal

4. Higher power

5. Durability


Features:

Anti detonation grooves: protect the top ring by disrupting detonation waves and reduce piston-cylinder contact in high temperatures and engine RPM conditions.

Accumulator groove: accumulates residual combustion gasses reducing top ring flutter and improving seal.

Pin oil lubrication by broaches and oiler to reduce friction and increase durability.


Super A Piston Pin for VW827 (63.45mm) – 4pcs set

For VW 827 engines (Super A pistons)

Dimensions: 63.45mm x 20mm (length x O.D.)

Average unit weight: 116g (4.09 oz)

Rated for 1.000hp

Made from special steel alloys that combines optimal mass with high resistance.
