VW 8V 276 N/A application hydraulic tappets performance camshaft + High Compression Head Gasket - 0.5mm + 118mm head stud set VW 8V 276 N/A application hydraulic tappets performance camshaft + High Compression Head Gasket - 0.5mm + 118mm head stud set SPA PERFORMANCE VW 8V 276 N/A application hydraulic tappets performance camshaft Application: EA 827 engines Capacities 1781-1847-1984cc from 19868V Engines with hydraulic tappetsVW Golf, Corrado, Audi 80, 100, 5000, Quattro, Jetta, Passat, Scirocco, Sharon, Vento, Gol, Pointer, Saveiro. Duration intake: 276 degrees Duration exhaust: 276 degreesIntake valve lift: 11.50mmExhaust valve lift: 11.50mmlobe centers: 110 degreesvalve timingIntake open: 27 degreesIntake closes: 69 degreesExhaust open: 67 degreesExhaust close: 29 degreesValve clearance: hydraulic lifters*Base circle: 34mmMade of 1045 quenched steel Billet machined52-58 HRCIMPORTANT: this is a performance camshaft, not a OEM replacement, installation may require ECU work, cylinder head work, special lifters and springs, no instructions included, no other parts included.   Attention: this camshaft can be used with solid lifters as long as valve lash caps (EMPI 4006, or similar) are assembled and adjusted individually. We strongly recommend that this should be done by a proper professional in order to achieve the correct valve lash values.   VW 8v/16v ABA ABF MLS High Compression Head Gasket - 0.5mm   Special cylinder head gasket for turbo conversion With this special Turbo multilayer metal cylinder head gasket The compression raise is already integrated in the seal. (Ground and coated) Will accept pistons up to 84.00mm overbored sized, can be used with smaller bores with no problem too. Compression ratio NEW will depend on the engine used Manufacturer: SPA TURBO Engine Code: All 2 liters   Blocks of VW 8V and 16V (some small modifications may be necessary in some cases) 9A, 6A, ACE, 2E, ADY, ACX ABF, AGG, AKR, ABA, ABBOT, ADW, AAD, AAE, CAST OFF, 3A, SD. Similar to OE numbers/Comparable numbers of manufacturers VW: 048103383B VW: 053103383 VW: 053103383A VW: 053103383B VW: 53103383             ELWIS ROYAL: 0056010 PAYEN : BT810 MEGA CAR: 101030383048B CORTECO: 414604P ELRING: 915.590 ELRING: 915.599 FEBI BILSTEIN: 15558 GLAZIER: 50151 GOETZE: 30-027257-20 REINZ: 61-28290-00 SPESSO: 21194/7620 SWAG: 32 91 5558 REINZ: 61-29305-00 Available in 0.9mm; 1.5mm; 2.0mm, 2.5mm and 3.4mm thickness We're the  VW Turbo experts!   VW MKI MKII GTI PB 1.8L 2.0L 8v SOHC 118mm head stud set   VW cylinder head stud set, available in either 118mm (this item)  or   136mm length for taller blocks.  They will fit earlier and old style VW 8V cylinder heads. The set contains 10 Studs,  10 washers and 12 point nuts, (you will need a 1/2 or 13mm 12 point socket). The studs are for M11 threads, please confirm with your OEM bolts before purchase. These will replace 93mm OEM bolts. Maximum Torque - 72 ft/lb

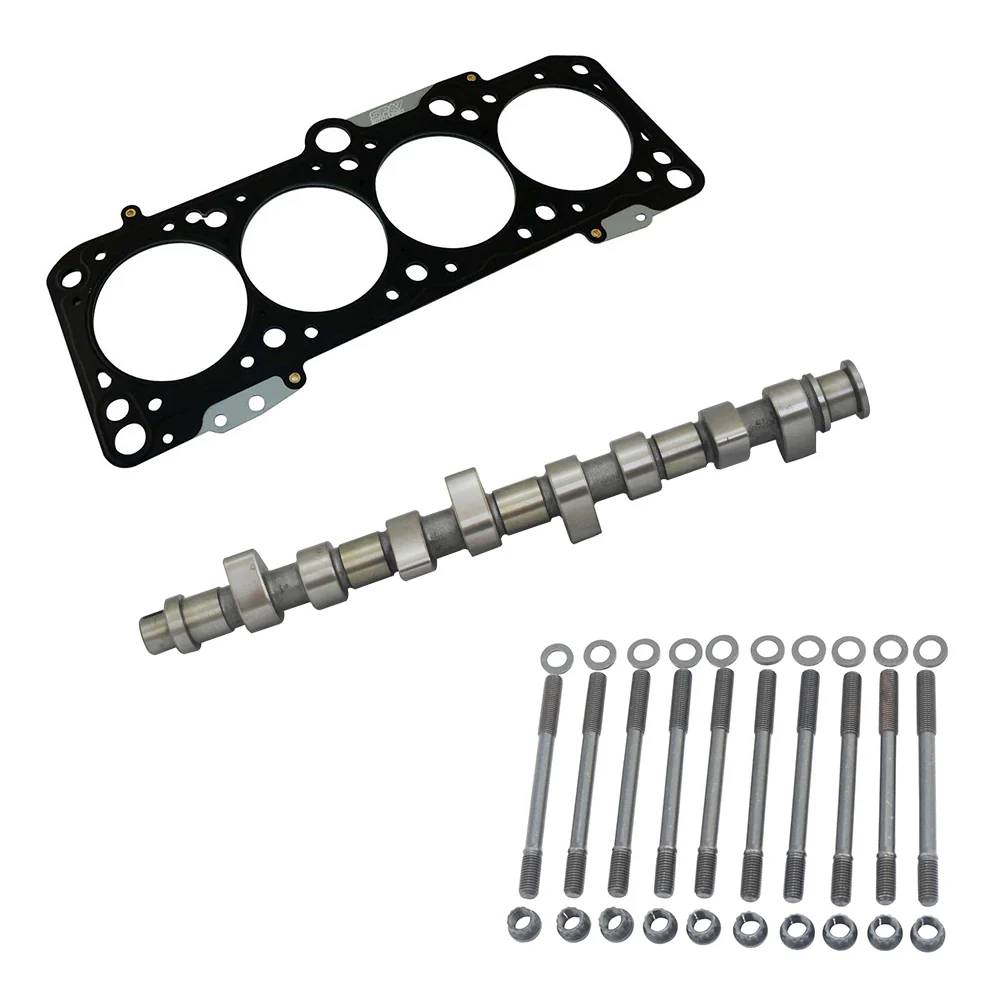

VW 8V 276 N/A application hydraulic tappets performance camshaft + High Compression Head Gasket - 0.5mm + 118mm head stud set

Code: CMBUSACMD008

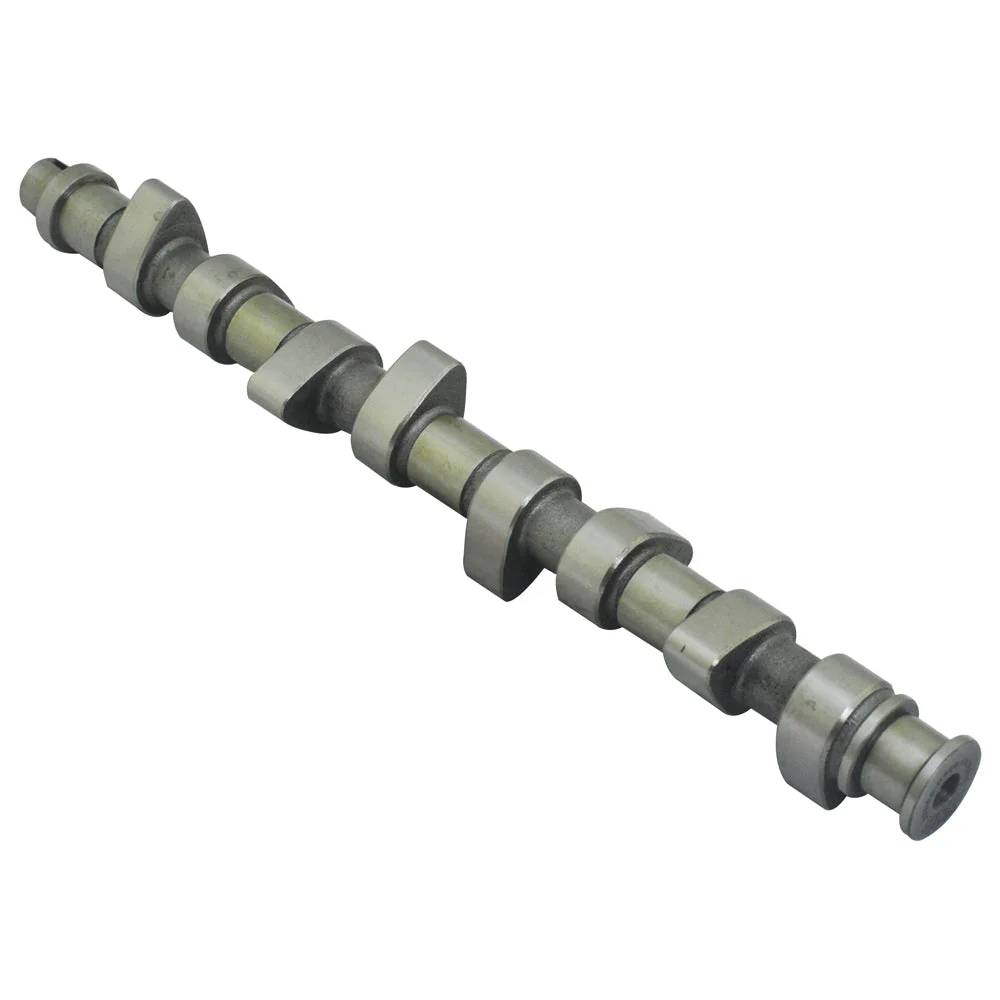

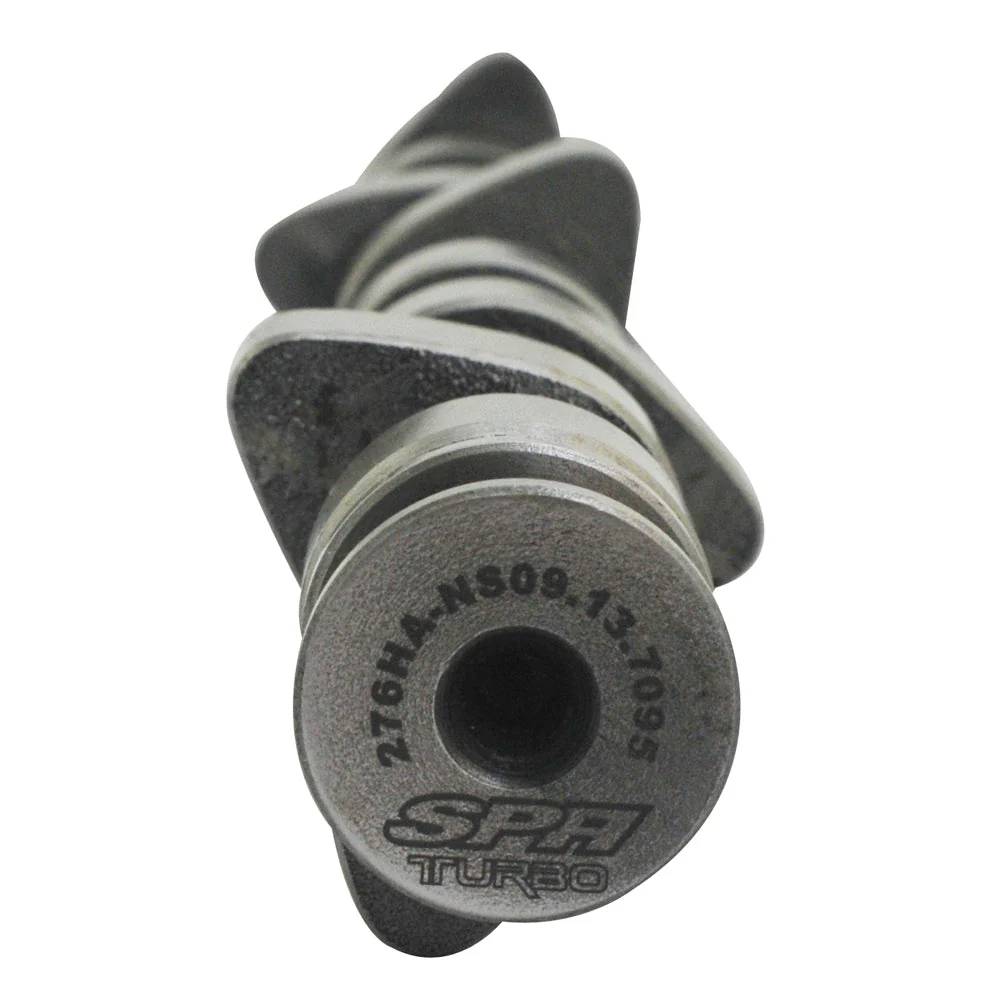

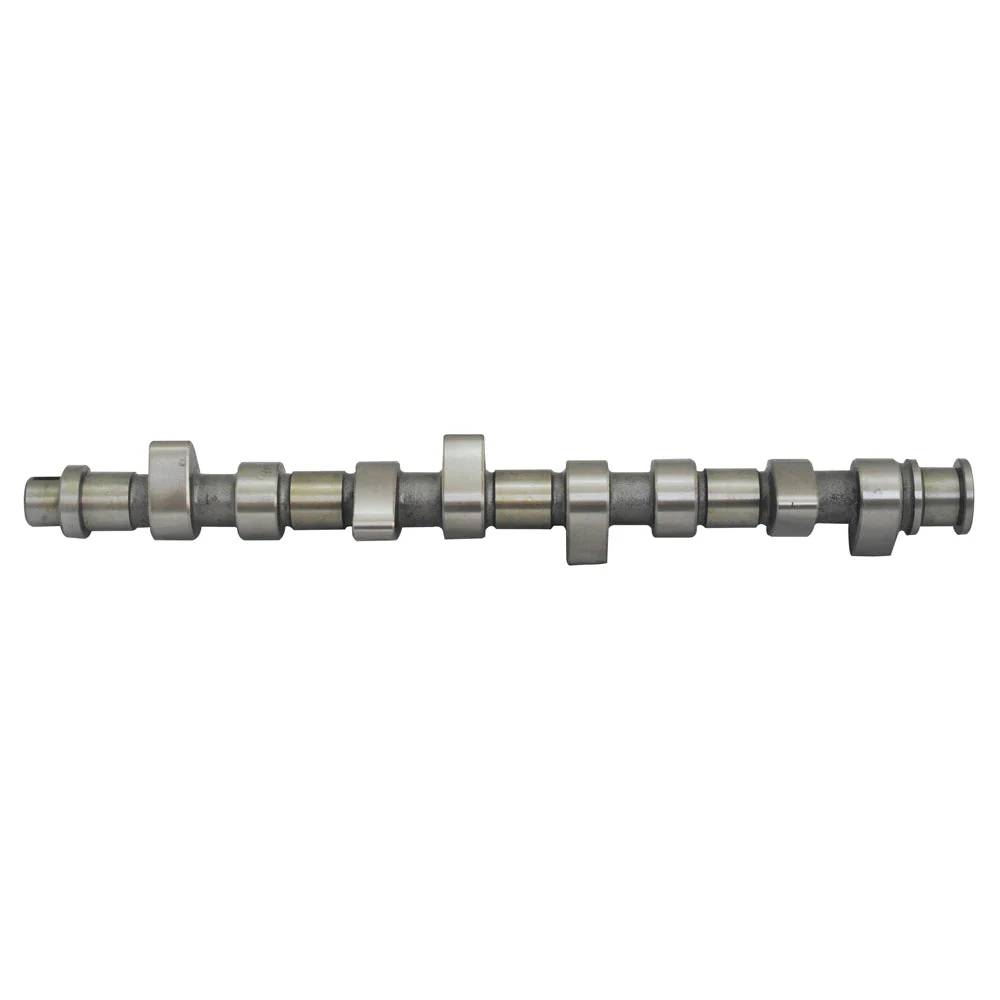

VW 8V 276 N/A application hydraulic tappets performance camshaft

Application: EA 827 engines Capacities 1781-1847-1984cc from 1986
8V Engines with hydraulic tappets

VW Golf, Corrado, Audi 80, 100, 5000, Quattro, Jetta, Passat, Scirocco, Sharon, Vento, Gol, Pointer, Saveiro.

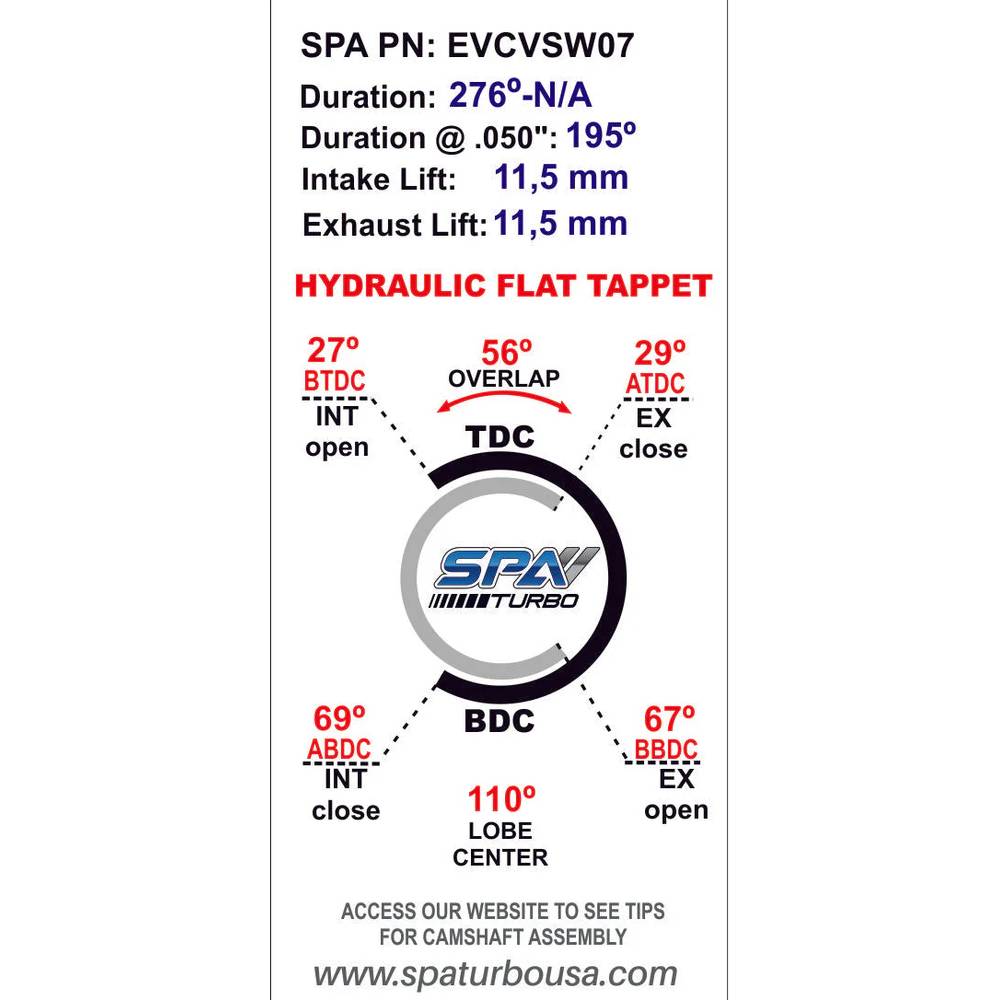

Duration intake: 276 degrees
Duration exhaust: 276 degrees
Intake valve lift: 11.50mm
Exhaust valve lift: 11.50mm
lobe centers: 110 degrees

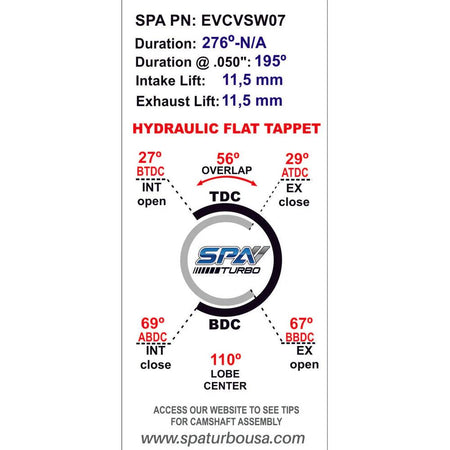

valve timing
Intake open: 27 degrees
Intake closes: 69 degrees
Exhaust open: 67 degrees
Exhaust close: 29 degrees
Valve clearance: hydraulic lifters*
Base circle: 34mm
Made of 1045 quenched steel
Billet machined
52-58 HRC

IMPORTANT: this is a performance camshaft, not a OEM replacement, installation may require ECU work, cylinder head work, special lifters and springs, no instructions included, no other parts included.



    Attention: this camshaft can be used with solid lifters as long as valve lash caps (EMPI 4006, or similar) are assembled and adjusted individually. We strongly recommend that this should be done by a proper professional in order to achieve the correct valve lash values.

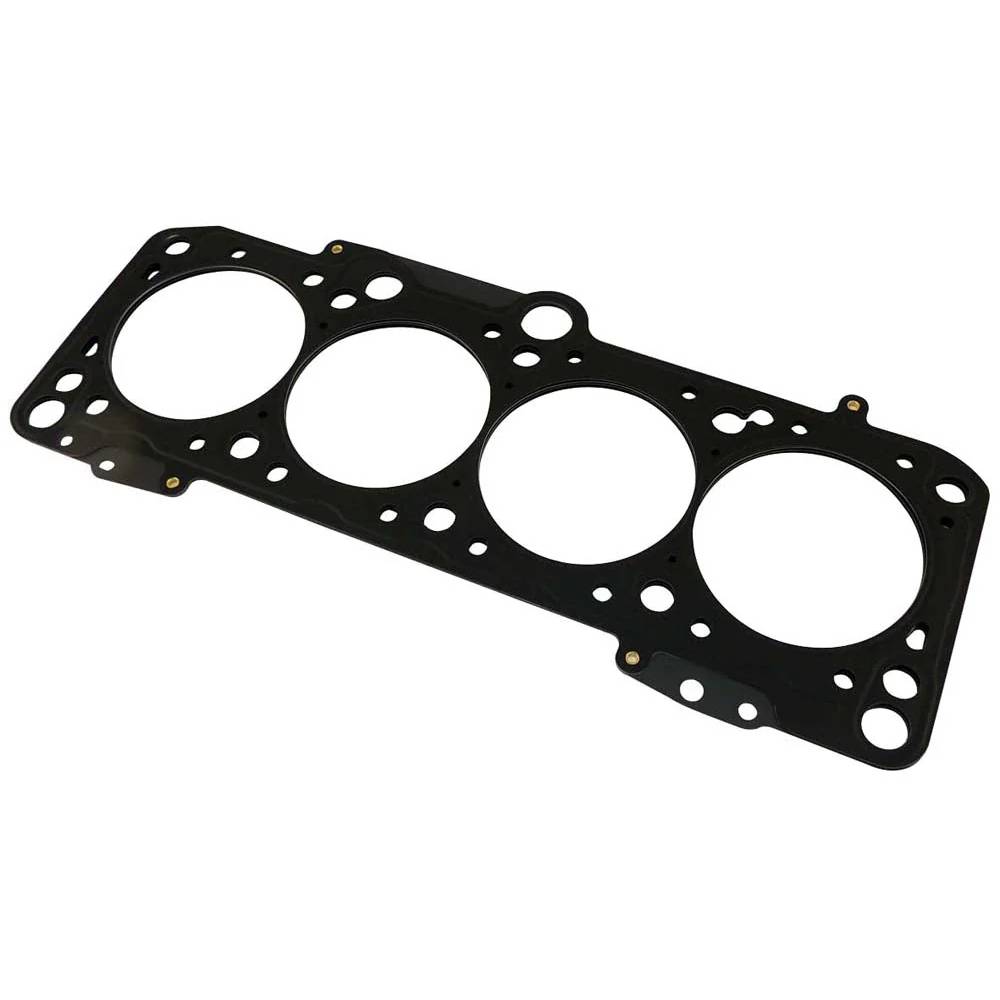

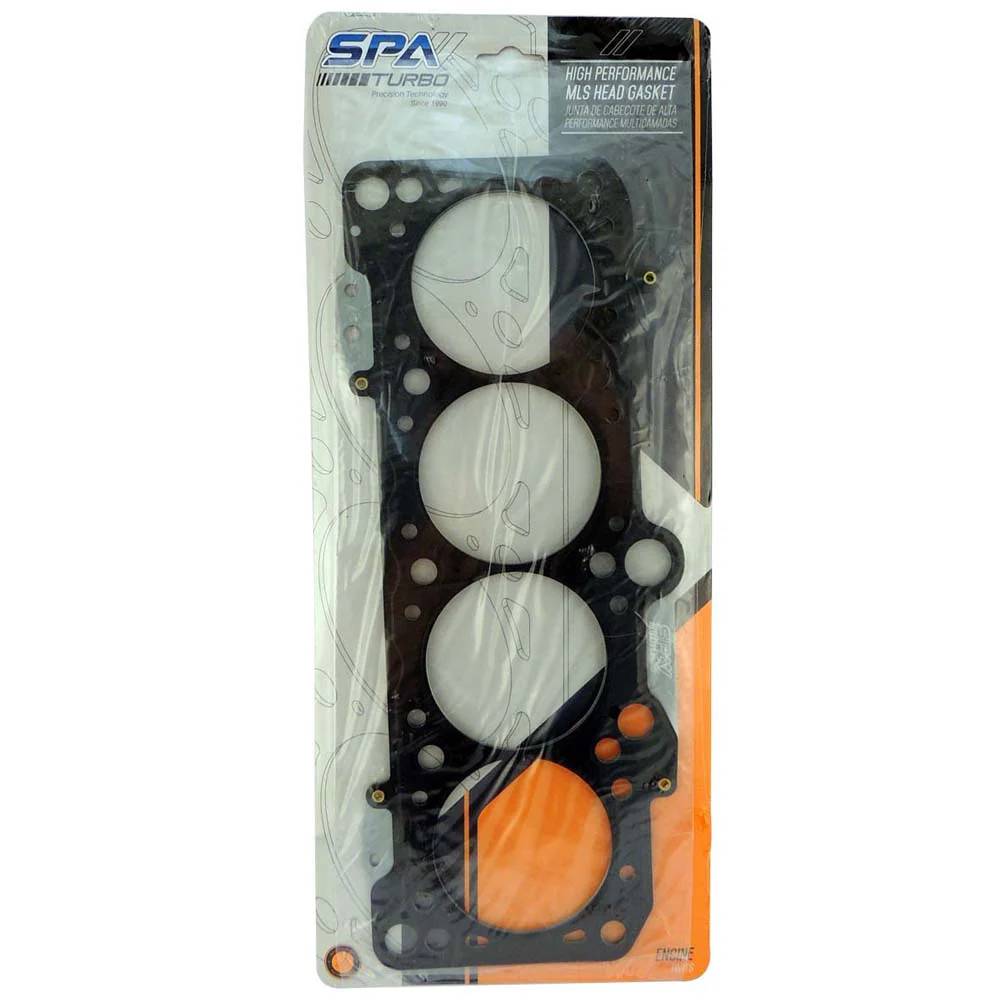

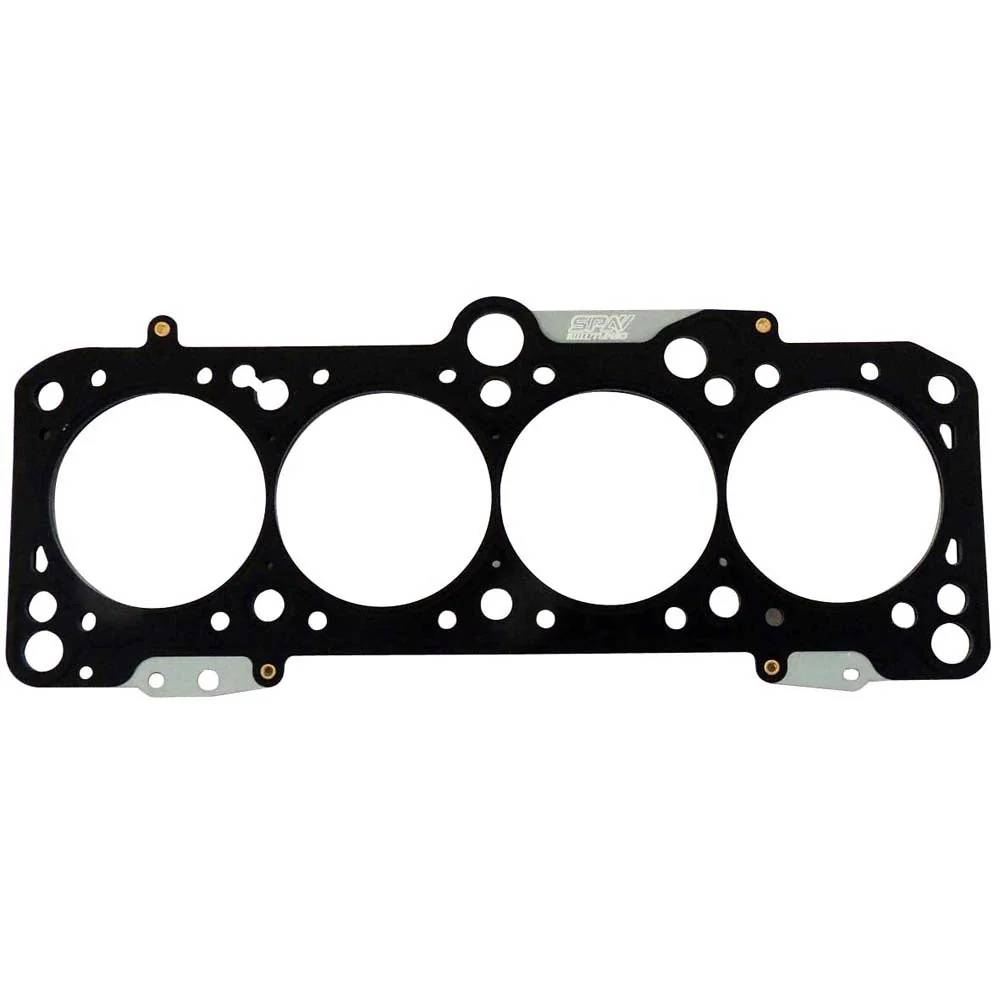

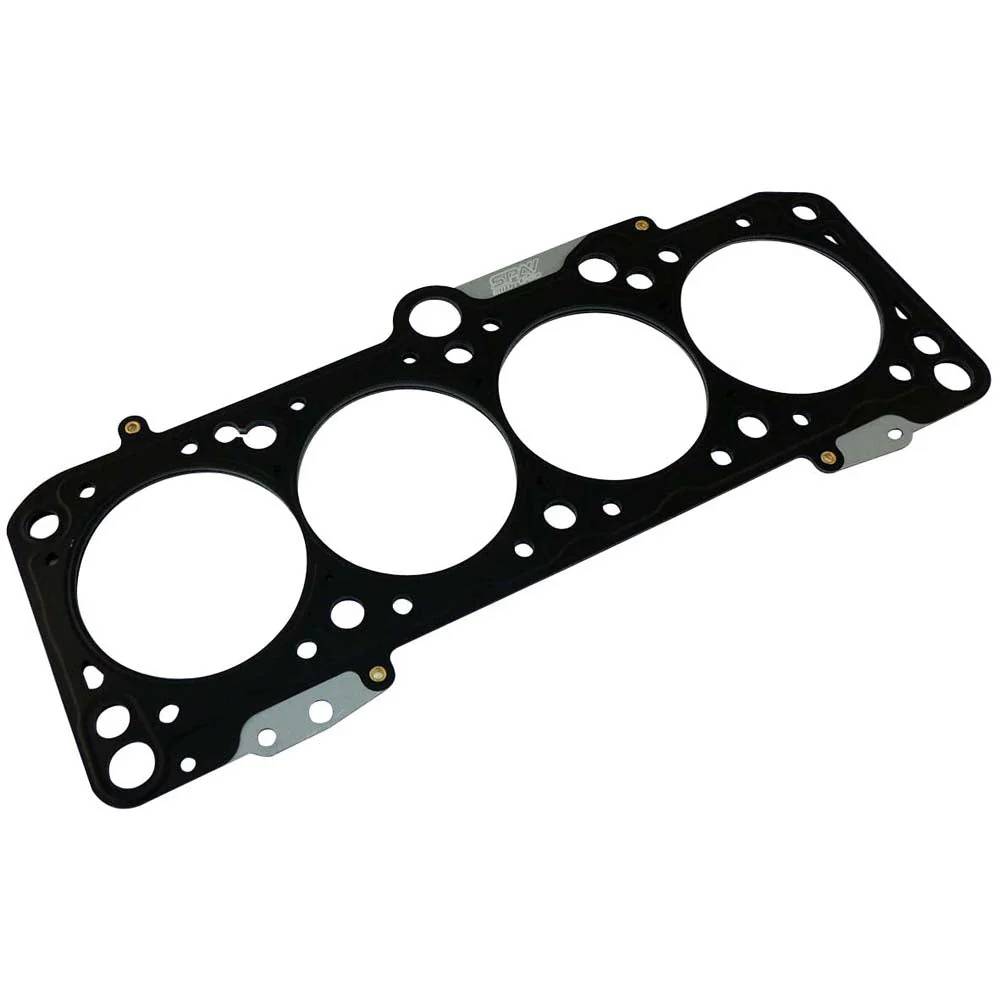

    VW 8v/16v ABA ABF MLS High Compression Head Gasket - 0.5mm



    • Special cylinder head gasket for turbo conversion
    • With this special Turbo multilayer metal cylinder head gasket
    • The compression raise is already integrated in the seal.
    • (Ground and coated)
    • Will accept pistons up to 84.00mm overbored sized, can be used with smaller bores with no problem too.
    • Compression ratio NEW will depend on the engine used
    • Manufacturer: SPA TURBO
    • Engine Code: All 2 liters   Blocks of VW 8V and 16V (some small modifications may be necessary in some cases)
    • 9A, 6A, ACE, 2E, ADY, ACX ABF, AGG, AKR, ABA, ABBOT, ADW, AAD, AAE, CAST OFF, 3A, SD.
    • Similar to OE numbers/Comparable numbers of manufacturers
    VW: 048103383B
    VW: 053103383
    VW: 053103383A
    VW: 053103383B
    VW: 53103383
    ELWIS ROYAL: 0056010
    PAYEN : BT810
    MEGA CAR: 101030383048B
    CORTECO: 414604P
    ELRING: 915.590
    ELRING: 915.599
    FEBI BILSTEIN: 15558
    GLAZIER: 50151
    GOETZE: 30-027257-20
    REINZ: 61-28290-00
    SPESSO: 21194/7620
    SWAG: 32 91 5558
    REINZ: 61-29305-00
    • Available in 0.9mm; 1.5mm; 2.0mm, 2.5mm and 3.4mm thickness
    • We're the  VW Turbo experts!

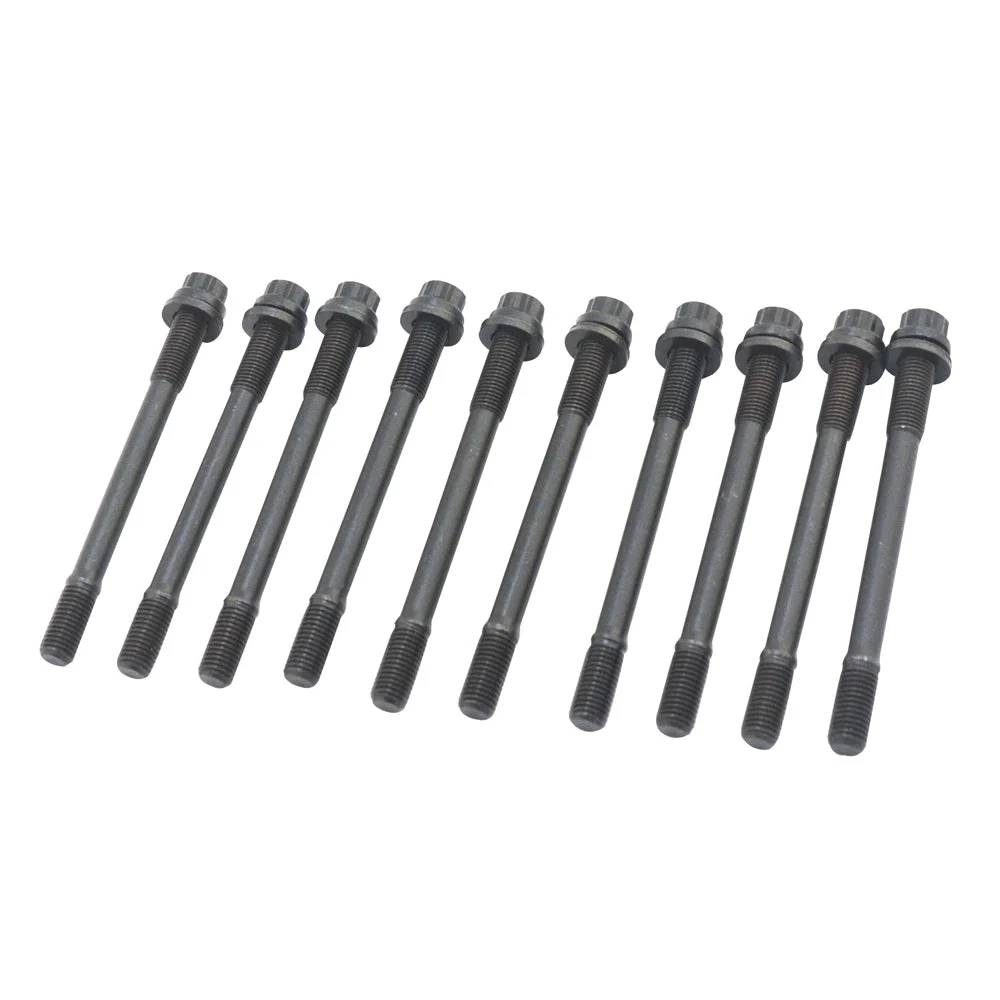

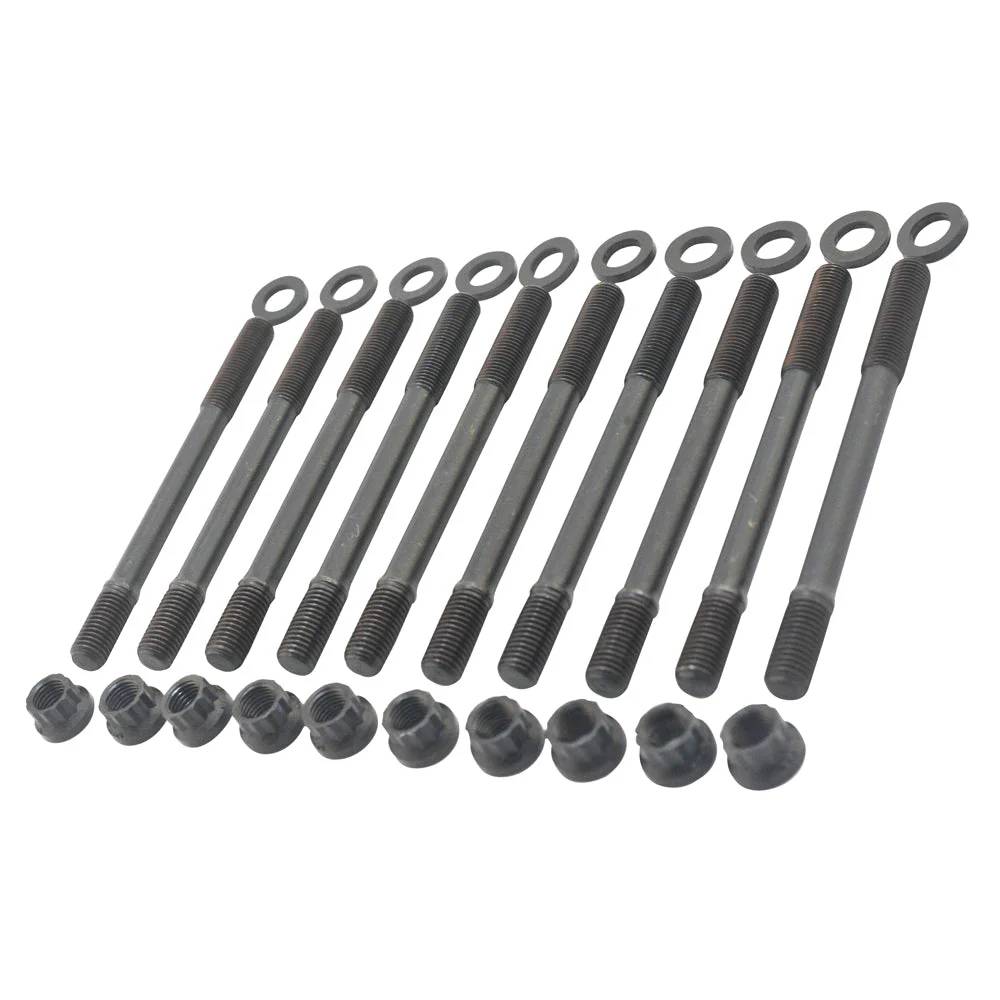

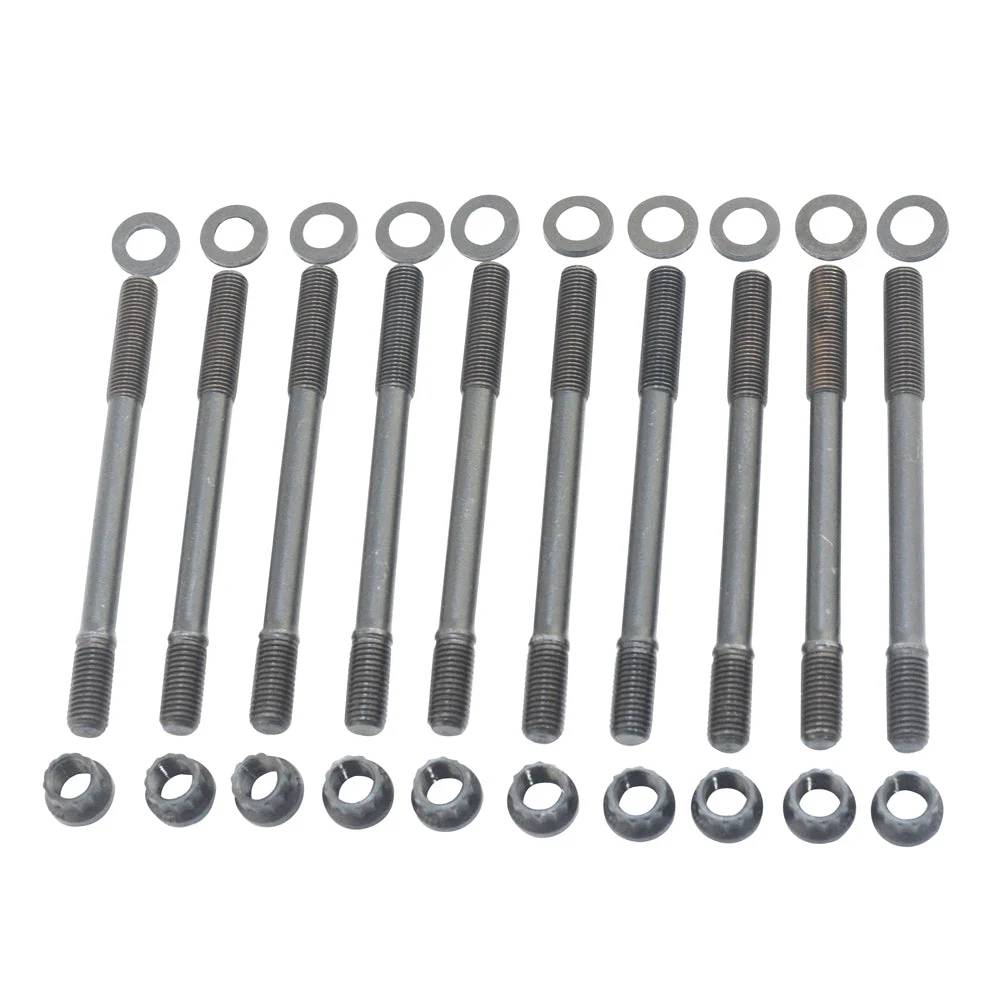

    VW MKI MKII GTI PB 1.8L 2.0L 8v SOHC 118mm head stud set



    • VW cylinder head stud set, available in either 118mm (this item)  or   136mm length for taller blocks.
    • They will fit earlier and old style VW 8V cylinder heads.
    • The set contains 10 Studs,  10 washers and 12 point nuts, (you will need a 1/2 or 13mm 12 point socket).
    • The studs are for M11 threads, please confirm with your OEM bolts before purchase.
    • These will replace 93mm OEM bolts.
    • Maximum Torque - 72 ft/lb



    VW 8V 276 N/A application hydraulic tappets performance camshaft

    Application: EA 827 engines Capacities 1781-1847-1984cc from 1986
    8V Engines with hydraulic tappets

    VW Golf, Corrado, Audi 80, 100, 5000, Quattro, Jetta, Passat, Scirocco, Sharon, Vento, Gol, Pointer, Saveiro.

    Duration intake: 276 degrees
    Duration exhaust: 276 degrees
    Intake valve lift: 11.50mm
    Exhaust valve lift: 11.50mm
    lobe centers: 110 degrees
    valve timing
    Intake open: 27 degrees
    Intake closes: 69 degrees
    Exhaust open: 67 degrees
    Exhaust close: 29 degrees
    Valve clearance: hydraulic lifters*
    Base circle: 34mm
    Made of 1045 quenched steel
    Billet machined
    52-58 HRC

    IMPORTANT: this is a performance camshaft, not a OEM replacement, installation may require ECU work, cylinder head work, special lifters and springs, no instructions included, no other parts included.



      Attention: this camshaft can be used with solid lifters as long as valve lash caps (EMPI 4006, or similar) are assembled and adjusted individually. We strongly recommend that this should be done by a proper professional in order to achieve the correct valve lash values.



      VW 8v/16v ABA ABF MLS High Compression Head Gasket - 0.5mm



      • Special cylinder head gasket for turbo conversion
      • With this special Turbo multilayer metal cylinder head gasket
      • The compression raise is already integrated in the seal.
      • (Ground and coated)
      • Will accept pistons up to 84.00mm overbored sized, can be used with smaller bores with no problem too.
      • Compression ratio NEW will depend on the engine used
      • Manufacturer: SPA TURBO
      • Engine Code: All 2 liters   Blocks of VW 8V and 16V (some small modifications may be necessary in some cases)
      • 9A, 6A, ACE, 2E, ADY, ACX ABF, AGG, AKR, ABA, ABBOT, ADW, AAD, AAE, CAST OFF, 3A, SD.
      • Similar to OE numbers/Comparable numbers of manufacturers
      VW: 048103383B VW: 053103383 VW: 053103383A VW: 053103383B VW: 53103383             ELWIS ROYAL: 0056010 PAYEN : BT810 MEGA CAR: 101030383048B CORTECO: 414604P ELRING: 915.590 ELRING: 915.599 FEBI BILSTEIN: 15558 GLAZIER: 50151 GOETZE: 30-027257-20 REINZ: 61-28290-00 SPESSO: 21194/7620 SWAG: 32 91 5558 REINZ: 61-29305-00
      • Available in 0.9mm; 1.5mm; 2.0mm, 2.5mm and 3.4mm thickness
      • We're the  VW Turbo experts!



      VW MKI MKII GTI PB 1.8L 2.0L 8v SOHC 118mm head stud set



      • VW cylinder head stud set, available in either 118mm (this item)  or   136mm length for taller blocks.
      • They will fit earlier and old style VW 8V cylinder heads.
      • The set contains 10 Studs,  10 washers and 12 point nuts, (you will need a 1/2 or 13mm 12 point socket).
      • The studs are for M11 threads, please confirm with your OEM bolts before purchase.
      • These will replace 93mm OEM bolts.
      • Maximum Torque - 72 ft/lb
