VW 8V 266 NA or turbocharged engines Hydraulic tappets performance camshaft
Application: EA 827 engines Capacities 1781-1847-1984cc from 1986
8V Engines with hydraulic tappets
VW Golf, Corrado, Audi 80, 100, 5000, Quattro, Jetta, Passat, Scirocco, Sharon, Vento, Gol, Pointer, Saveiro.
Duration intake: 266 degrees
Duration exhaust: 266 degrees
Intake valve lift: 11.15mm
Exhaust valve lift: 11.15mm
Lobe centers: 110 degrees

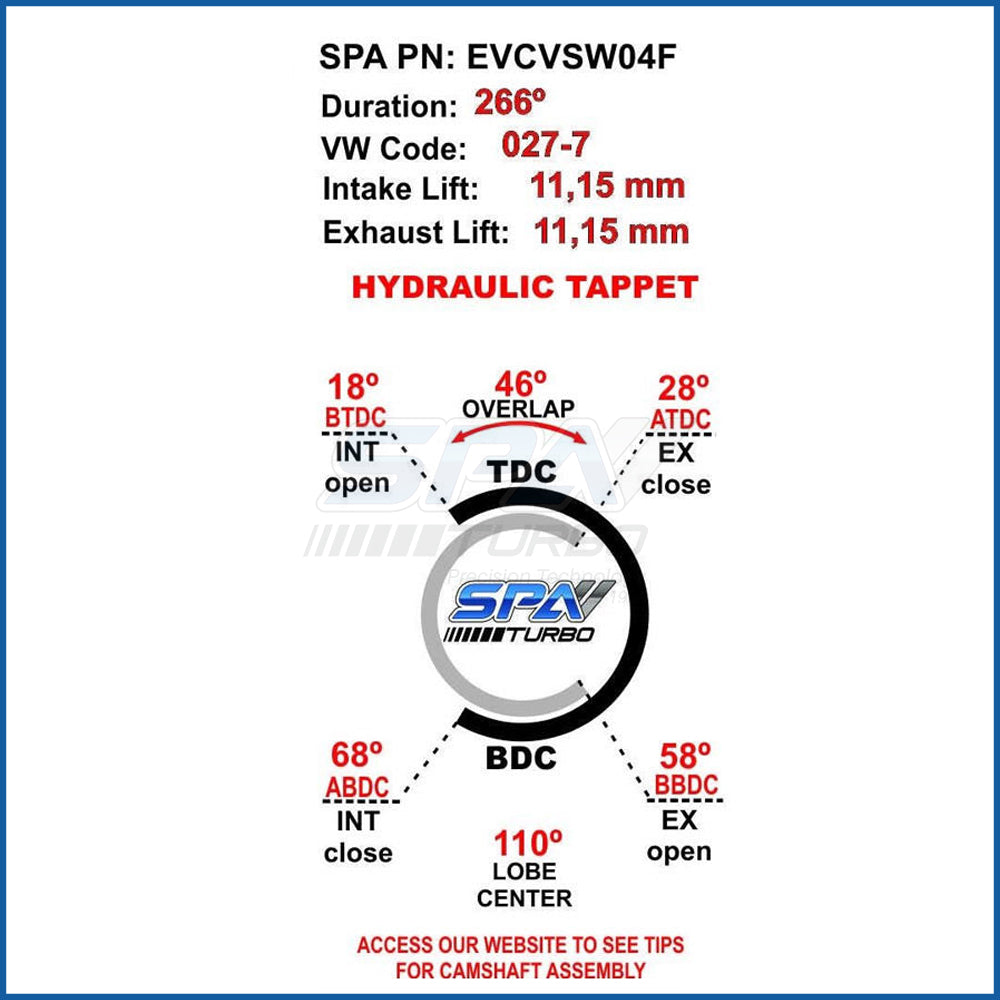

Valve timing
Intake open: 18 degrees
Intake closes:‚ 68 degrees
Exhaust open:‚ 58 degrees
Exhaust close:‚ 28 degrees
Valve clearance: hydraulic lifters*
Base circle: 34mm
Made of 1045 quenched steel
Billet machined
52-58 HRC
IMPORTANT: this is a performance camshaft, not a OEM replacement, installation may require ECU work, cylinder head work, special lifters and springs, no instructions included, no other parts included.
‚
‚
Attention: this camshaft can be used with solid lifters as long as valve lash caps (EMPI 4006, or similar) are assembled and adjusted individually. We strongly recommend that this should be done by a proper professional in order to achieve the correct valve lash values.
All SPA Performance¢â‚¬s camshafts includes CMD anti scoring lube #3
Designed for extreme pressure applications, it¢â‚¬s perfect for camshafts break in procedures, as it withstands pressure values of 40,000 to 50,000 psi, thus avoiding scoring on the high pressure cams - followers interface.
‚
