VW/AUDI EA888 GEN 3 2.0T TSI/FSI ALUMINUM INTAKE MANIFOLD - OEM THROTTLE + THERMAL SPACER KIT - PRE SALE
-
Pre-Sale
Take advantage of this great opportunity and buy this product at an unbeatable price! This item will be available for delivery approximately 05/30/2026.
Another major release from SPA Performance for VW/Audi equipped with the EA888 Gen 3 engines!

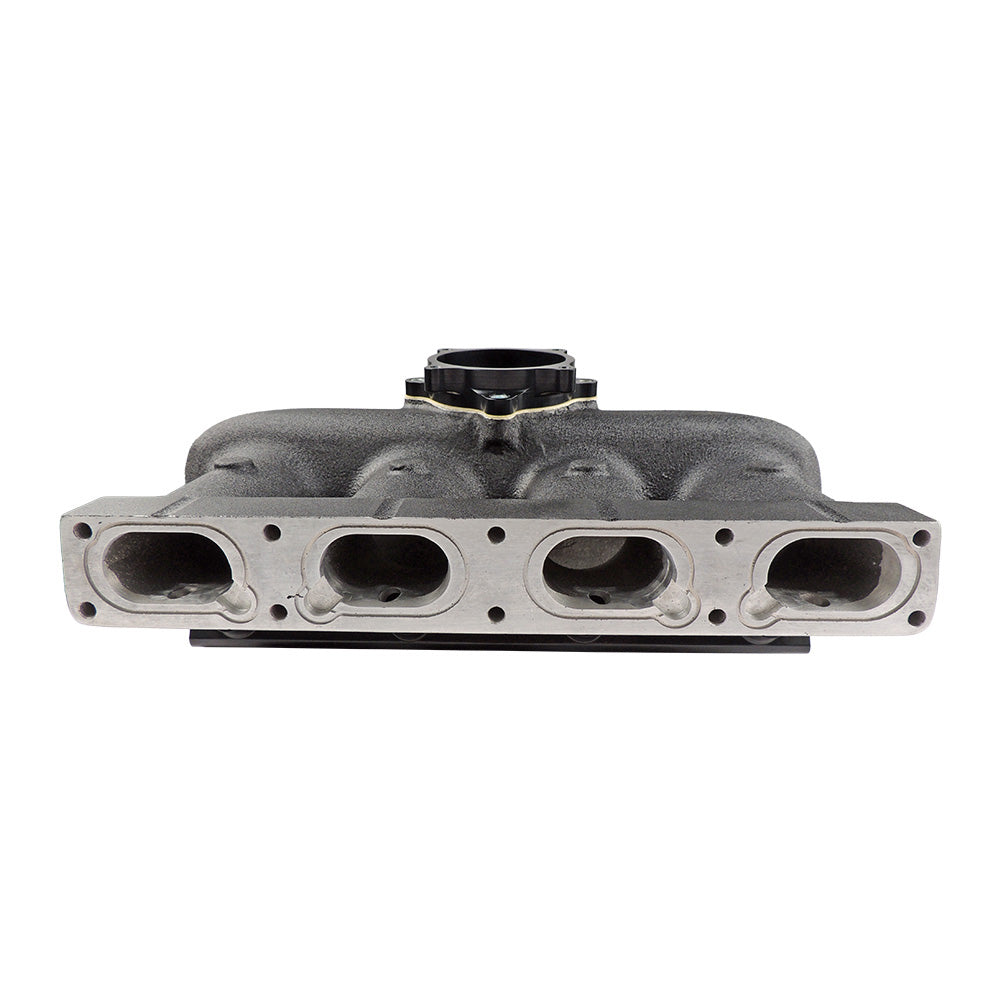

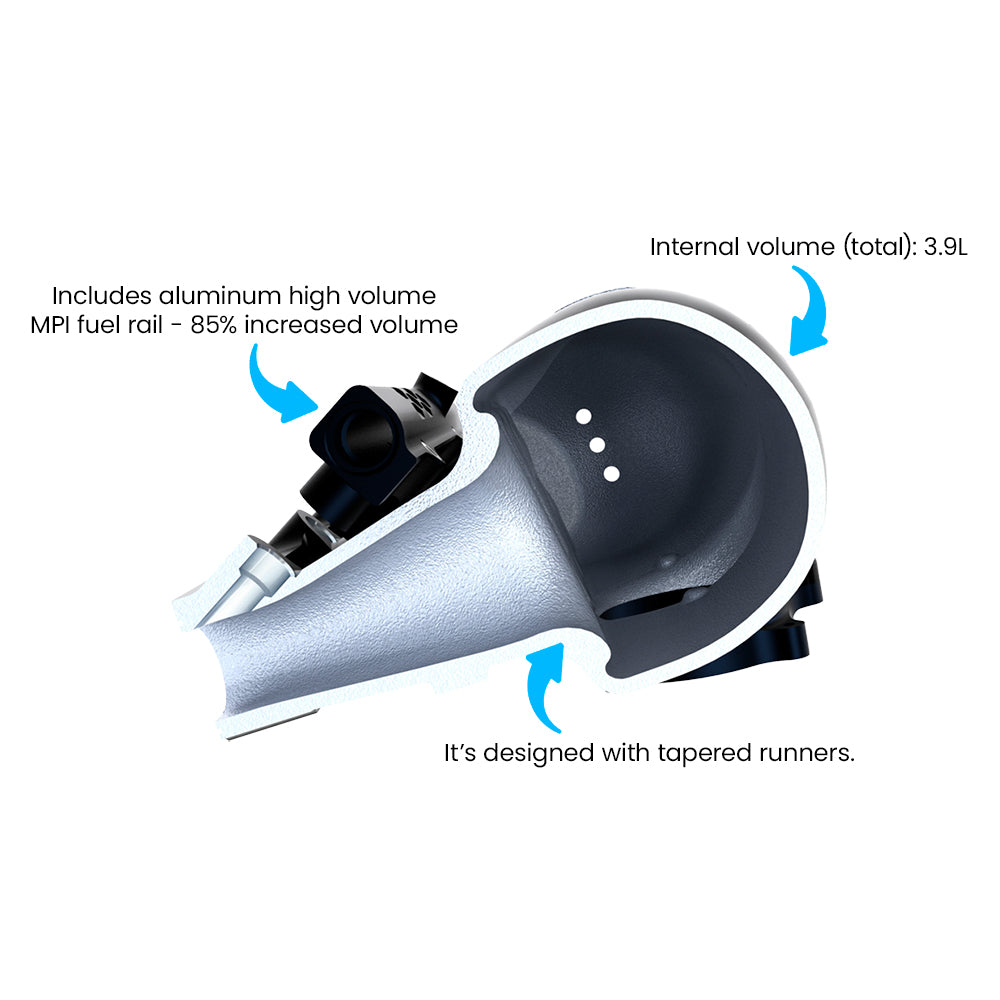

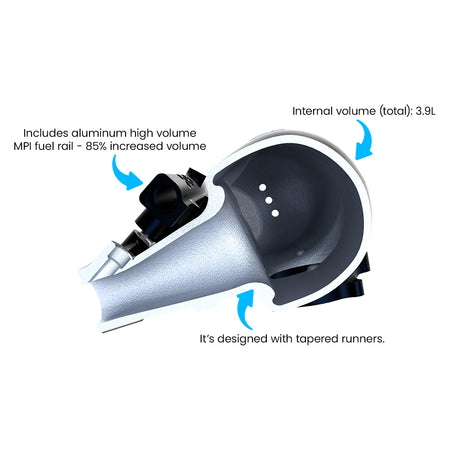

The new TINW13 intake manifold is engineered for maximum efficiency, featuring a significantly larger volume compared to the OEM part ¢â‚¬ a 3.0L plenum and a total of 3.9L including the runners.

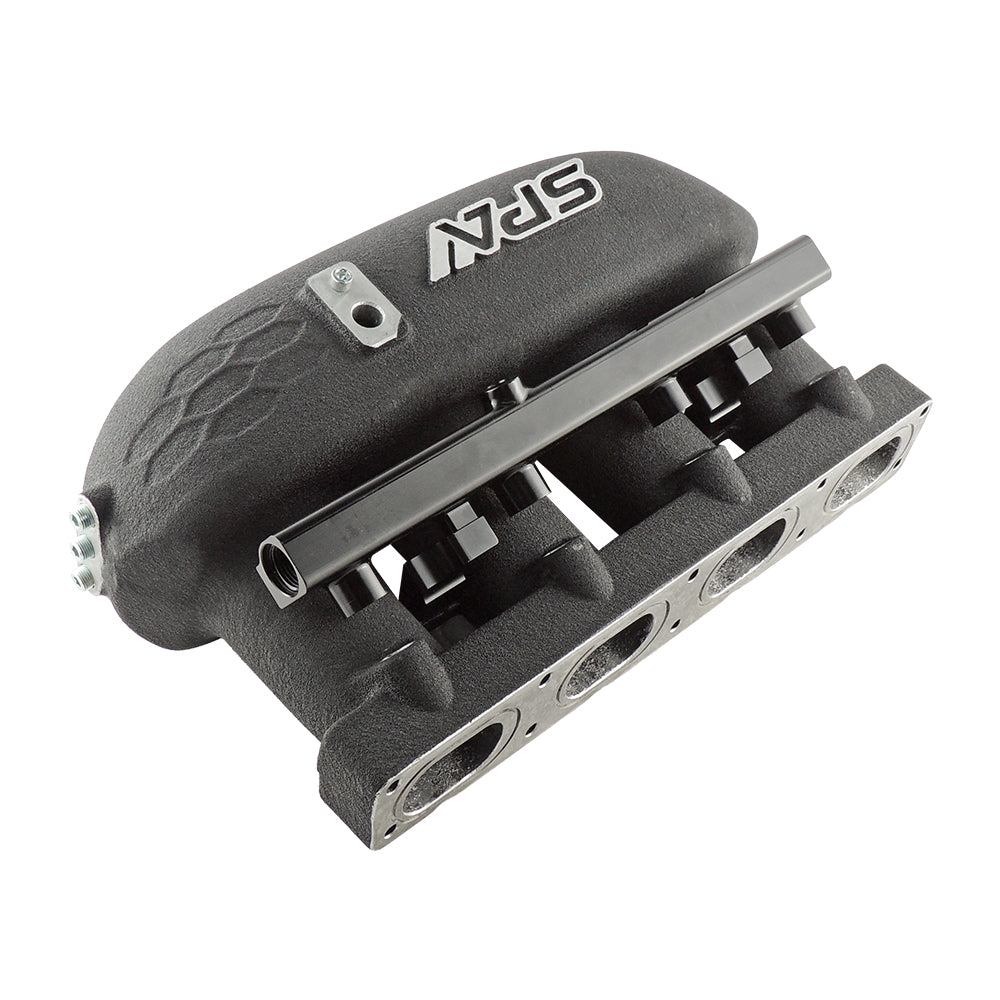

It¢â‚¬s designed with tapered runners to increase airflow speed and includes an aluminum high volume MPI fuel rail - 85% increased volume -, making it ideal for high-horsepower builds with minimal modifications.
Constructed from high-quality cast aluminum, it offers superior strength and durability, and the black wrinkle finish adds both protection and a sleek, performance-oriented look.

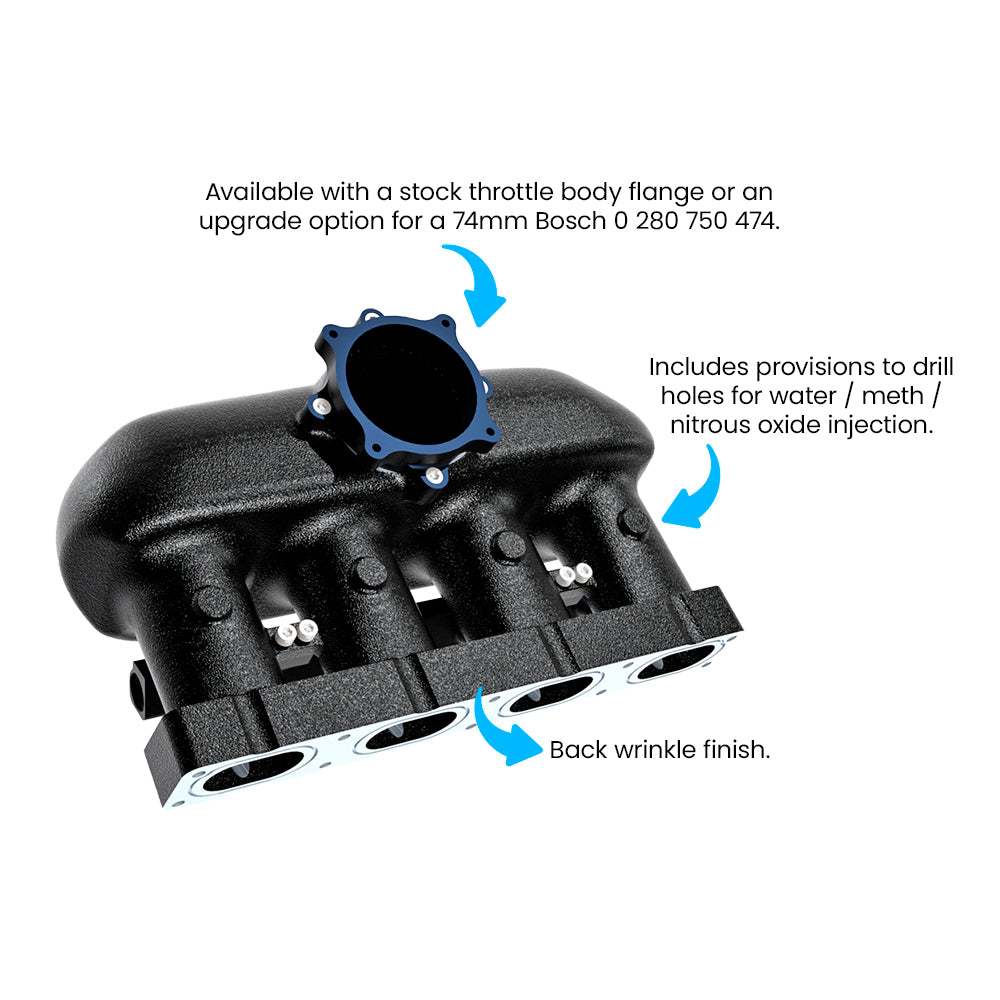

Includes provisions to drill holes for water / meth / nitrous oxide injection.

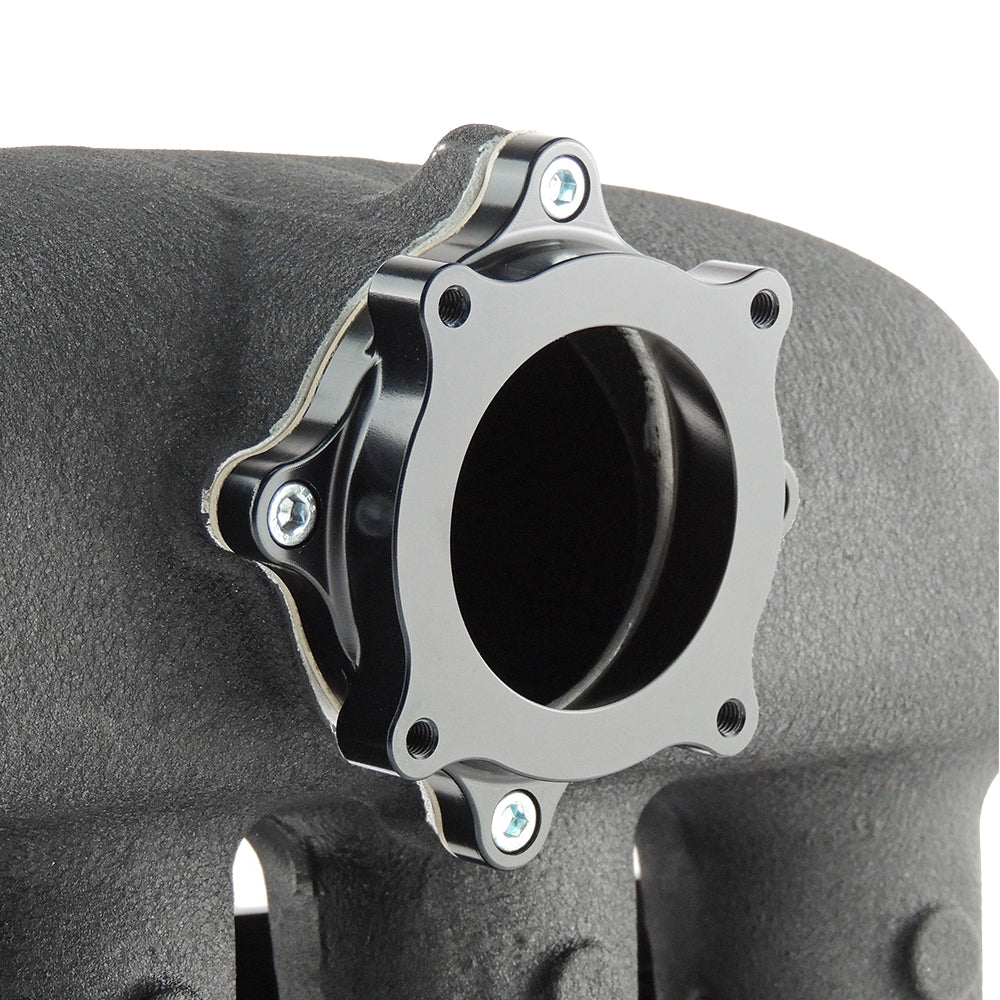

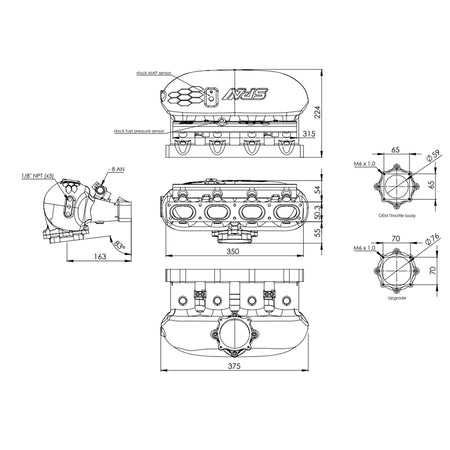

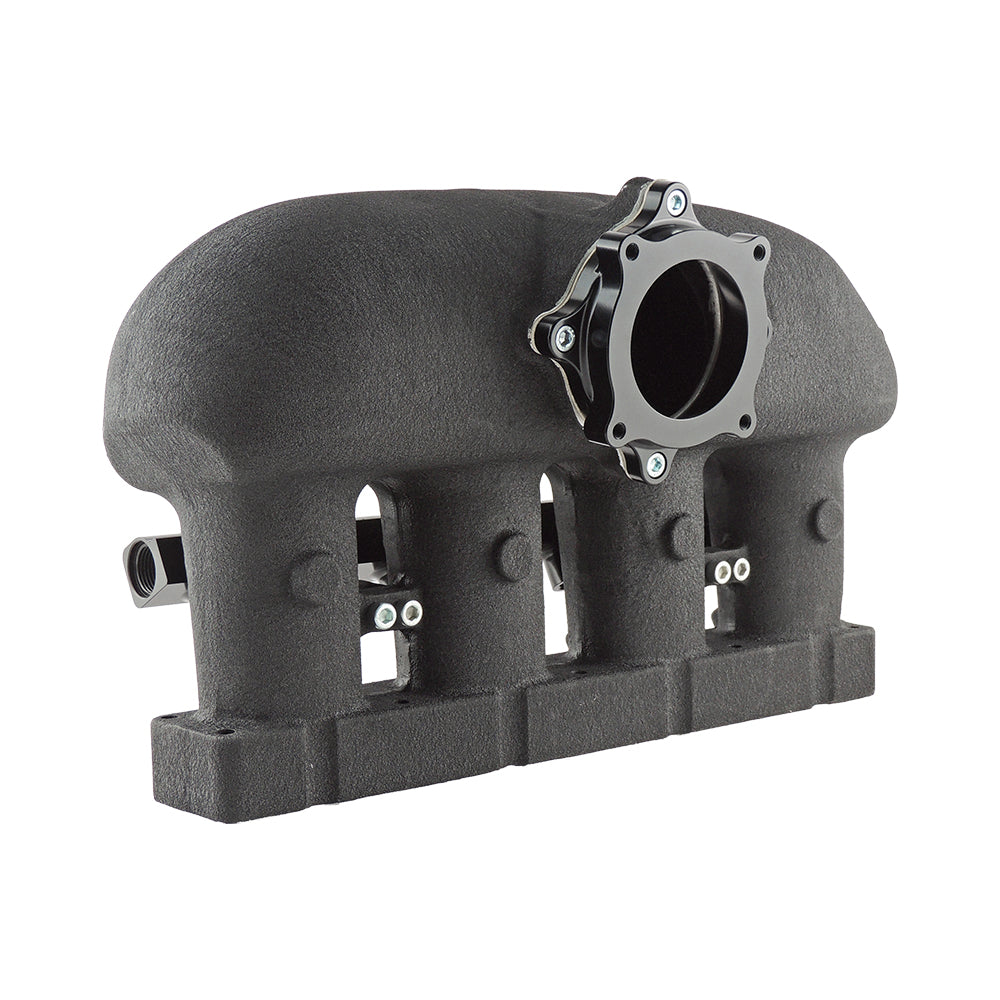

Available with a stock throttle body flange or an upgrade option for a 74mm Bosch 0 280 750 474 60% increased flow area.

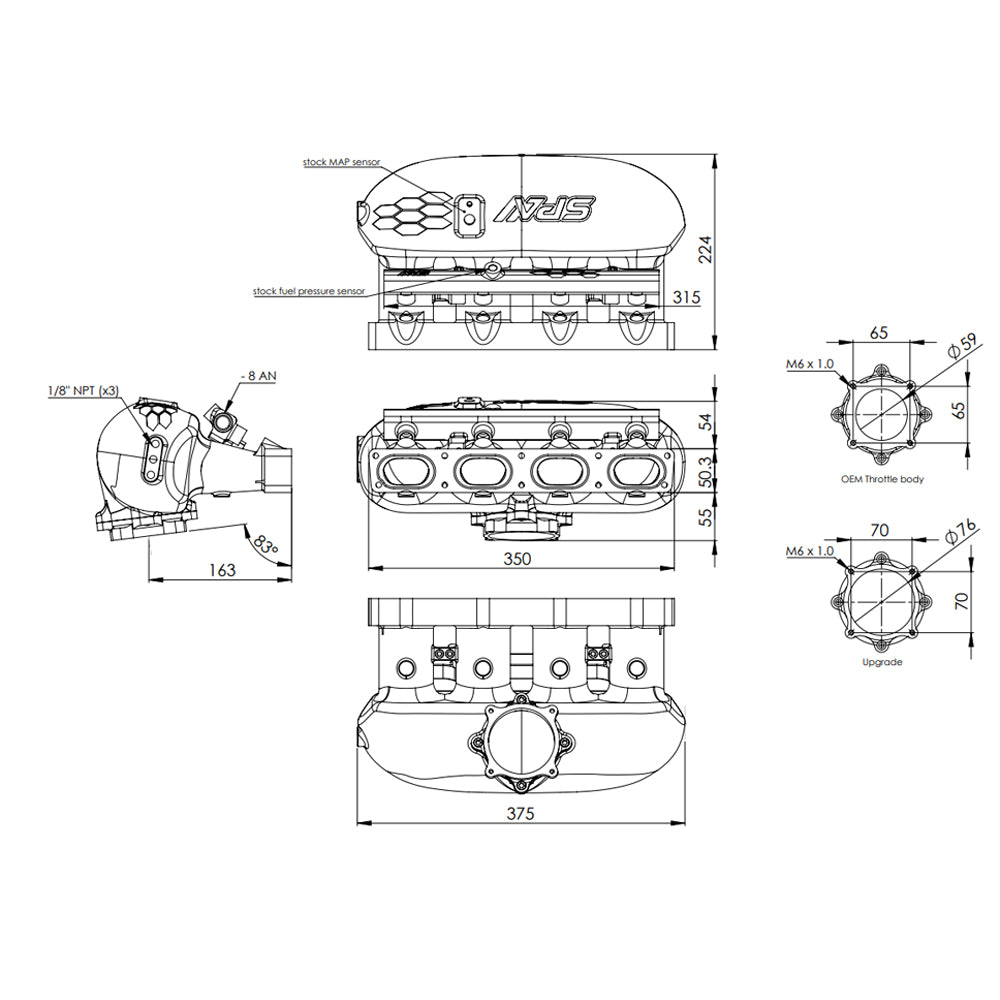

Application: VW / Audi EA888 3rd gen (with MPI fuel rail)
Number of injectors: 4

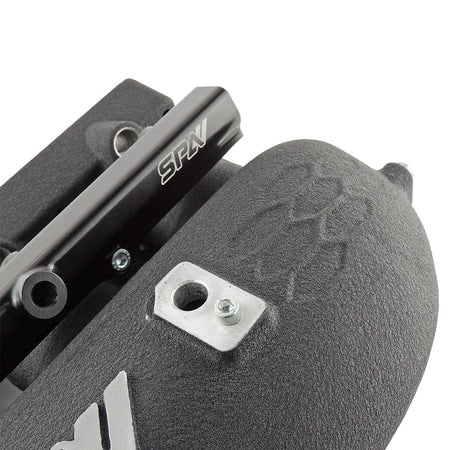

Fuel rail: anodized aluminum,‚ high volume, -8AN inlet/outlet (include port for stock pressure sensor)
Injectors compatible: OEM or same dimensions
Throttle body position: bottom (OEM)
Throttle body bolt holes pattern: OEM
Max pressure capacity: 10bar (145psi)
Internal volume (total): 3.9L
Material: cast aluminum
Ports: stock MAP sensor, 1/8¢â‚¬ NPT (3x)
________________________________________________________________________________________
VW/AUDI EA888 GEN3 INTAKE MANIFOLD THERMAL PTFE SPACER
This product drastically reduces heat transfer from the cylinder head to the intake manifold, ensuring that the engine receives cooler air improving performance and engine safety.
Material: PTFE (Teflon)
Thickness: 6 mm
Temperature Resistance: Up to 260 °C (500 °F)

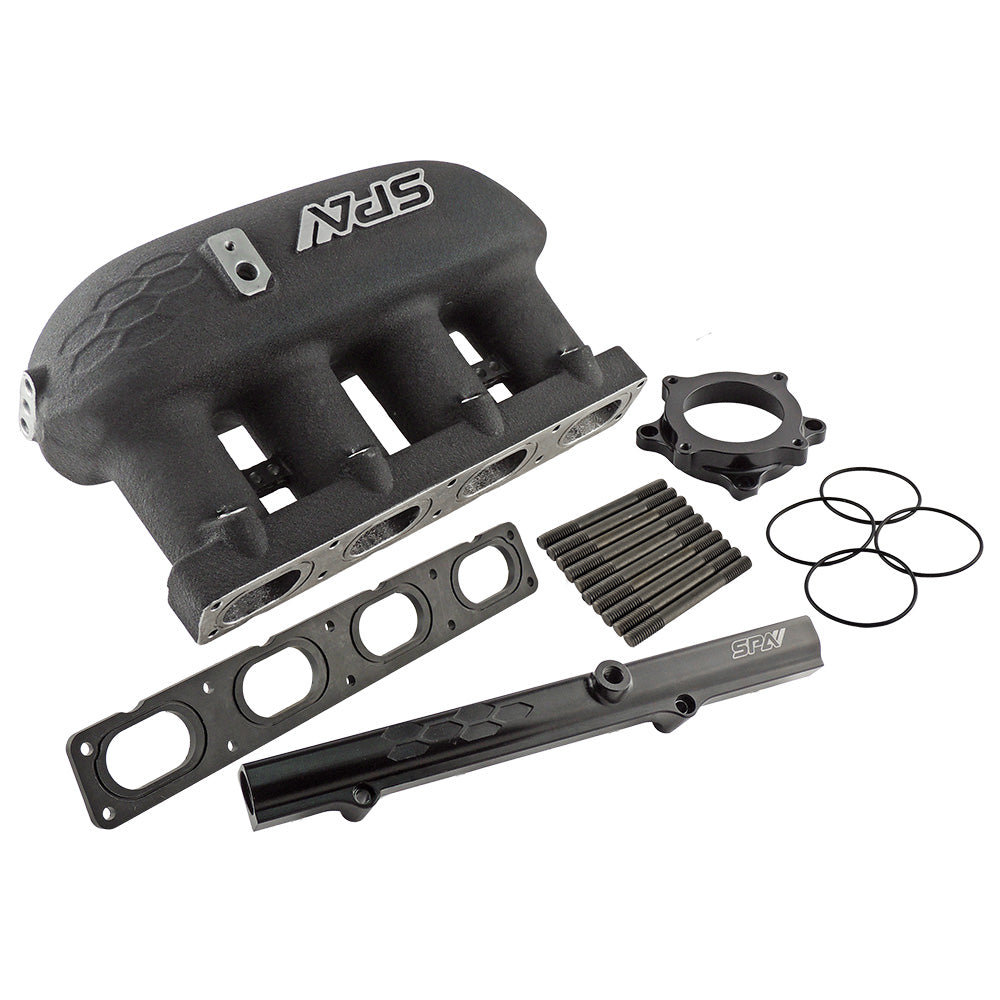

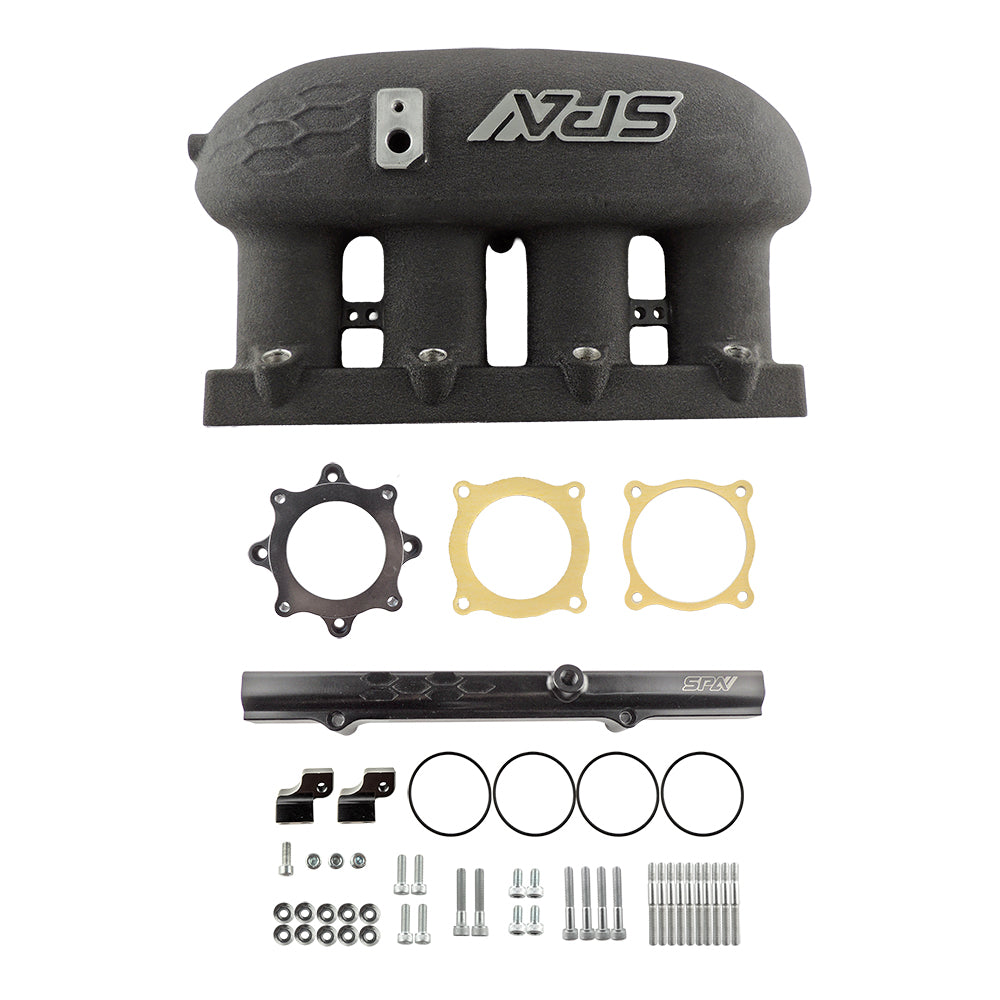

Includes:
4 sealing O-rings
4 studs
4 nuts
