VW GOLF R32 / VR6 24V T3 TURBO MANIFOLD + 0.143" 3.65MM DECOMPRESSION MLS HEAD GASKET
Usually ships within 24 hours
Regular price
$349.90

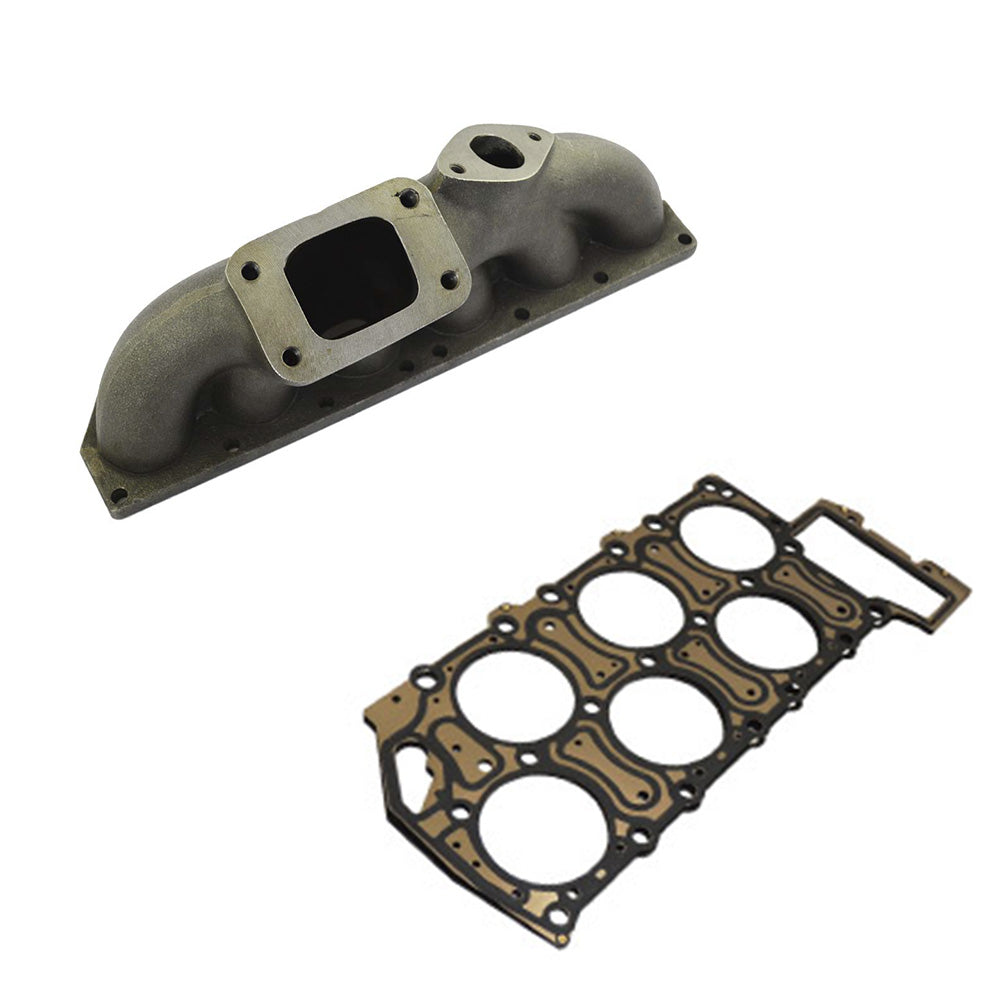

VW GOLF R32 / VR6 24V T3 TURBO MANIFOLD
- The TMW32 manifold is a GGG40 cast manifold, with a T3 turbocharger Flange; manifold accepts 2 bolt 38mm wastegates.
- The application is VW R32 engines.
-
Turbo flange threads: M10x1.5
Wastegate flange (if applicable) threads: M8x1.25
VW VR6 24v R32 0.143" 3.65mm decompression MLS head gasket
- NEW Compression reduction VW / Audi R32 / Cayenne NEW.
- Special cylinder head gasket for turbo conversion on the R32.
- With this special R32 Turbo multilayer metal cylinder head gasket.
- The compression reduction is already integrated in the seal.
- (Ground and coated).
- Total thickness: 3.65mm.
- Will accept pistons up to 84.70mm overbored sized, can be used with smaller bores with no problem too.
- Compression ratio NEW: 8.6: 1.
- Manufacturer: SPA TURBO.
- Engine Code: AYT, AZZ, AXJ, AYT, BDL, BKJ, BKK, BML, BMV, BMX, BRK, BDB, BMJ, BHE, BKL, BRK, BFH, BUB, CBRA, BRJ, M02.2Y, CFLA
- Vehicles: VW EOS, Audi A3, Cayenne, Audi TT, Phaeton, Golf R32, Transporter
- Attention: only for R32 with turbo or compressor with performance increase!
- You save yourself the purchase of 2 cylinder head gaskets and an intermediate plate!
- Metal seals are characterized by a very long service life!
- Comparable with OE numbers Comparable to manufacturer numbers
VW: 022 103 383 K
VW: 022 103 383 M
Audi: 022 103 383 K
Audi: 022 103 383 M
Seat: 022 103 383 K
Seat: 022 103 383 M
Skoda: 022 103 383 K
Skoda: 022 103 383 M
Porsche: 955.104.38300
Elring: 807.574
Reinz: 61-36090-00
FAI Autoparts: HS1412
SPA Turbo has one of the widest selections of turbo manifolds in the world, including hard to find applications. From log style to top mount equal runners manifolds, we stock them. We have been providing quality performance components since 1990.
