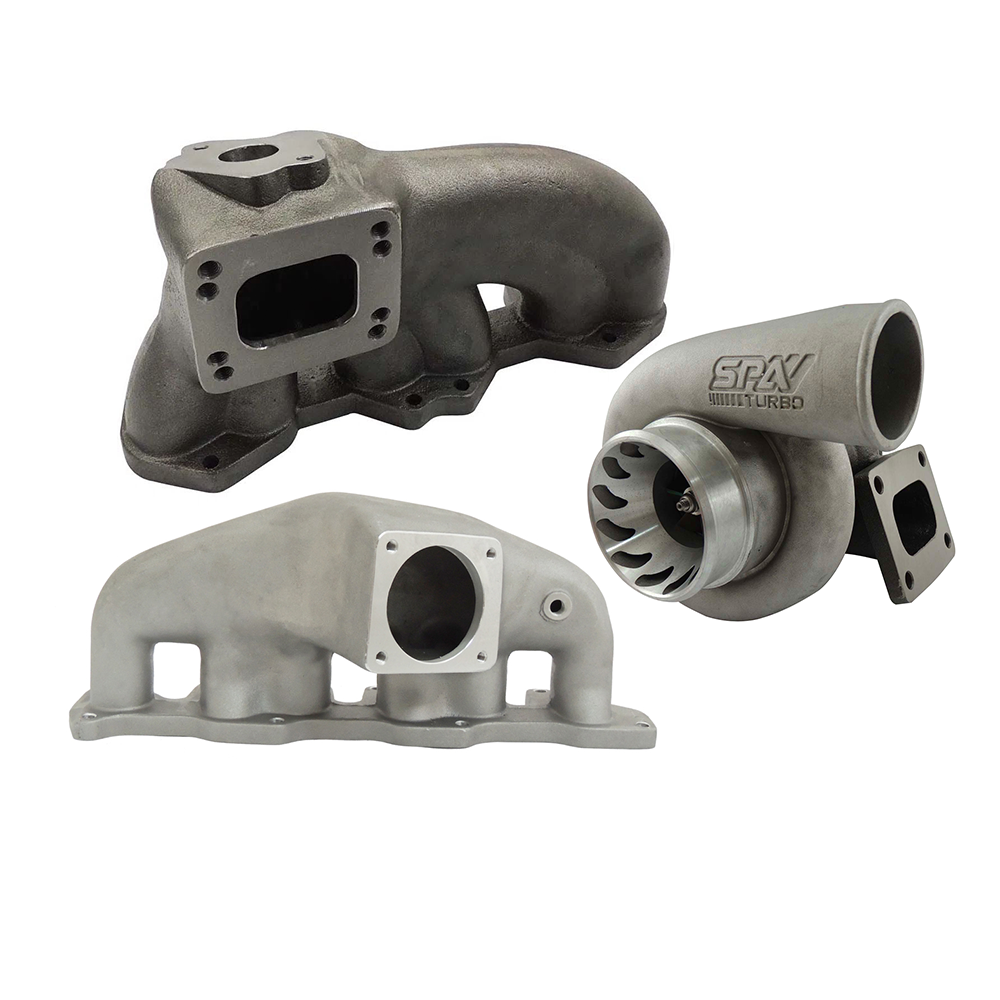

VW VR6 12v Turbo manifold - T3/T4 + OBDI Short Runner Induction Intake Manifold + SPA 700 Turbocharger - A/R .68 T4

VW VR6 12v Turbo manifold - T3/T4

• TMW03 will fit RHD and LHD cars, it accepts 2 bolt wastegate valves.
• The Turbo Manifold can accommodate either a T3 or a T4 Turbo Flange
• We provide a SRI for this engine, TIN2800.
• Our SDEE01 cast 2.5" downpipe matches perfectly with this manifold.
• SPA Turbo exhaust manifolds are precision CNC machined from high quality ASTM 536 60-40-18 cast iron.
• These are ductile spheroidal (aka Nodular iron) castings, where the graphite components are spheroidal in shape and essentially free of other forms of graphite.
• Specifically designed for pressurized components and high operating temperatures.
• In other words, the ideal material for turbo exhaust manifolds; - also used for high quality cylinder liners.
• Manufactured exclusively by SPA Turbo and not available anywhere else.
• In addition, SPA Turbo offers custom machining services and we welcome proprietary product development orders.
• We would like to think that we offer outstanding customer service, but recognize there's always room for improvement. We appreciate your input and questions.
• Turbo flange threads: M10x1.5
  Wastegate flange (if applicable) threads: M8x1.25

SPA Turbo has one of the widest selections of turbo manifolds in the world, including hard to find applications. From log style to top mount equal runners manifolds, we make them and keep them in stock. We have been providing quality performance components since 1990.

VW VR6 12V OBDI Short Runner Induction Intake Manifold

• The SPA Turbo VW VR6 high flow intake manifold is made of cast aluminum and is made to replace your stock OEM manifold to provide you with more air flow for your high horsepower application.
• The TIN2800 manifold really helps to clean up the VR6 engine bay while also adding performance.
• Intake air temperature and vacuum provisions are incorporated into the design as well.
• Factory or aftermarket fuel rail fitment.
• With OBDI Throttle body flange. For use with standard OBD2 trottle body (OBDII) see SKU LGADVW01.
• Throttle cable bracket and hose length adjustments required. Additional modifications may also be required to install this intake manifold.
• Must be used with MK3 alternator and bracket.

SPA 700 Turbocharger - A/R .68 T4

• T4 turbocharger 2.0L - 4.5L displacement
• 250 - 550 hp range
• Journal bearings
• Compressor wheel dimensions: 56.00 mm x 73.50 mm / 58 Trim
• Turbine wheel dimensions 64.00 mm x 80.60 mm / 63 Trim
• Water / oil cooled
• 360 degree thrust bearings
• Compressor housing 4" inlet, 3" outlet - anti-surge housing.
