VW Jetta / Golf MK5 2.5L 5 cylinder 20V 07K T3 top mount turbo manifold + Intake manifold

In stock
No reviews
Usually ships within 24 hours
$999.90
Product details
  • Vendor SPA PERFORMANCE
  • SKU CMBTINW11TMW23

Do you have questions about this product?

Ask an expert!

Description Shipping information Reviews

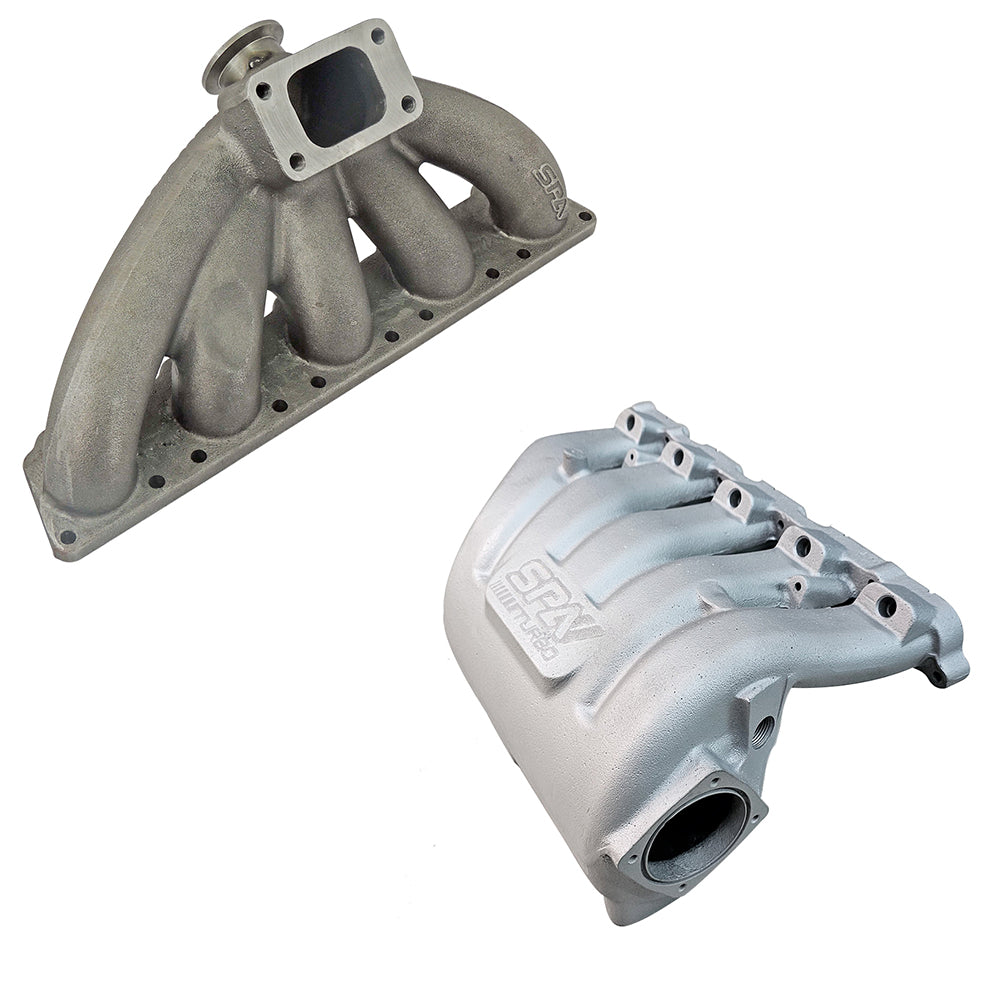

VW JETTA / GOLF MK5 2.5L 5 CYLINDER 20V 07K T3 TOP MOUNT TURBO MANIFOLD WASTEGATE V-BAND


SPA Performance brings another great news for VW 5 cylinder 2.5L lovers! It has better flow compared to the TMW17 thanks to studies by our engineering sector and also accommodates large turbines such as .70, HX40, GT35 and similar and uses a standard 44/45mm V-Band wastegate valve.

  • Application: Jetta / Golf MK5 (for other adaptations. consult dimensions and check compatibility with your Project). For Jetta and Golf MK4 (swap) click here or search for TMW23B.


  • Turbine position: Top mount


  • Turbine housing flange: Standard T3 (hot housing for left side - driver)


  • Wastegate flange: V-Band 44/45mm


  • Internal diameter runner: 41.5mm


  • Material: Cast iron

  • Turbo flange threads: M10x1.5
    Wastegate flange (if applicable) threads: M8x1.25

VW 2.5L 5 CYLINDER 20V 07K CAST ALUMINUM INTAKE MANIFOLD

The new intake manifold for the VW 2.5L 5 cylinder engine is the newest release from SPA Turbo! t's 100% cast aluminum, with no welds, allowing you to increase the boost without fear of sending the stock intake manifold flying

  • Number of injectors: 5
  • Fuel rail: Stock
  • Fuel rail inlet/outlet: Stock
  • Throttle body bolt hole pattern: Stock
  • Max working capacity: 10bar (145psi)
  • Internal volume: 6,2L
  • Material: Cast aluminum
  • Compatible with hydraulic and electric steering.
  • Includes:
    Fitting for stock breather hose (-10AN).
    2X 1/8" NPT block off (if vacuum ports are not used).
    Oil dipstick holder.
  • Compatible with original MAP sensor - ref. 0261230095 (not included).
  • Not compatible with the original plastic engine cover.
